88
E
HULL
HOOD
REMOTE CONTROL CABLES AND
SPEED SENSOR LEAD

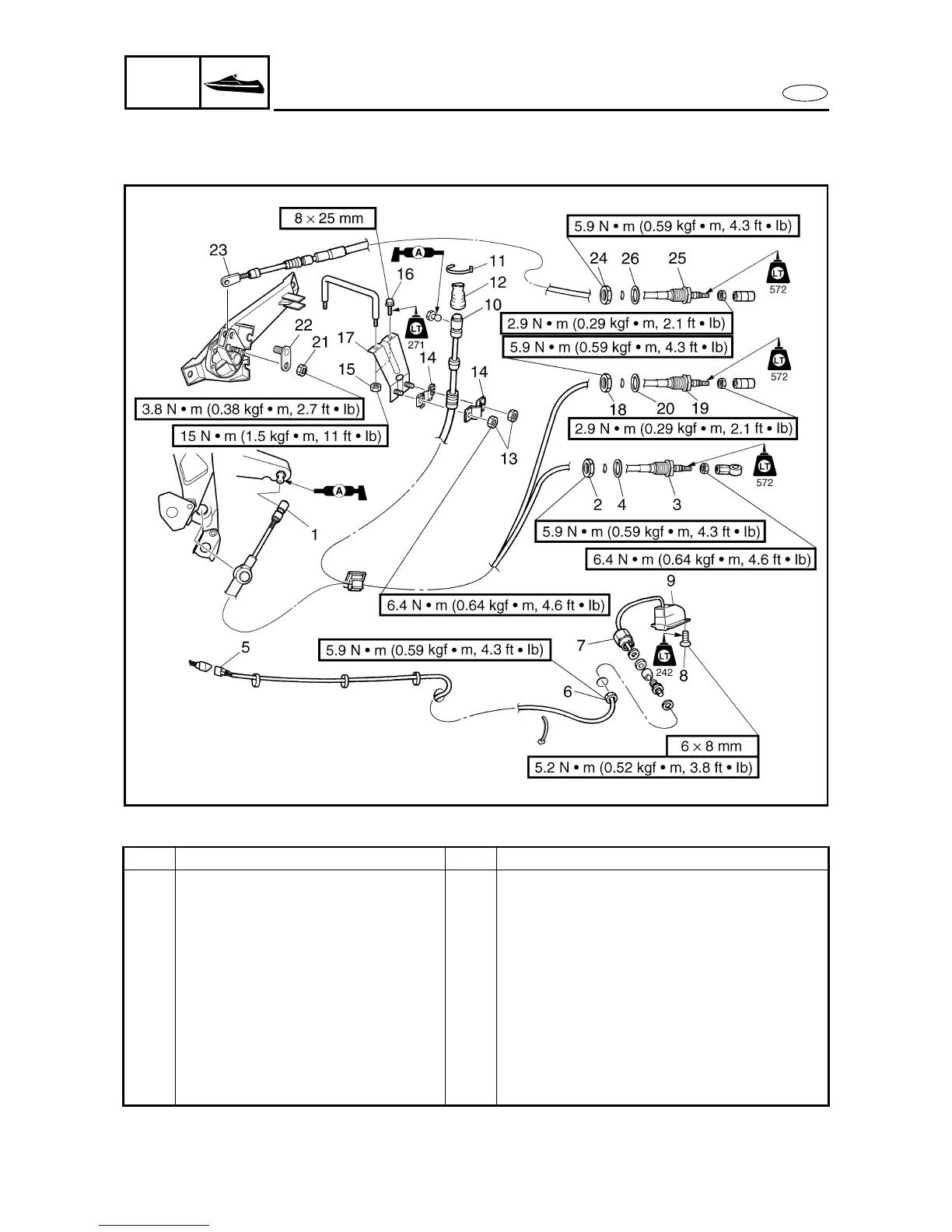

REMOTE CONTROL CABLES AND SPEED SENSOR LEAD
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty Service points
REMOTE CONTROL CABLES
AND SPEED SENSOR LEAD
REMOVAL
Follow the left “Step” for removal.
Service lid 1 Refer to “FRONT HOOD”.
Front seat assembly Refer to “SEATS AND HAND GRIP”.
1 Steering cable end 1
2Nut 1
3 Steering cable 1
4 Seal 1
5 Speed sensor coupler 1
6Nut 1
To Next Page
