HULL
HOOD
REMOTE CONTROL CABLES AND
SPEED SENSOR LEAD

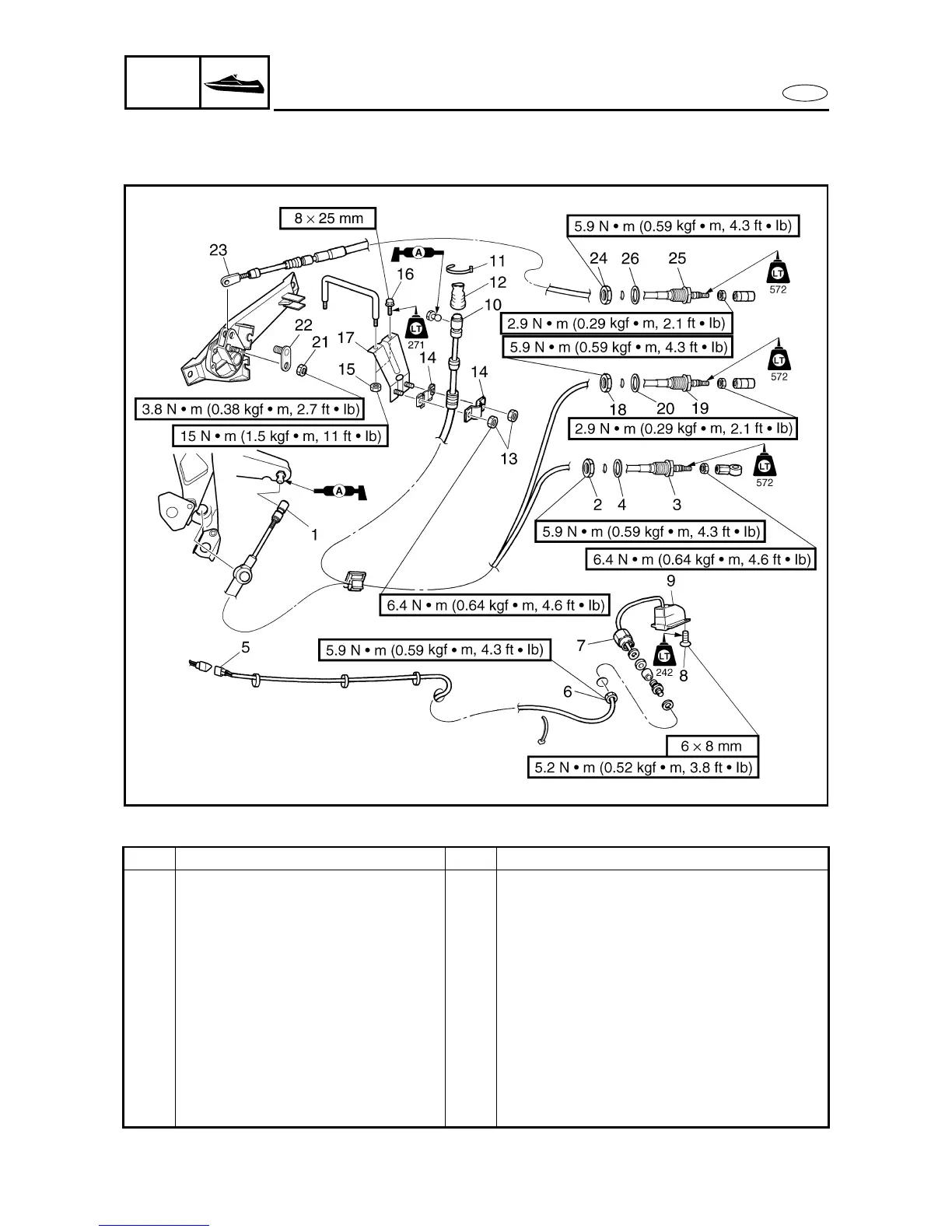

EXPLODED DIAGRAM
Step
Procedure/Part name
Q’ty Service points
7Cap 1
8Screw 4
9 Speed sensor
Speed sensor and water
temperature sensor
1
1
FX/FX Cruiser/FX High Output
FX Cruiser High Output
10 Shift cable end 1
11 Plastic tie 1
12 Grommet 1
13 Nut 2
14 Shift cable holder 2
15 Nut 2
16 Bolt 1
