96
E
HULL
HOOD

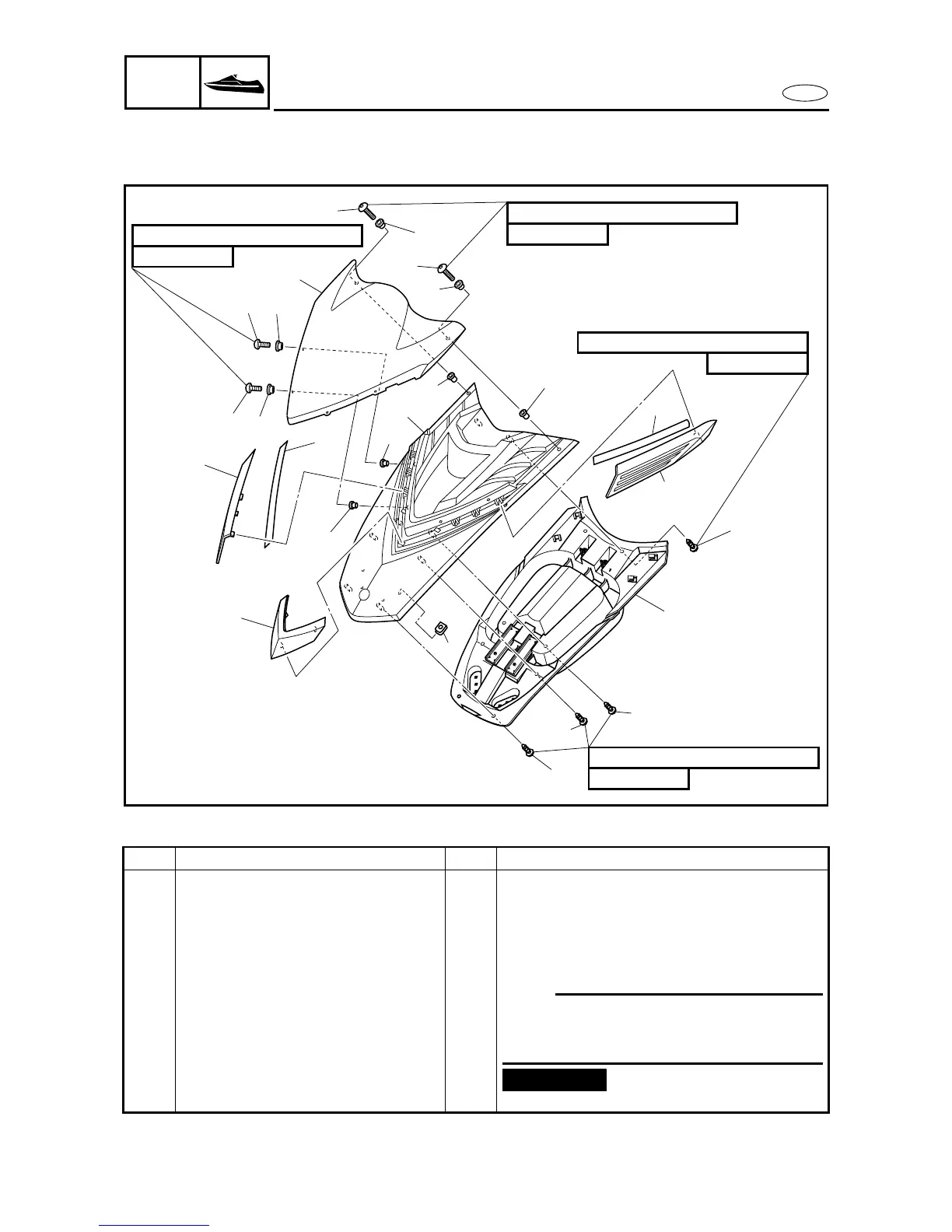

FRONT HOOD
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty Service points
FRONT HOOD DISASSEMBLY
Follow the left “Step” for disassembly.
1Screw 8
2 Front hood 1 1
3 Front hood 2 1
4Nut 4
5 Center ornament 1
NOTE:
• Be careful not to scratch the ornaments.
• Install the center ornament after installing
the left and right ornaments.
6 Left ornament 1
7 Right ornament 1
8 Double-sided tape 2
9Bolt 6
2
1
4
9
5 × 16 mm
2.2 N • m (0.22 kgf • m, 1.6 ft • Ib)
5 × 16 mm
2.2 N • m (0.22 kgf • m, 1.6 ft • Ib)
5 × 17 mm
1.1 N • m (0.11 kgf • m, 0.8 ft • Ib)
10
9
10
5 × 17 mm
1.1 N • m (0.11 kgf • m, 0.8 ft • Ib)
9
10
9
10
1
1
1
7
8
12
12
5
12
12
3
6
8
11
Not reusable
