102
E
HULL
HOOD
MIRROR

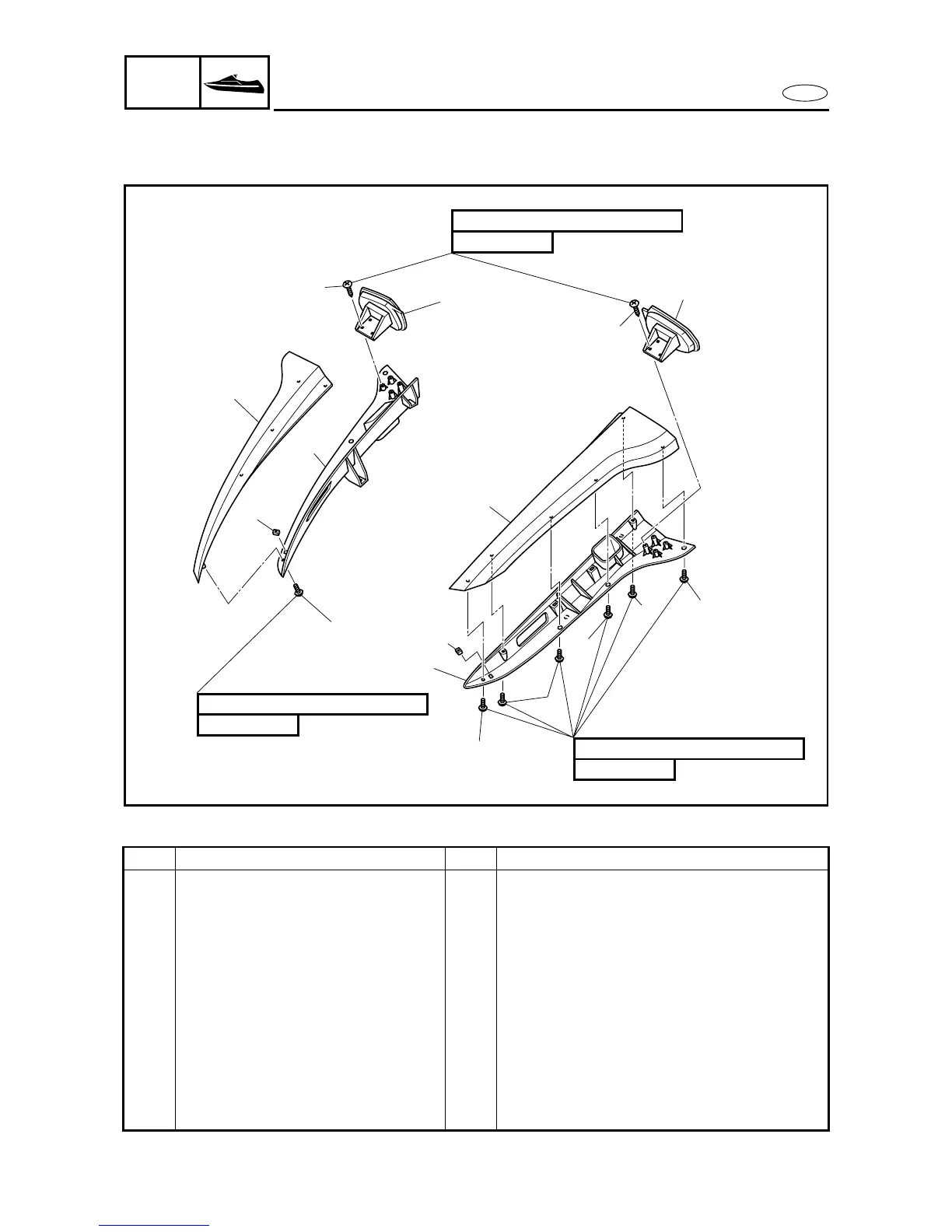

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty Service points
MIRROR DISASSEMBLY
Follow the left “Step” for disassembly.
1Screw 12
2 Left mirror upper cover 1
3Screw 8
4 Left mirror 1
5Nut 2
6 Left mirror lower cover 1
7 Right mirror upper cover 1
8 Right mirror 1
9 Right mirror lower cover 1
Reverse the disassembly steps for
assembly.
1
1
1
2
3
4
5
6
7
3
8
9
5
1
5 × 15 mm
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5 × 15 mm
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5 × 15 mm
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
1
1
