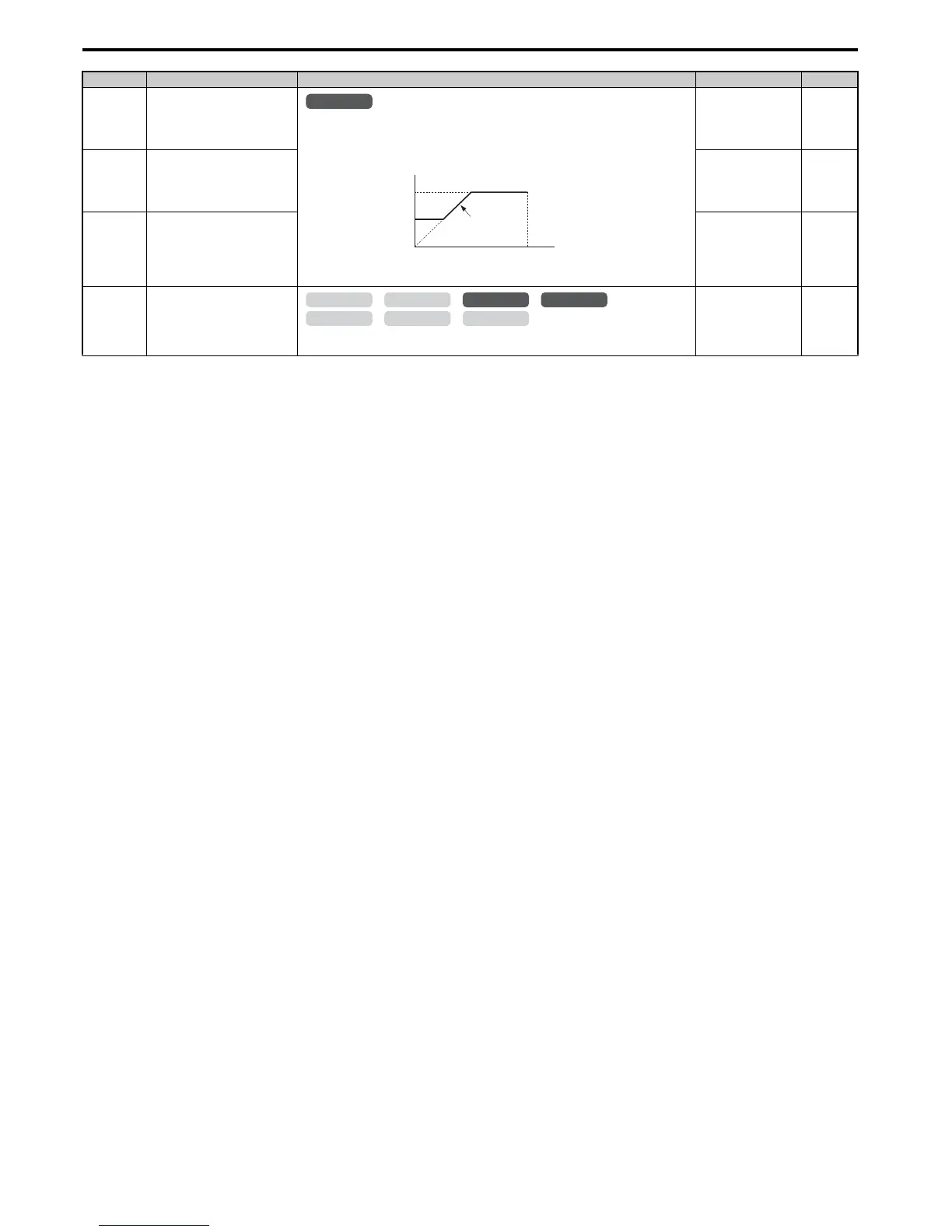

B.3 Parameter Table
410 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual
C6-03
(225H)
Carrier Frequency Upper Limit
Note: C6-04 and C6-05 are available only in V/f and V/f w/PG control modes.
Determines the upper and lower limits for the carrier frequency.
In OLV, C6-03 determines the upper limit of the carrier frequency.
Default:
<13>
Min: 1.0 kHz
Max: 15.0 kHz
178
C6-04
(226H)
Carrier Frequency Lower Limit
Default:
<13>
Min: 1.0 kHz
Max: 15.0 kHz
178
C6-05
(227H)
Carrier Frequency Proportional
Gain
Default:
<13>
Min: 0
Max: 99
178
C6-09
(22BH)
Carrier Frequency during
Rotational Auto-Tuning
0: Carrier Frequency = 5 kHz
1: Setting value for C6-03
Default: 0
Min: 0
Max: 1
179
<4> Default setting is dependent on the control mode (A1-02), the drive model (o2-04), and the Drive Duty (C6-01).
<13> Default setting value is dependent on the carrier frequency selection (C6-02).
No.(Addr.) Name Description Setting Page
All Modes
common_
TMonly
Carrier Frequency
E1-04
Max Output
Frequency
Output Frequency
× (C6-05) × K
Output
Frequency
C6-03
C6-04
OLV/PM AOLV/PM
CLV
V/f w/PG
CLV/PM
V/f OLV
common_
TMonly
