10.1 Alarm and Warning Displays
10.1.1 Confirming Alarms and Warnings
10-2
10.1 Alarm and Warning Displays
This section describes how to display alarms and warnings, provides a list of the alarms and
warnings that may occur, and describes the causes of and corrections for them.
10.1.1 Confirming Alarms and Warnings
The ALM indicator will light when an alarm or warning occurs.
You can use the system monitor function of the SigmaWin+ to check for detailed alarm num-
bers and alarm names.

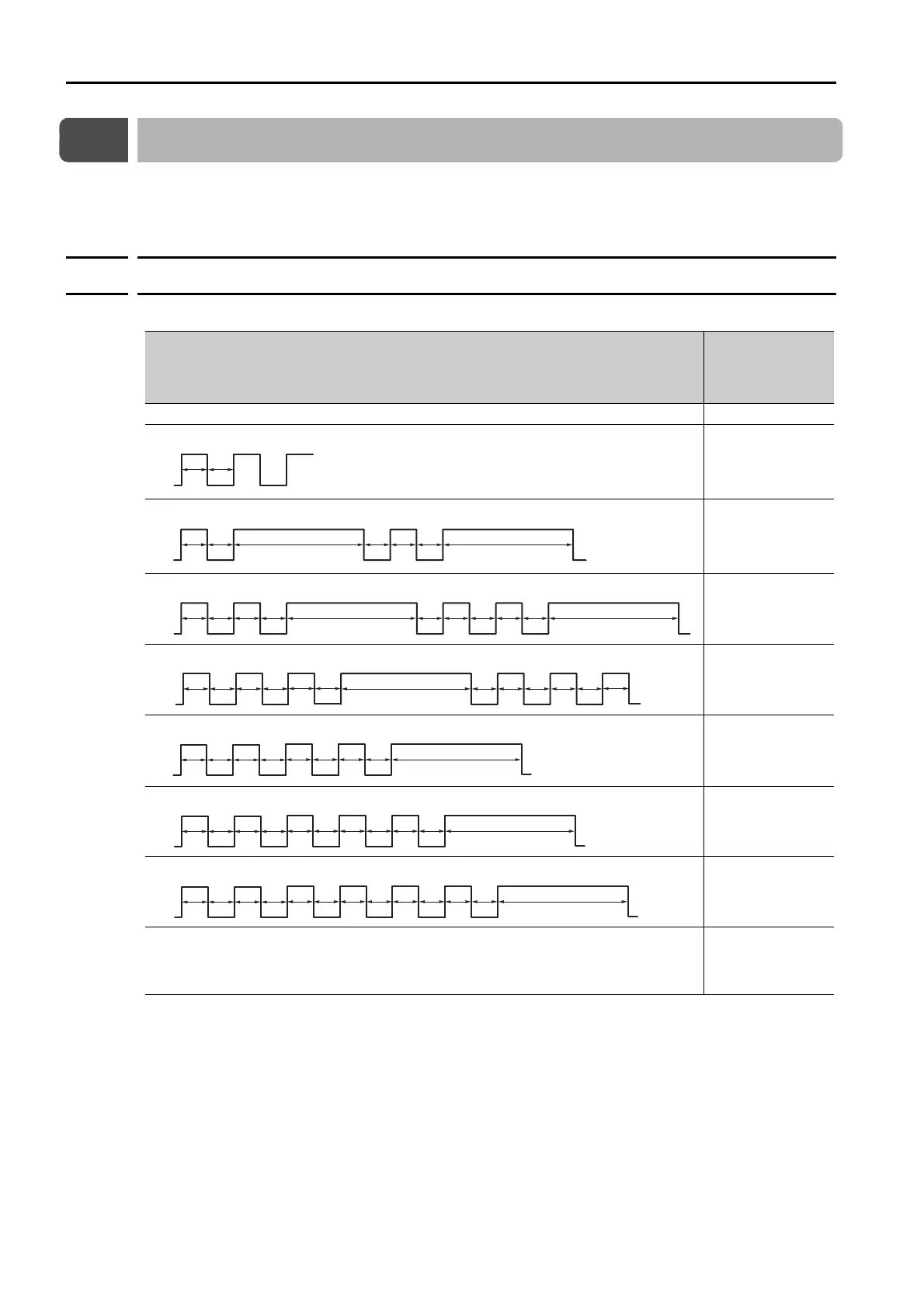

Indicator Lighting/Flashing Pattern
SERVOPACK
Status or Alarm
Number That
Occurred
Not lit. Normal status
Rapid flashing
A.9 or warning
Alternates between flashing 1 time and lighting for 1 s.
A.0
,
A.E

Alternates between flashing 2 times and lighting for 1 s.
A.1

Alternates between flashing 3 times and lighting for 1 s.
A.4

Alternates between flashing 4 times and lighting for 1 s.
A.5,
A.6
,
A.D

Alternates between flashing 5 times and lighting for 1 s.
A.7

Alternates between flashing 6 times and lighting for 1 s.
A.8
,
A.C

Lit.
A system error
(A.B) occurred
or initialization is in
progress.
ON
OFF
0.2 s 0.2 s
1 s
ON
OFF
1 s
0.2 s
0.2 s 0.2 s 0.2 s
0.2 s
ON
OFF
0.2 s 0.2 s 0.2 s 0.2 s
0.2 s 0.2 s 0.2 s 0.2 s 0.2 s
1 s
1 s
ON
OFF
0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s
1 s
ON
OFF
0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 1 s
ON
OFF
0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 1 s
ON
OFF
0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s 0.2 s
1 s
