6.1 Flow of Trial Operation
6-2

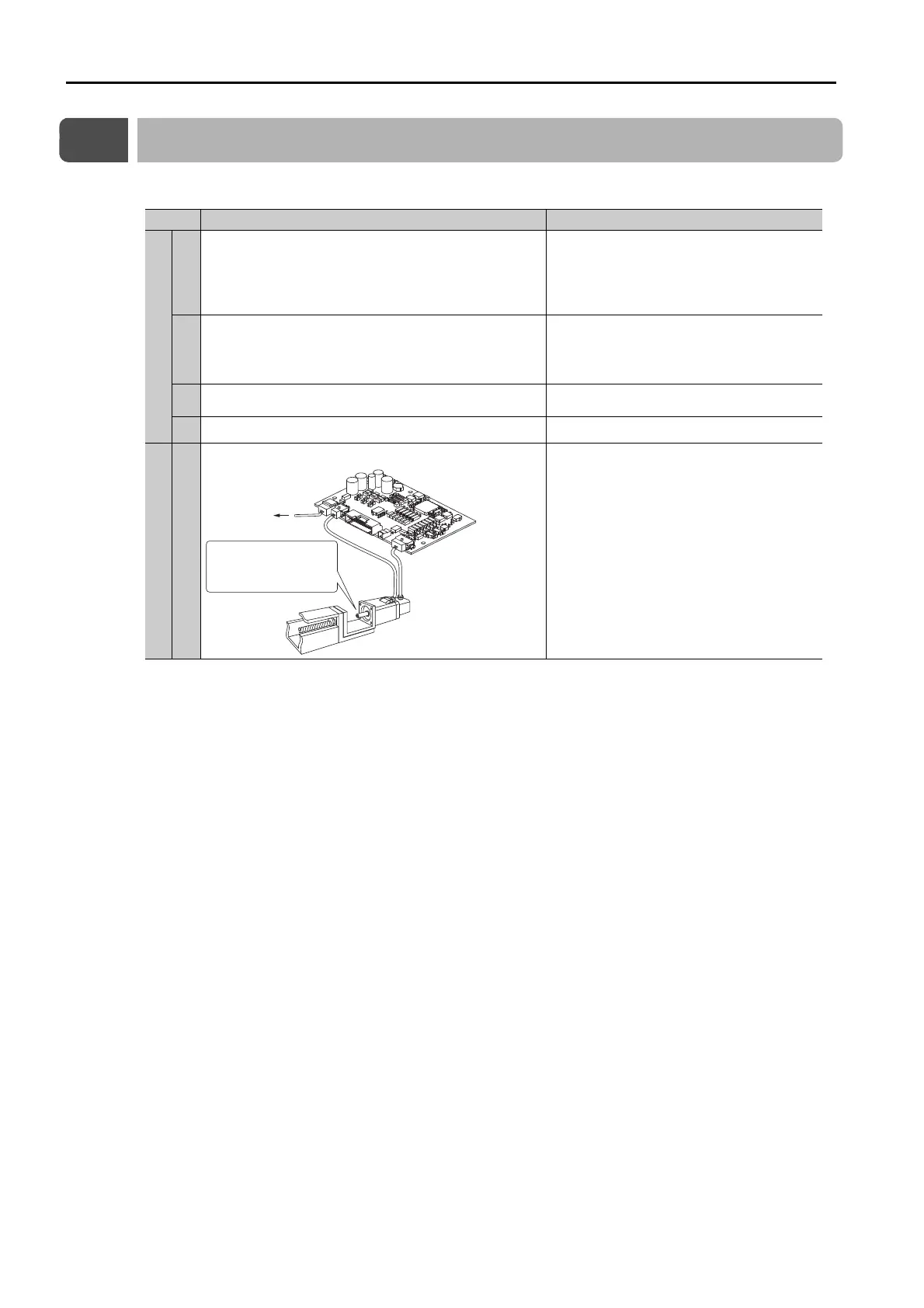

6.1 Flow of Trial Operation
The procedure for trial operation is given below.
Step Meaning Reference
Preparations for Trial Operation
1
Installation
Install the Servomotor and SERVOPACK according to
the installation conditions. First, operation is checked
with no load. Do not connect the Servomotor to the
machine.
Chapter 3 Installation
2
Wiring and Connections
Wire and connect the SERVOPACK. First, Servomo-
tor operation is checked without a load. Do not con-
nect the CN1 connector on the SERVOPACK.
Chapter 4 Wiring and Connections
3 Confirmations before Trial Operation
6.2 Inspections and Confirmations before Trial
Operation on page 6-3
4Power ON −
Trial Operation
5
Trial Operation for the Servomotor without a Load
6.3 Trial Operation for the Servomotor without
a Load on page 6-4
Secure the motor ange
to the machine. Do not
connect the motor shaft
to the load shaft.
To power supply
