YASKAWA E-S Series User Manual

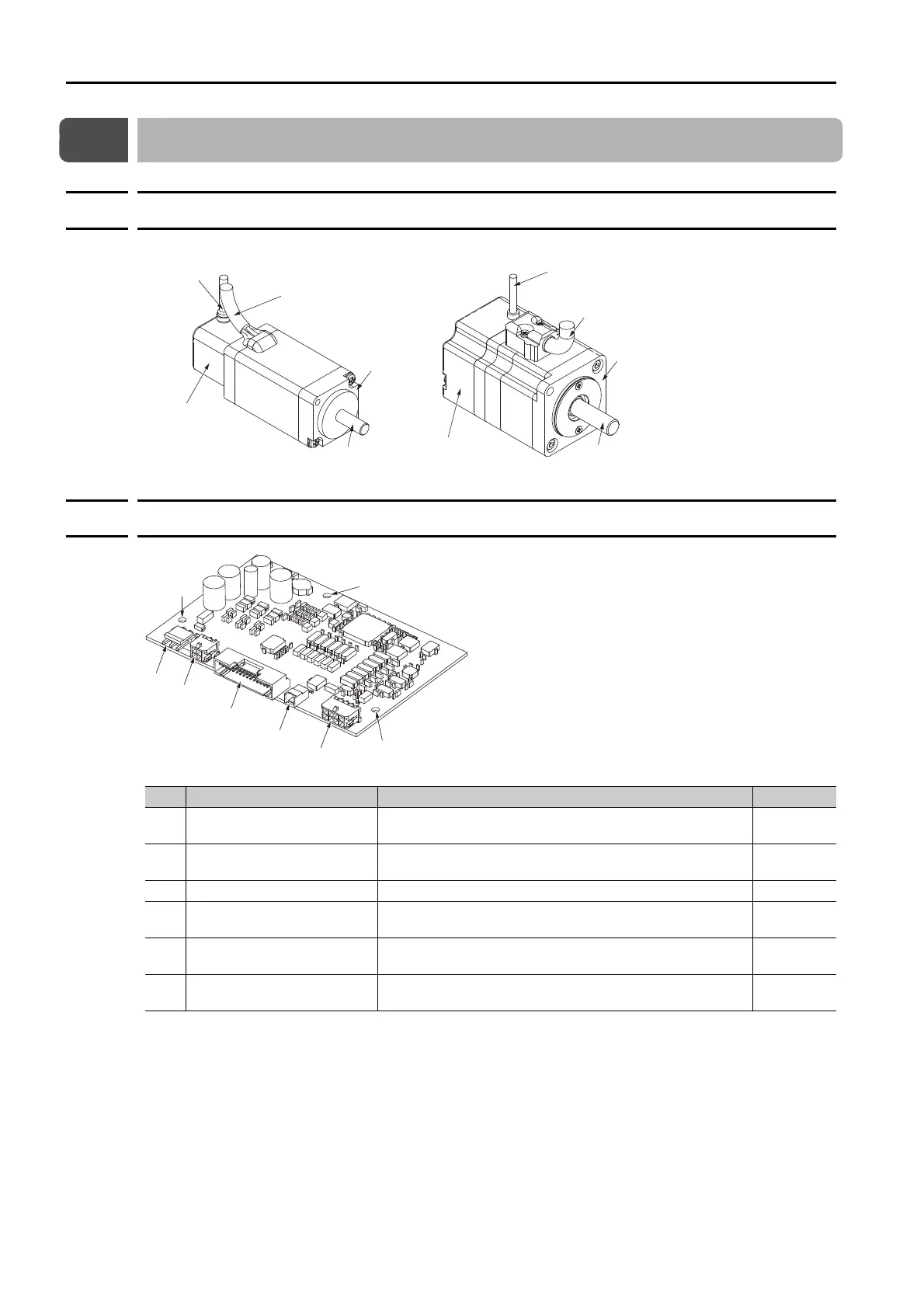

1.3 Part Names
1.3.1 Servomotor Part Names
1-4
1.3 Part Names
1.3.1 Servomotor Part Names
1.3.2 SERVOPACK Part Names
Servomotor
Power Cable
Encoder
Cable
Encoder
Motor
ange
Motor shaft
Servomotor
Power Cable
Encoder
Cable
Encoder
Motor
ange
Motor shaft
No. Name Description Reference

Power Supply Input Connec-
tor (CN3)
This connector is for the power supply input. page 4-8

Servomotor Power Connec-
tor (CN4)
This is the connector for the Servomotor Power Cable. page 4-12
 I/O Signal Connector (CN1) This is the connector for the I/O signals. page 4-14
 Computer Connector (CN5)
This is the connector for the computer. Connect it to a
computer to use the SigmaWin+ Engineering Tool.
page 4-20
 Encoder Connector (CN2)
This is the connector for the encoder mounted on the Ser-
vomotor.
page 4-13
 Mounting Holes
The mounting holes are mounted on studs to secure the
SERVOPACK to the machine.
page 3-10








