YASKAWA E-S Series User Manual

2.5 Selecting Cables
2.5.3 User-Assembled Wiring Materials for Power Supply Input Cable
2-15
2
Selection
2.5.3 User-Assembled Wiring Materials for Power Supply
Input Cable
Connectors and Wiring Materials
 Selection Table
Note: Refer to the following section for wire specifications.
2.6.3 SERVOPACK Power Supply and Servomotor Power Cable Wires on page 2-20

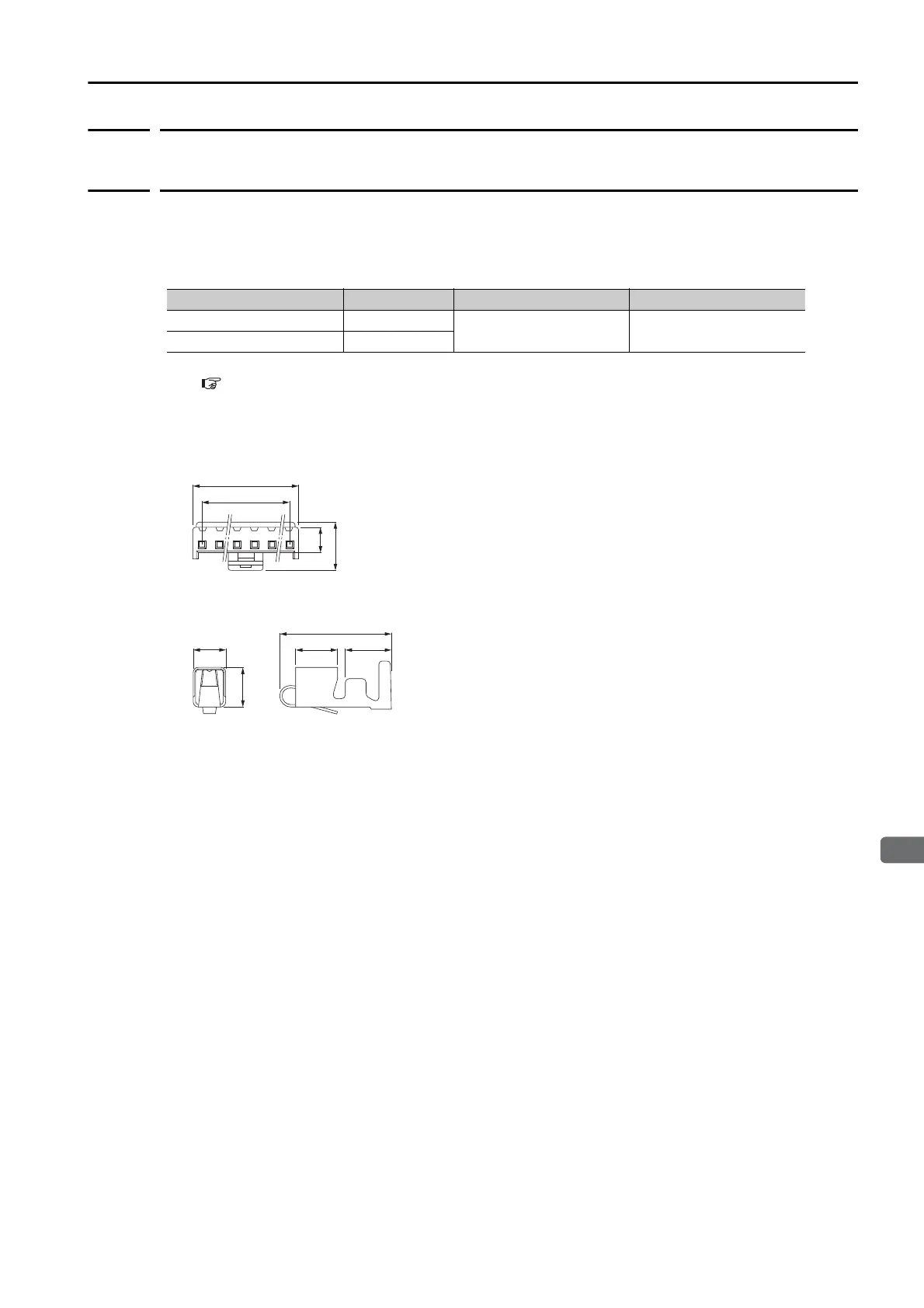

 Dimensional Drawings
 Housing
 Contacts
Name Order Number Manufacturer Applicable Wire Sizes
Housing VHR-3N
J.S.T. Mfg. Co., Ltd.
AWG20 (0.52 mm
2
) min.
Contacts SVH-21T-P1.1
11.82
7.92
5.7
10.5
Unit: mm
10.6
4 4.2
3
3.8
Unit: mm
