1.3 Part Names
1.3.3 Status Indicators
1
Basic Information
1-5
1.3.3 Status Indicators

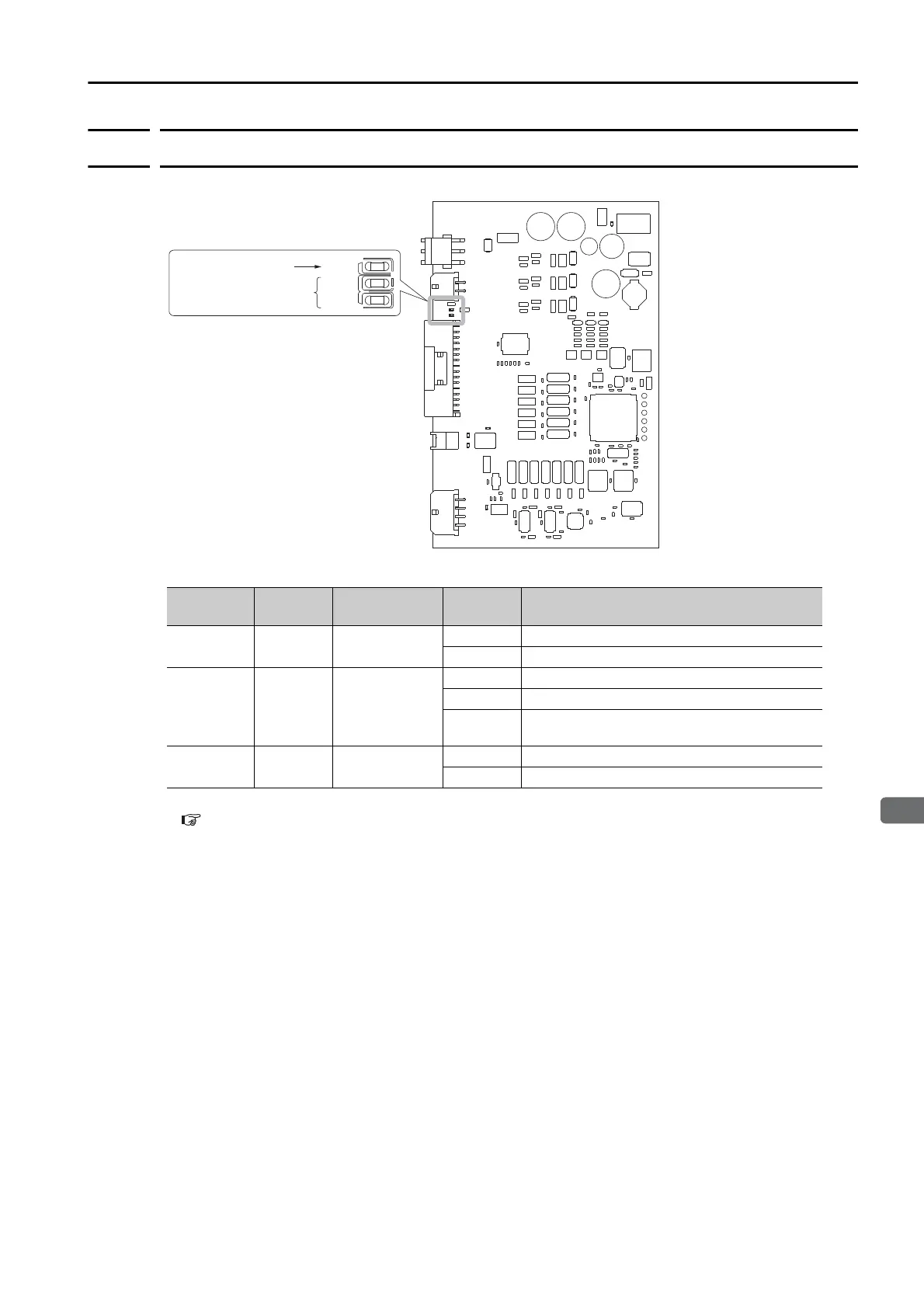

The SERVOPACK provides a power supply indicator and operating status indicators.
You can use the status of the indicators to check the operating status of the SERVOPACK.
* Refer to the following section for information on alarm and warning numbers and ALM indicator flashing patterns.
Chapter 10 Maintenance
Indicator
Name
Color Description Status Operating Status
PWR Orange
Power supply
status
Not lit. The power supply is OFF.
Lit. The power supply is ON.
ALM* Red
Servo error sta-
tus
Not lit. Normal status
Flashing An alarm or warning occurred.
Lit.
A system error (A.b) occurred or the initial-
ization is in progress.
RUN Green
Servo operating
status
Not lit. SERVO OFF
Lit. SERVO ON
PWRPower supply indicator
Operating status indicators
ALM
RUN
