9.2 Monitoring SERVOPACK Status
9.2.1 System Monitor
9-3
9.2
Monitoring SERVOPACK Status
9.2.1
System Monitor

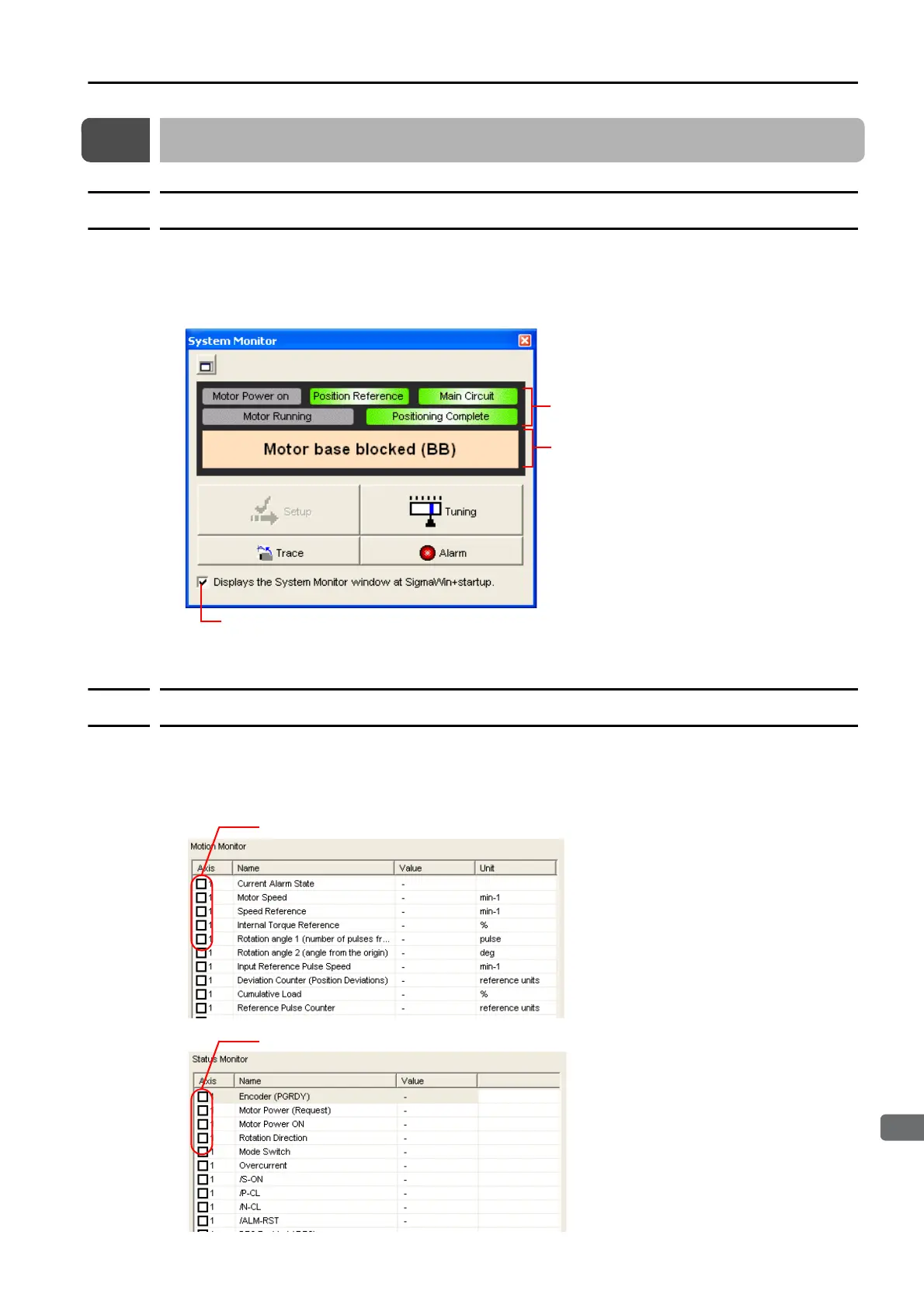

Use one of the following methods to display the System Monitor Dialog Box.
• Start the SigmaWin+. The System Monitor Dialog Box will be automatically displayed.
• Select Monitor - Monitor - System Monitor from the menu bar of the Main Window of the
SigmaWin+.
9.2.2
Monitoring Status and Operations
Use the following method to display the SERVOPACK’s Status Monitor Window or Motion Mon-
itor Window.
• Select Monitor - Monitor - Status Monitor or Monitor - Monitor - Motion Monitor from
the menu bar of the Main Window of the SigmaWin+.
The current status of the SERVOPACK is
displayed.
If this check box is selected, this dialog box will be dis-
played automatically when the SigmaWin+ starts.
The current signal status of the SERVOPACK
is displayed.
If these check boxes are selected, the current values are displayed in the Value column.
If these check boxes are selected, the current values are displayed in the Value column.
