4.1 Wiring Precautions
4.1.3 Grounding
4-6

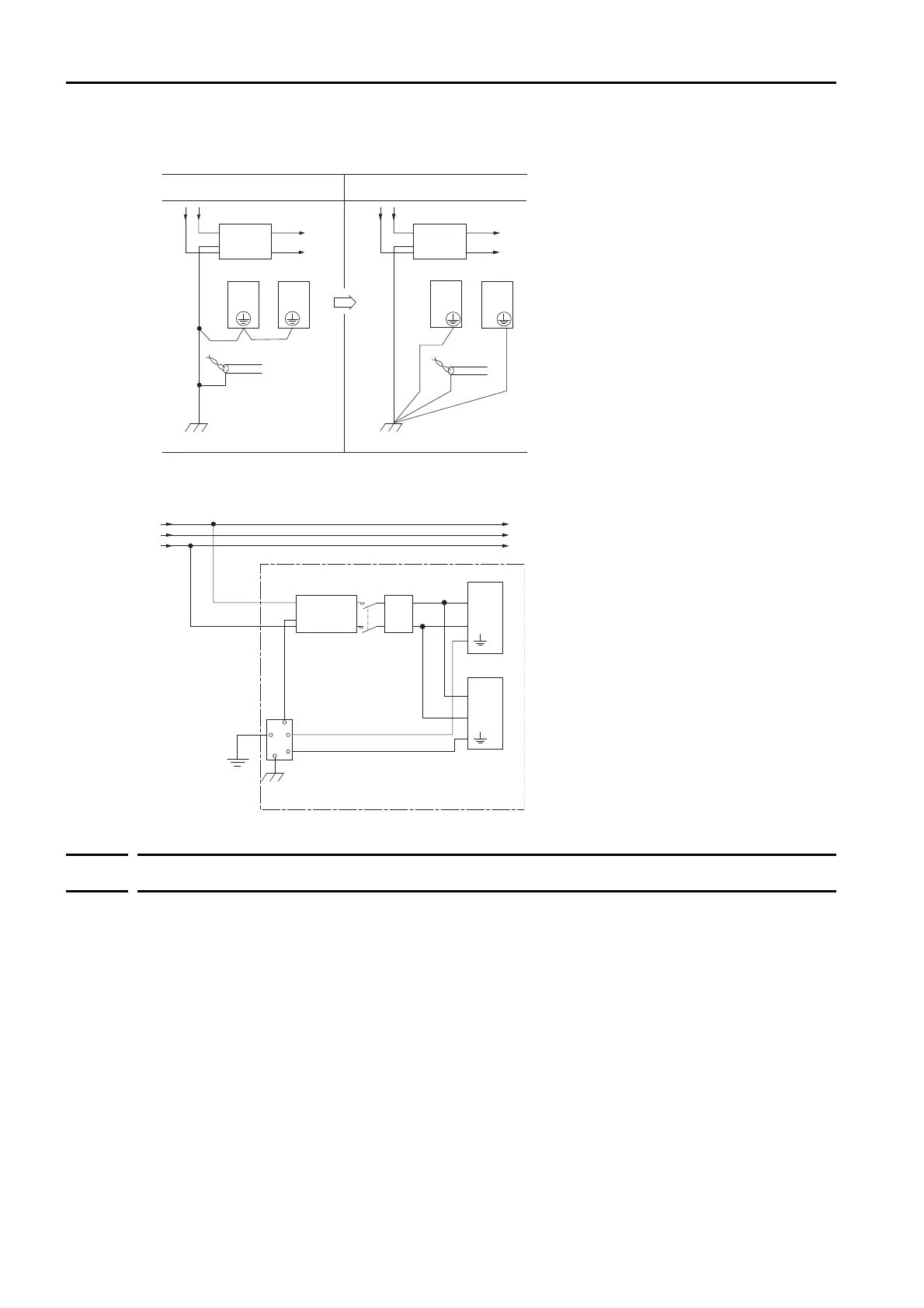

• Connect the Noise Filter ground wire directly to the grounding plate. Do not connect the
Noise Filter ground wire to other ground wires.
• If a Noise Filter is located inside a control panel, first connect the Noise Filter ground wire and
the ground wires from other devices inside the control panel to the grounding plate for the
control panel, then ground the plate.
4.1.3
Grounding
Implement grounding measures as described in this section. Implementing suitable grounding
measures will also help prevent malfunctions, which can be caused by noise.
Observe the following precautions when wiring the ground cable.
• Ground the SERVOPACK to a resistance of 100 Ω or less.
• Be sure to ground at one point only.
• Ground the Servomotor directly if the Servomotor is insulated from the machine.
Motor Frame Ground or Motor Ground
If you ground the Servomotor through the machine, switching noise current can flow from the
main circuit of the SERVOPACK through the stray capacitance of the Servomotor. To prevent
this, always connect the ground terminal (FG) of the Servomotor to the ground terminal on the
SERVOPACK.
Shielded
ground wire
Noise
Filter
Noise
Filter
Grounding plate
Grounding plate
SERVOPACK SERVOPACK SERVOPACK SERVOPACK
Incorrect
Correct
Control panel
Ground
Grounding plate
SERVOPACK
SERVOPACK
Noise
Filter
AC/DC
converter
To Next Page
