YASKAWA E-S Series User Manual

2.5 Selecting Cables
2.5.4 Servomotor Power Cables
2-16

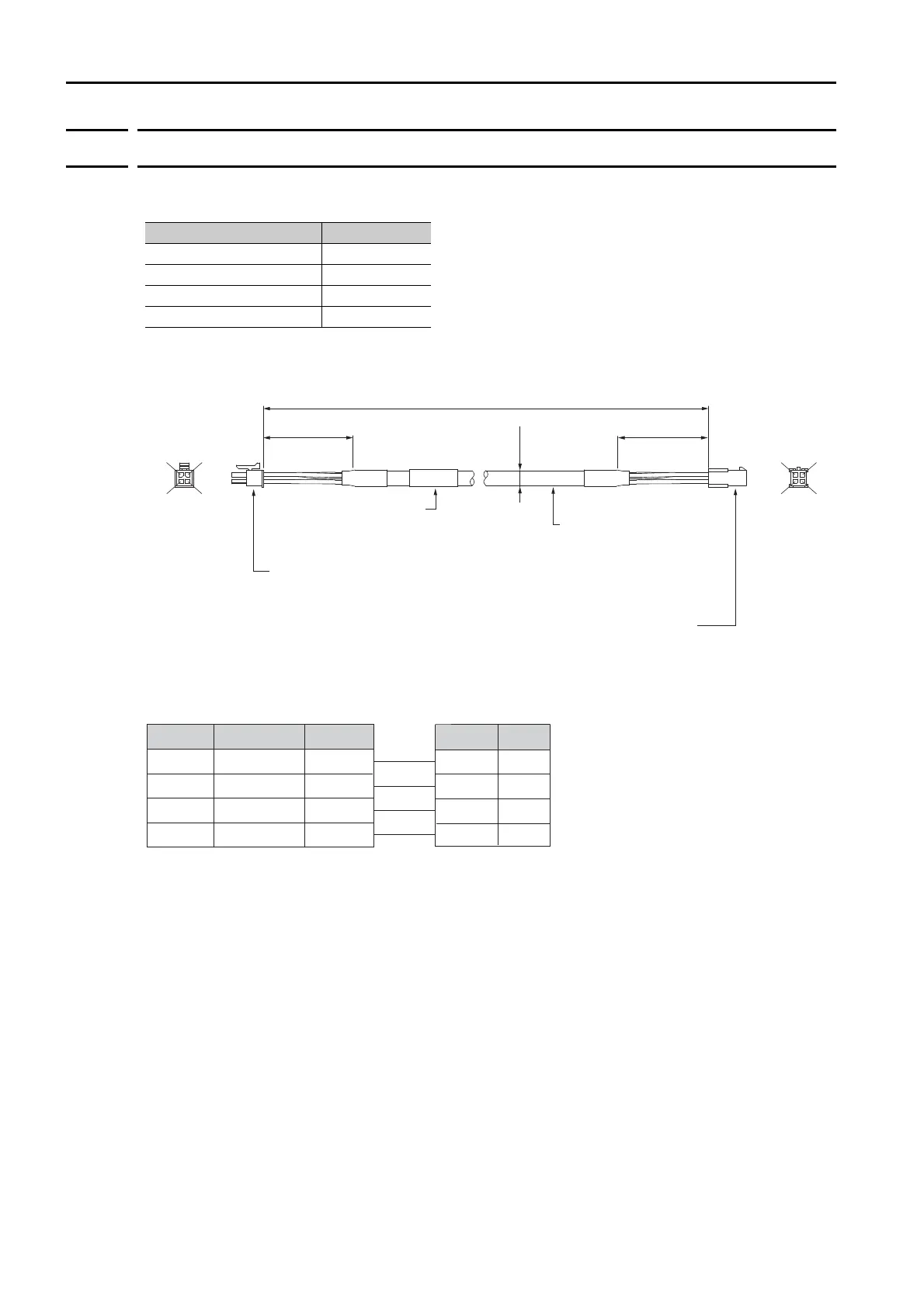

2.5.4 Servomotor Power Cables
Selection Table
External Dimensions
Wiring Specifications
Order Number Length (L)
JZSP-CSSM00-01P5-E 1.5 m
JZSP-CSSM00-03-E 3 m
JZSP-CSSM00-05-E 5 m
JZSP-CSSM00-10-E 10 m
4
2
3
1
3
1
4
2
Connector: 43025-0400 (from Molex Japan LLC)
Contacts: 43030-0001 (reeled) (from Molex Japan LLC)
43030-0007 (loose) (from Molex Japan LLC)
Connector: 43020-0401 (from Molex Japan LLC)
Contacts: 43031-0001 (reeled) (from Molex Japan LLC)
43031-0007 (loose) (from Molex Japan LLC)
Cable (UL2464)
AWG20 × 4C
Insulating tube
L
SERVOPACK end Servomotor end
30 30
(6.6 dia.)
Unit: mm
Pin Signal
SignalWire ColorPin
1
2
3
4
Servomotor connector
FG
Phase W
Yellow/green
Black
White
Red
4
3
2
1
SERVOPACK end
Phase U
Phase V
FG
Phase W
Phase U
Phase V
