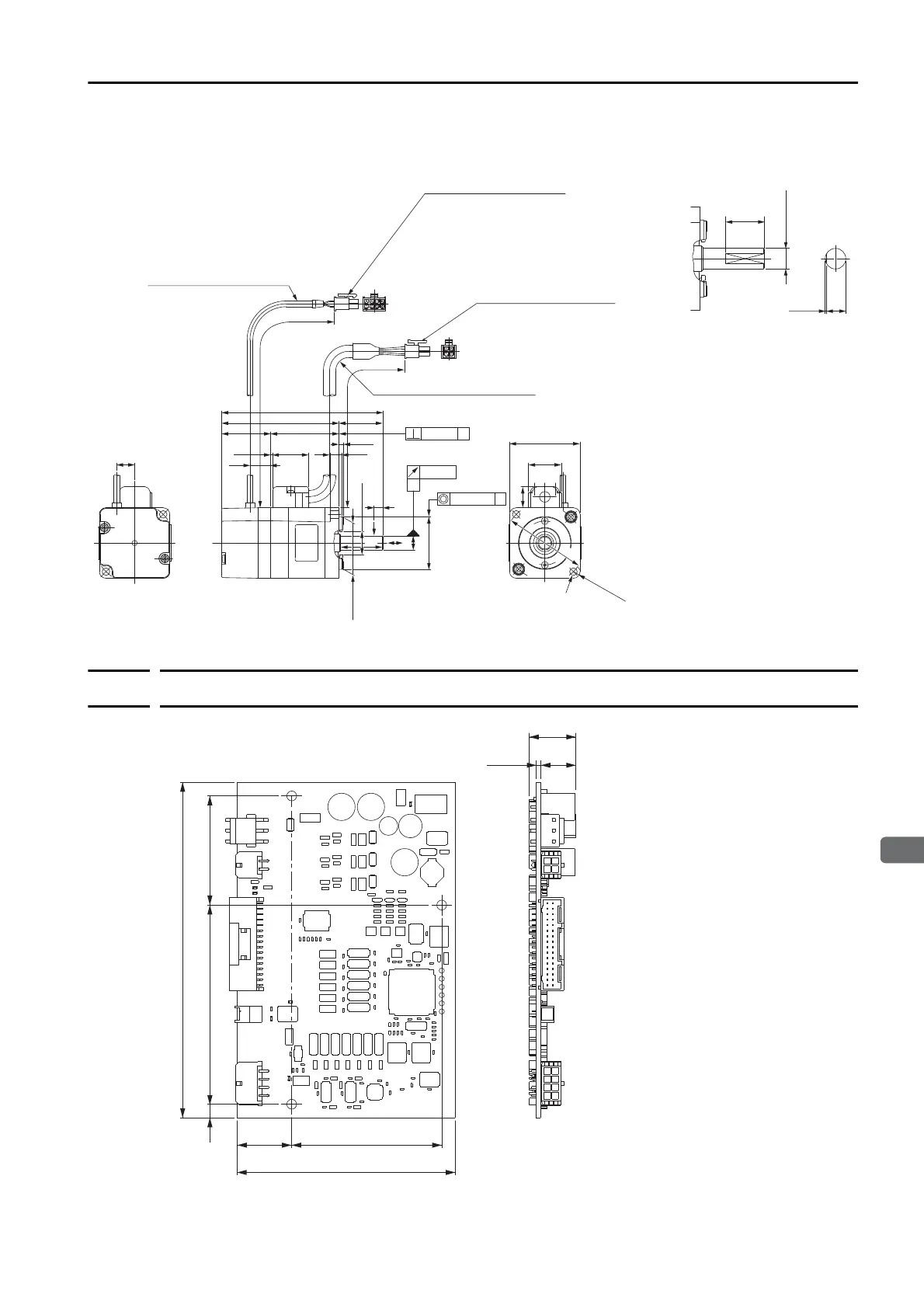

YASKAWA E-S Series User Manual

2.3 External Dimensions
2.3.2 SERVOPACK External Dimensions
2-11
2
Selection
SGMSL-A5CKA  1
2.3.2 SERVOPACK External Dimensions
Encoder Connector Specications
· Connector: 43025-0800
· Terminals: 43030-0005
· Manufacturer : Molex Japan LLC
Mating Connector
· Plug: 43020-0801
· Terminals: 43031-0002
Servomotor Connector Specications
 Connector: 43025-0400
 Terminals: 43030-0001
 Manufacturer: Molex Japan LLC
Mating Connector
 Plug: 43020-0401
 Terminals: 43031-0001
Servomotor Power Cable, 7 dia.
AWG20, UL2517
Encoder Cable, 3.3 dia.
AWG30, UL20379
10.2
(92)
67
(28) 39
25
1.3
11.7
20
5
2.5
1.5
5
Fr
24
Fs
19
12
46 dia.
4
×
R3.7
2 × 4.3 dia. holes
300 ± 30
300
± 30
0.08
A
A
0.06 dia.
 40
0.03
A
13 dia.
29.4 dia.
8 6 dia.
30 7 dia.
Unit: mm
Approx. mass: 350 g
Shaft End Specications
· Shaft End with a Flat Seat
8 6 dia.
15
(0.5)
7.5
0
−0.013
0 −0.013
0 −0.021
123
40735
20 55
80
17.1
（
13
）（
1.6
）
Unit: mm
Approx. mass: 50 g
