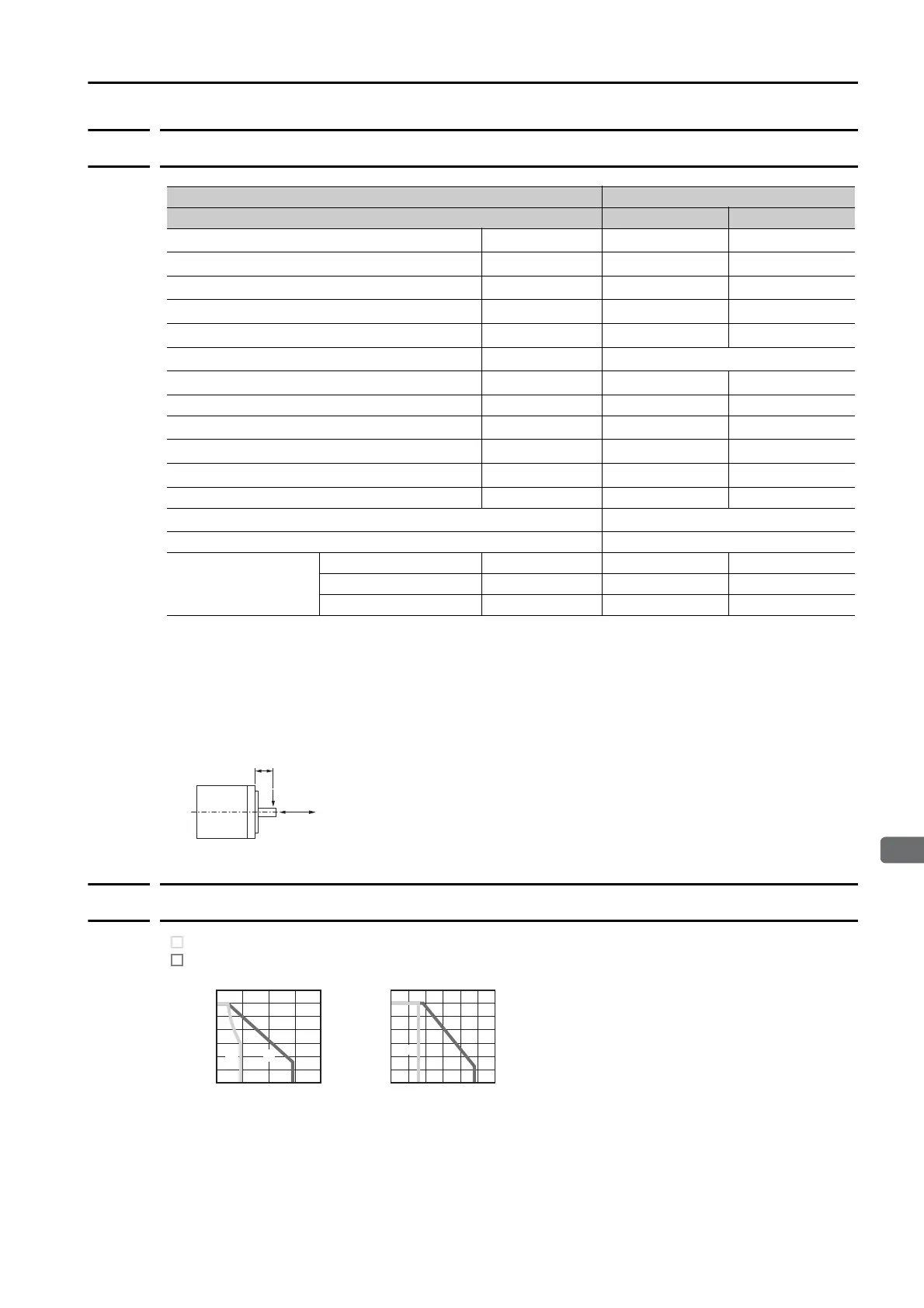

2.2 Ratings and Specifications
2.2.2 Servomotor Ratings
2-5
2
Selection
2.2.2 Servomotor Ratings
*1. These values are for operation in combination with a SERVOPACK when the temperature of the armature wind-
ing is 100°C. The values for other items are at 20°C. These are typical values.
*2. The rated torques are the continuous allowable torque values at 40°C with an aluminum heat sink of the dimen-
sions given in the table.
*3. This does not apply to the connectors or shaft opening. Protective structure specifications apply only when the
special cable is used.
*4. The allowable shaft loads are illustrated in the following figure. Design the mechanical system so that the thrust
and radial loads applied to the Servomotor shaft end during operation do not exceed the values given in the
table.
2.2.3 Torque-Motor Speed Characteristics
Note: 1. These values are for operation in combination with a SERVOPACK when the temperature of the armature
winding is 100°C. These are typical values.
2. The characteristics in the intermittent duty zone depend on the power supply voltage.
3. If the effective torque is within the allowable range for the rated torque, the Servomotor can be used within
the intermittent duty zone.
4. The Servomotor Power Supply Cable may cause a voltage drop, which may reduce the intermittent duty
zone of the torque-motor speed characteristics.
Voltage 24 VDC
Model SGMSL- A3C A5C
Rated Output
*1
W3050
Rated Torque
*1, *2
Nm 0.0955 0.159
Instantaneous Maximum Torque
*1
Nm 0.286 0.477
Rated Current
*1
Arms 2.9 3.1
Instantaneous Maximum Current
*1
Arms 8.6 9.2
Rated Motor Speed
*1
min
-1
3000
Maximum Motor Speed
*1
min
-1
6000 3000
Torque Constant Nm/Arms 0.0358 0.0579
Motor Moment of Inertia
×10
-4
kgm
2
0.00629 0.0414
Rated Power Rate
*1
kW/s 14.5 6.11
Rated Angular Acceleration Rate
*1
rad/s
2
152000 38400
Heat Sink Size (Aluminum) mm 250 × 250 × 6200 × 200 × 6
Protective Structure
*3
Totally enclosed, self-cooled, IP40
Allowable Load Moment of Inertia (Motor Moment of Inertia Ratio) 30 times
Allowable Shaft
Loads
*4
LF mm 16 20
Allowable Radial Load N 44 78
Allowable Thrust Load N 14.5 54
Allowable Radial Load
LF
Allowable Thrust Load
SGMSL-A3C
0
0.1 0.2 0.3 0.4
0
1000
2000
3000
4000
5000
6000
7000
SGMSL-A5C
0
0.1 0.2 0.3 0.4 0.5 0.6
Torque (N·m)
0
500
1000
1500
2000
2500
3000
3500
A
:
Continuous duty zone
B
:
Intermittent duty zone
Torque (N·m)
Motor speed (min
-1
)
Motor speed (min
-1
)
A
B
AB
