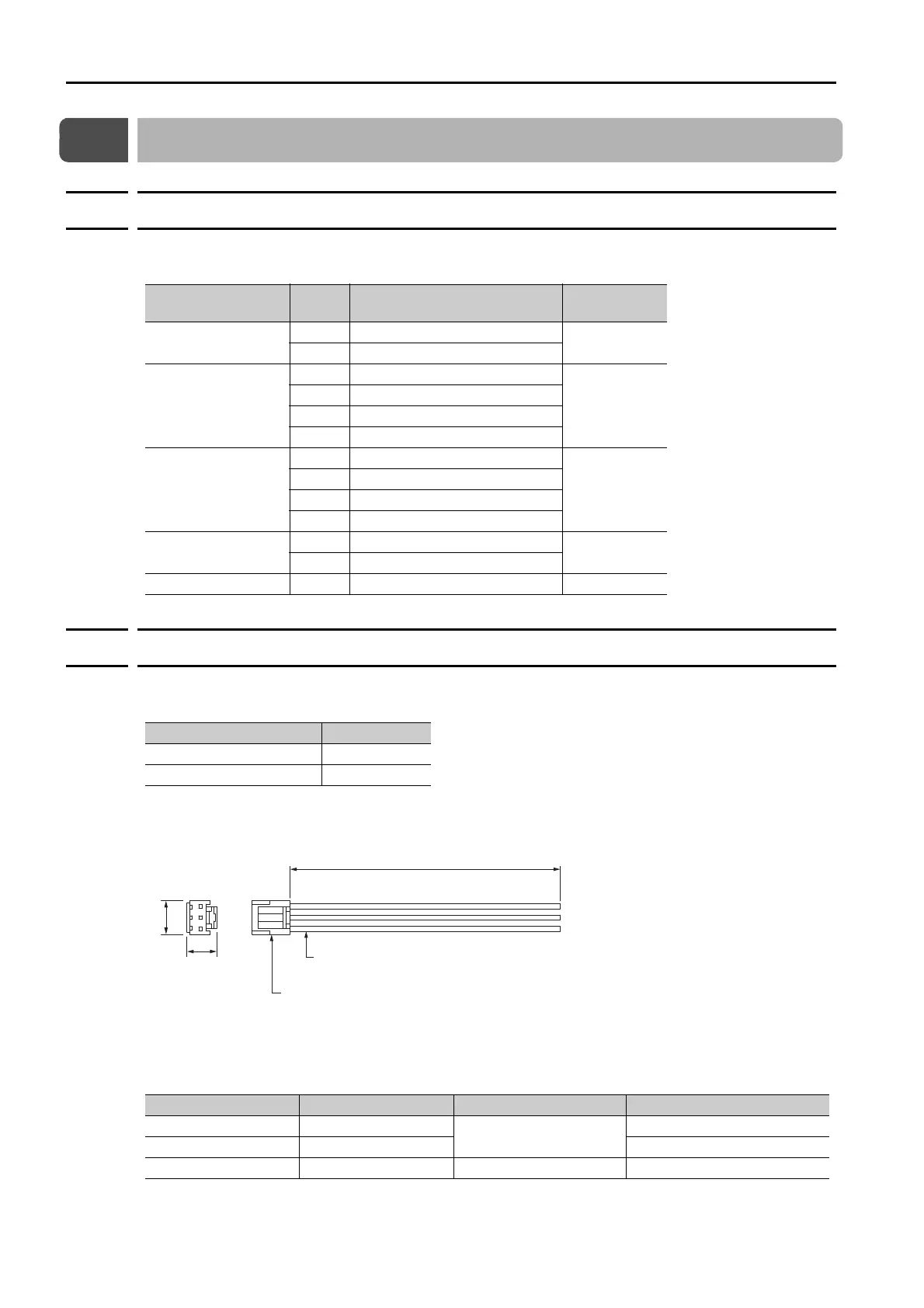

2.5 Selecting Cables
2.5.1 Cable Selection Table
2-14
2.5 Selecting Cables
2.5.1 Cable Selection Table
The following table gives the model numbers of the Cables that are required to use a SERVO-
PACK.
2.5.2 Power Supply Input Cables
Selection Table
Dimensional Drawings
Wiring Specifications
Name
Length
(L)
Order Number Reference
Power Supply Input
Cables
1.5 m JZSP-CSSG03-01P5-E
page 2-14
3 m
JZSP-CSSG03-03-E
Servomotor Power
Cables (relay cables)
1.5 m JZSP-CSSM00-01P5-E
page 2-16
3 m JZSP-CSSM00-03-E
5 m JZSP-CSSM00-05-E
10 m JZSP-CSSM00-10-E
Encoder Cables
(relay cables)
1.5 m JZSP-CSSP00-01P5-E
page 2-17
3 m JZSP-CSSP00-03-E
5 m JZSP-CSSP00-05-E
10 m JZSP-CSSP00-10-E
I/O Signal Cables
1.5 m JZSP-CSSI203-01P5-E
page 2-18
3 m JZSP-CSSI203-03-E
Computer Cable 2 m JZSP-CPS00-02-E page 2-19
Order Number Length (L)
JZSP-CSSG03-01P5-E 1.5 m
JZSP-CSSG03-03-E 3 m
Pin Signal Name Voltage Specification
1P
Power supply input termi-
nals
24 VDC ±15%
2N 0 VDC
3 FG Frame ground terminal - (This is the ground terminal.)
Connector: VHR-3N (from J.S.T. Mfg. Co., Ltd.)
Connector: SVH-21T-P1.1 (from J.S.T. Mfg. Co., Ltd.)
SERVOPACK end AC/DC power supply end
Wires (UL1007)
(AWG20 × 3)
L
10.5
11.8
Unit: mm
