2.6 Selecting Peripheral Devices
2.6.5 Noise Filters
2-22
2.6.5 Noise Filters
Noise Filters are used to reduce external noise that can enter on the power supply line or con-
ductive noise from the SERVOPACK.
Selection Table

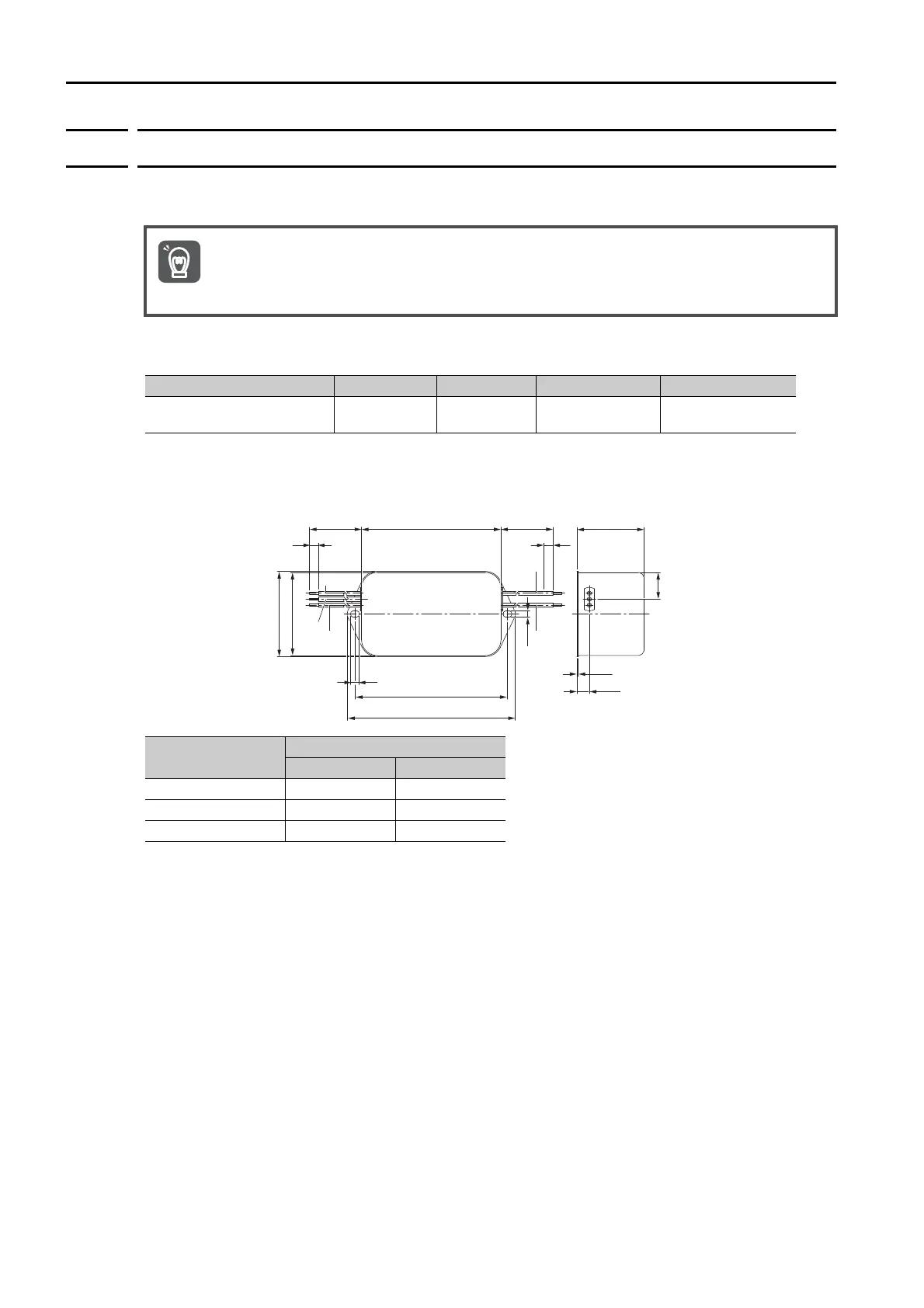

External Dimensions
Some Noise Filters have large leakage currents. The grounding conditions also affect the amount
of leakage current. If necessary, select an appropriate leakage detector or leakage breaker taking
into account the grounding conditions and the leakage current from the Noise Filter.
Consult Yaskawa Controls Co., Ltd. for details.
AC Power Supply Voltage Order Number Specification Leakage Current Manufacturer
100 VAC/200 VAC FN2070-6-07
Single-phase
250 V, 6 A
0.734 mA,
230 VAC at 50 Hz
Schaffner EMC, Inc.
Line Color
Termina l s
Line Load
Brown (BN) P P’
Blue (BU) N N’
Green/yellow (GNYE) E –
Important
94
Top View Side View
103
113.5
140
+
5
0
140
6
6
6
45.4
8.4
0.9
BN
GNYE
BU
BU
BN
18
4.4
56
57.5
LoadLine
+
5
0
Unit: mm
Approx. mass: 450 g
