Imager Preferences 7 - 15

Image Cropping

Parameter # 301 (SSI # F0h 2Dh)

This parameter crops a captured image. Select Disable Image Cropping to present the full 742 x 480 pixels.

Select Enable to crop the image to the pixel addresses set in Crop to Pixel Addresses on page 7-16.

NOTE The imager has a cropping resolution of 4 pixels. Setting the cropping area to less than 3 pixels transfers

the entire image.

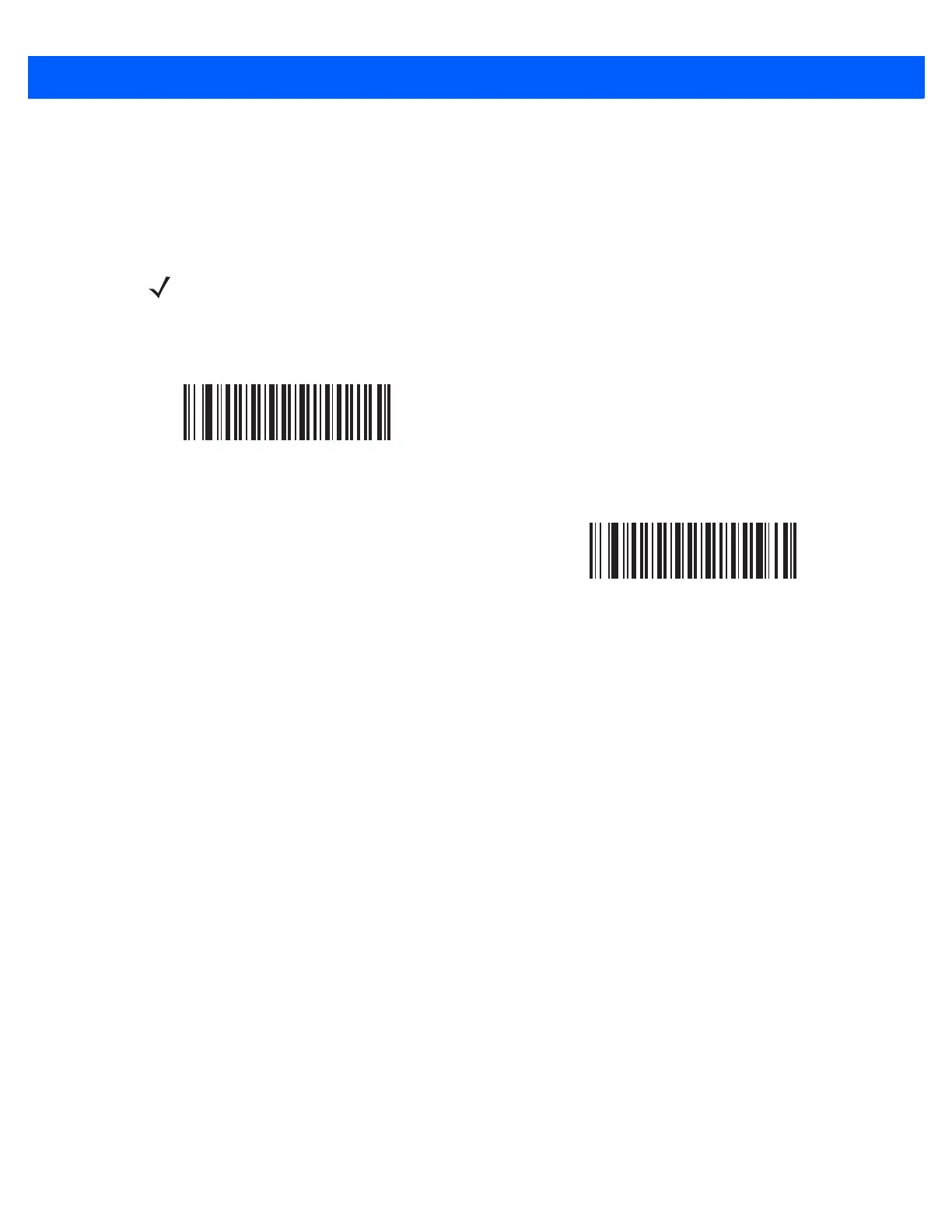

Enable Image Cropping

(1)

*Disable Image Cropping

(Use Full 742 x 480 Pixels)

(0)
