12 - 16 DS457-XX20004ZZWW Fixed Mount Imager Integration Guide
User-Programmable Supplementals
Supplemental 1: Parameter # 579 (SSI # F1h 43h)
Supplemental 2: Parameter # 580 (SSI # F1h 44h)
If you selected a Supplemental User-Programmable option from Decode UPC/EAN/JAN Supplementals on
page 12-13, select User-Programmable Supplemental 1 to set the 3-digit prefix. Then select the 3 digits
using the numeric bar codes in Appendix G, Numeric Bar Codes. Select User-Programmable Supplemental
2 to set a second 3-digit prefix. Then select the 3 digits using the numeric bar codes beginning in Appendix G,
Numeric Bar Codes.
UPC/EAN/JAN Supplemental Redundancy
Parameter # 80 (SSI # 50h)
With Autodiscriminate UPC/EAN/JAN Supplementals selected, this option adjusts the number of times a
symbol without supplementals is decoded before transmission. The range is from two to thirty times. Five or
above is recommended when decoding a mix of UPC/EAN/JAN symbols with and without supplementals, and
the autodiscriminate option is selected. The default is set at 10.
Scan the bar code below to set a decode redundancy value. Next, scan two numeric bar codes in Appendix G,
Numeric Bar Codes. Single digit numbers must have a leading zero. To correct an error or change a selection,
scan Cancel on page G-3.

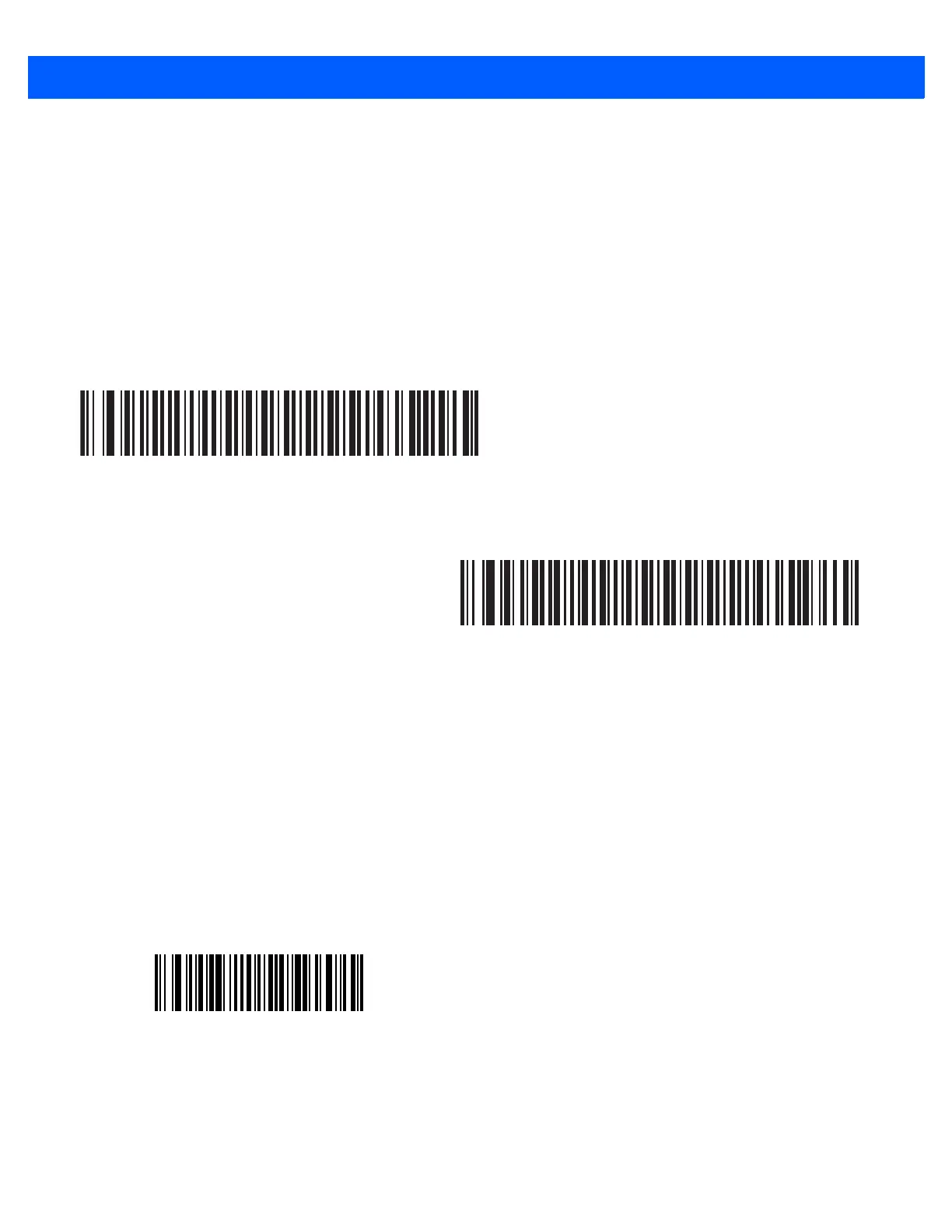

User-Programmable Supplemental 1
User-Programmable Supplemental 2
UPC/EAN/JAN Supplemental Redundancy
To Next Page
