Zebra DS457 Series User Manual

2 - 8 DS457-XX20004ZZWW Fixed Mount Imager Integration Guide
Connecting the DS457
USB Host Connection
1. Plug the 9-pin D-connector with the end marked SCANNER into the DS457.
2. If using an external switch and applicable host cable, plug the trigger cable into the female stereo
connector on the flying lead of the 9-pin D-connector. See Figure 2-10 on page 2-10 for connector pins.
3. Plug the host connector into the appropriate port on the host.
4. Check all connections to ensure they are secure.
5. Program the DS457 using the programming bar codes in this guide.

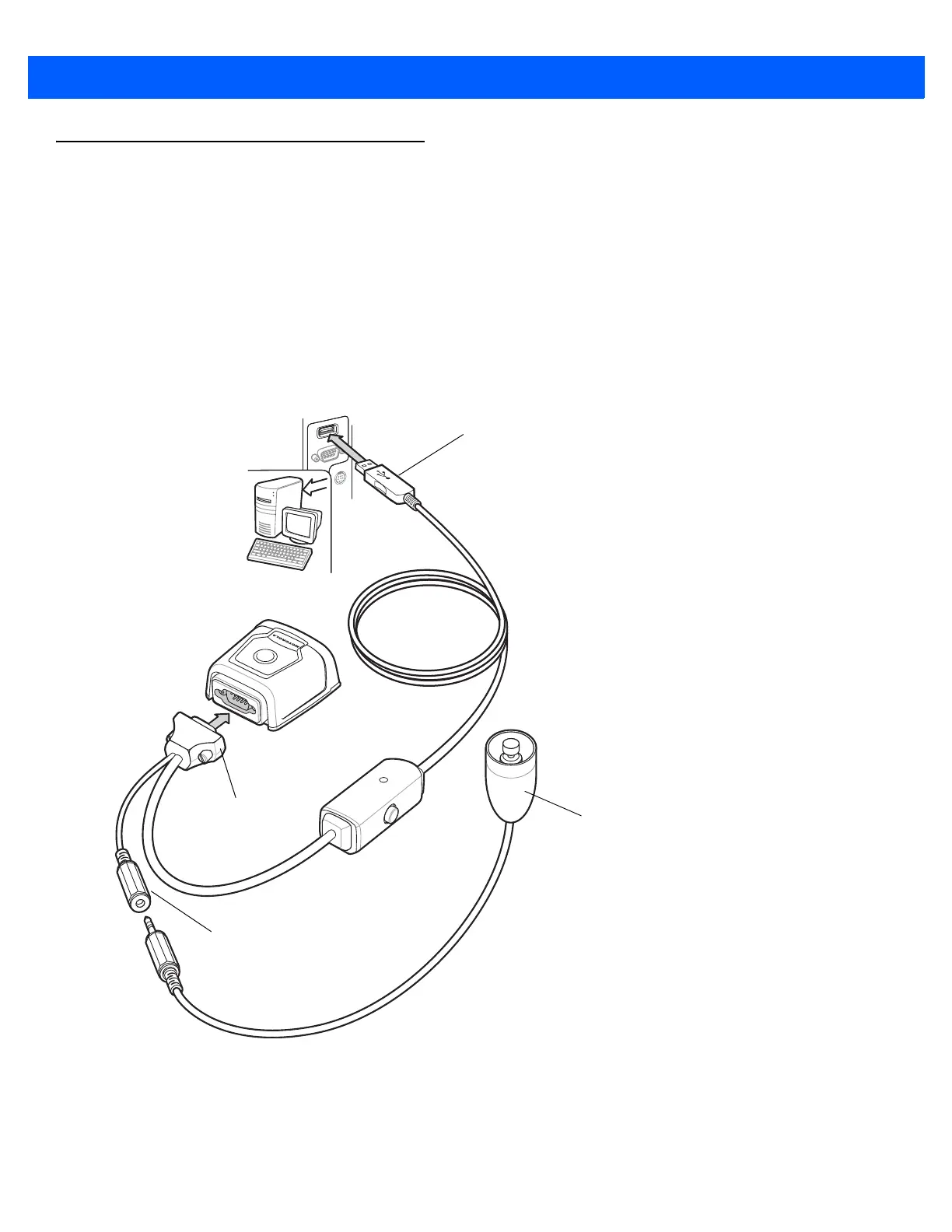

Figure 2-8 USB Connection
Trigger or Photo
Sensor (Optional)
Host Connector
Trigger Jack (Optional)
See Figure 2-10
9-pin D-connector

Zebra DS457 Series Specifications

General

Connectivity	USB, RS-232
Decode Capability	1D, 2D, PDF417, Postal Codes
Scan Rate	Up to 60 scans per second
Supported Barcode Types	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix, PDF417, Postal Codes
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Power Consumption	2.5 W (typical)
