Zebra DS457 Series - Skew, Pitch and Roll

Specifications 4 - 5
Skew, Pitch and Roll
Measured on a 20 mil Code 39 symbol at a distance of 10 inches. Tolerance is reduced at extreme ends of the
working range.

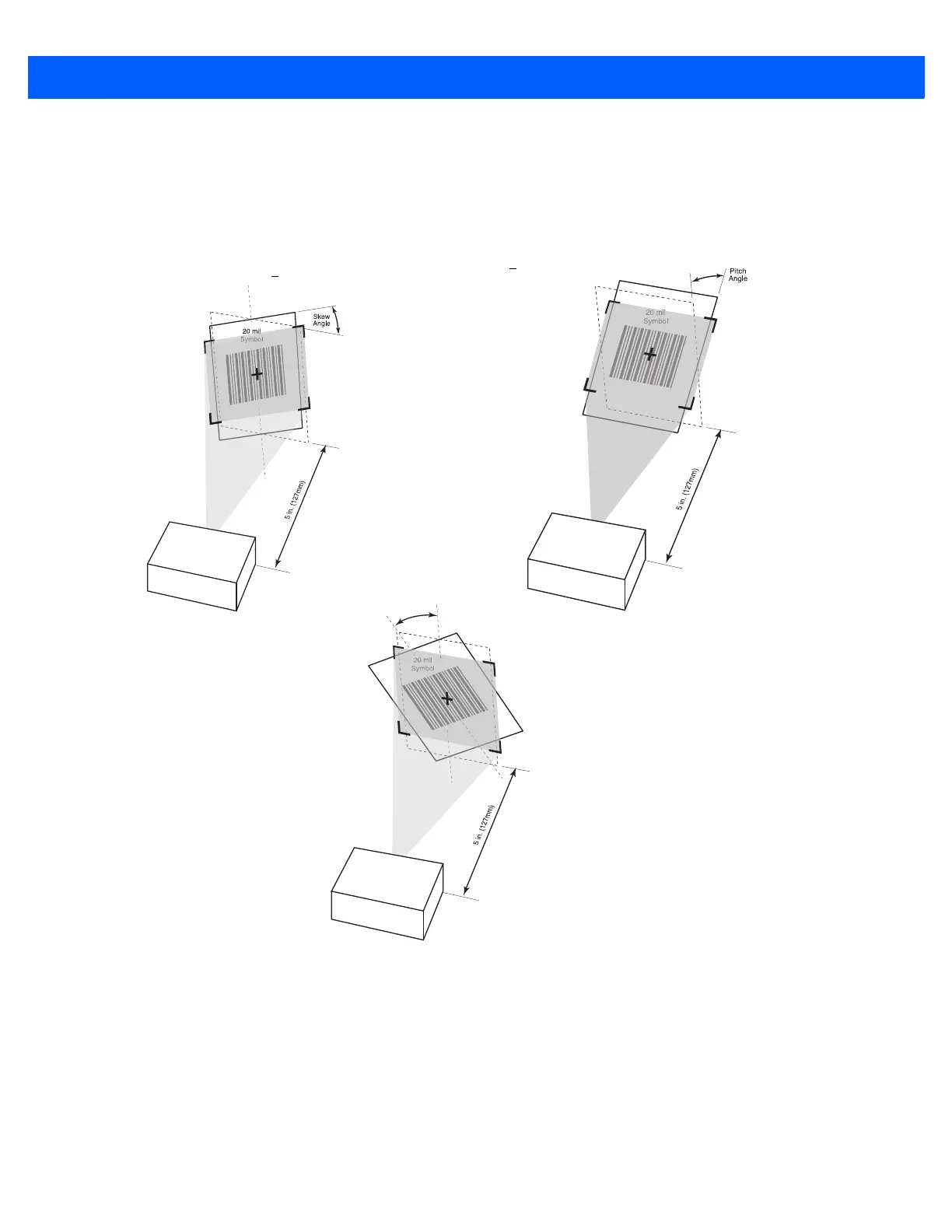

Figure 4-3 Skew, Pitch and Roll
Skew Pitch
Roll
Note: Tolerances are
of the working range.
reduced at extreme ends
+ 50° from normal
+
60° from normal
360°
