Zebra DS457 Series User Manual

2 - 2 DS457-XX20004ZZWW Fixed Mount Imager Integration Guide
Mounting
There are two M3 x .5 tapped holes on the bottom of the DS457 housing for mounting. The following figures
provide the mounting dimensions.

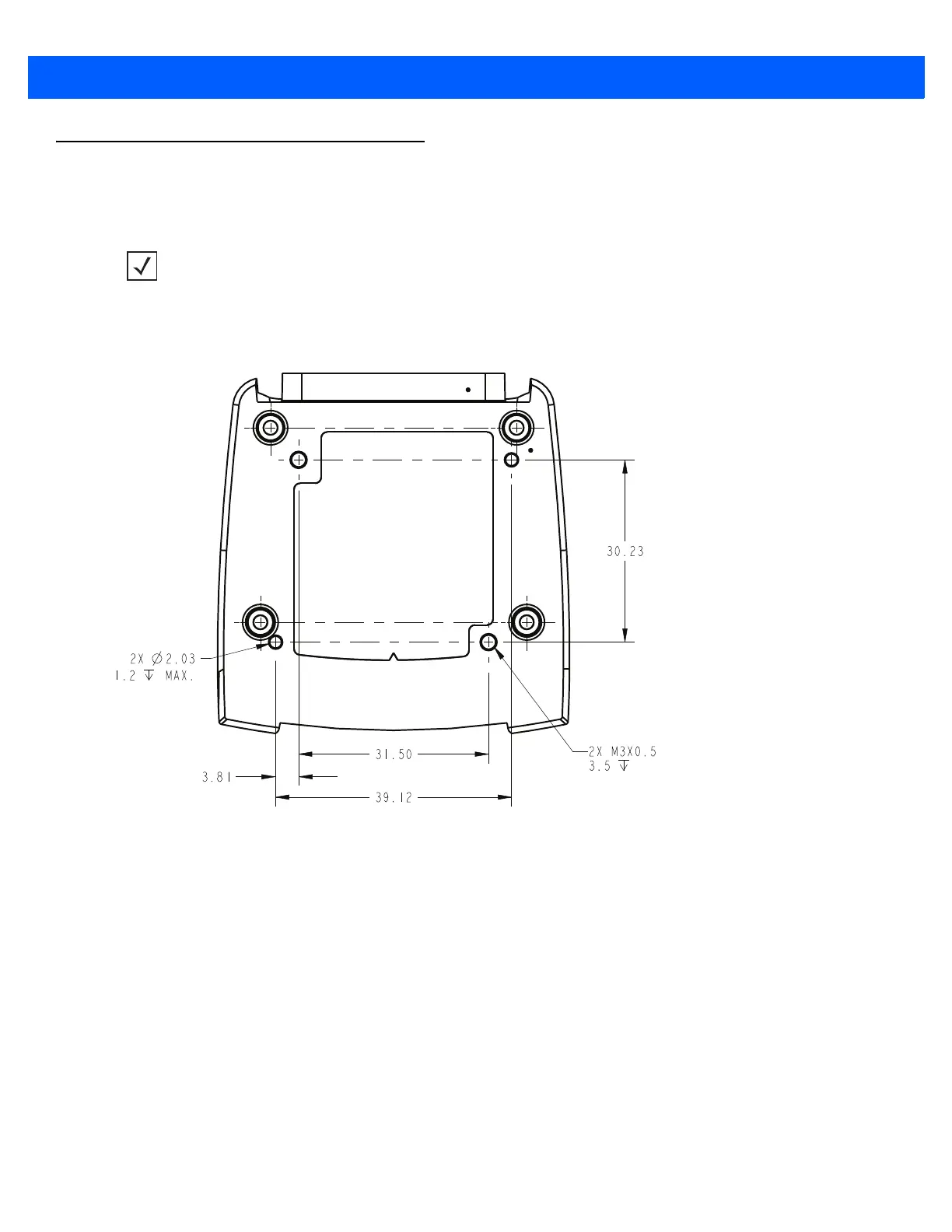

DS457 Mounting Dimensions
Figure 2-1 DS457 Mounting Dimensions
NOTE Do not use screws that penetrate more than 3.5 mm into the bottom mousing of the DS457 since this is the
maximum depth of the useful thread.
Note: Dimensions are in mm.

Zebra DS457 Series Specifications

General

Connectivity	USB, RS-232
Decode Capability	1D, 2D, PDF417, Postal Codes
Scan Rate	Up to 60 scans per second
Supported Barcode Types	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix, PDF417, Postal Codes
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Power Consumption	2.5 W (typical)
