Symbologies 12 - 77

Netherlands KIX Code

Parameter # 326 (SSI # F0h, 46h)

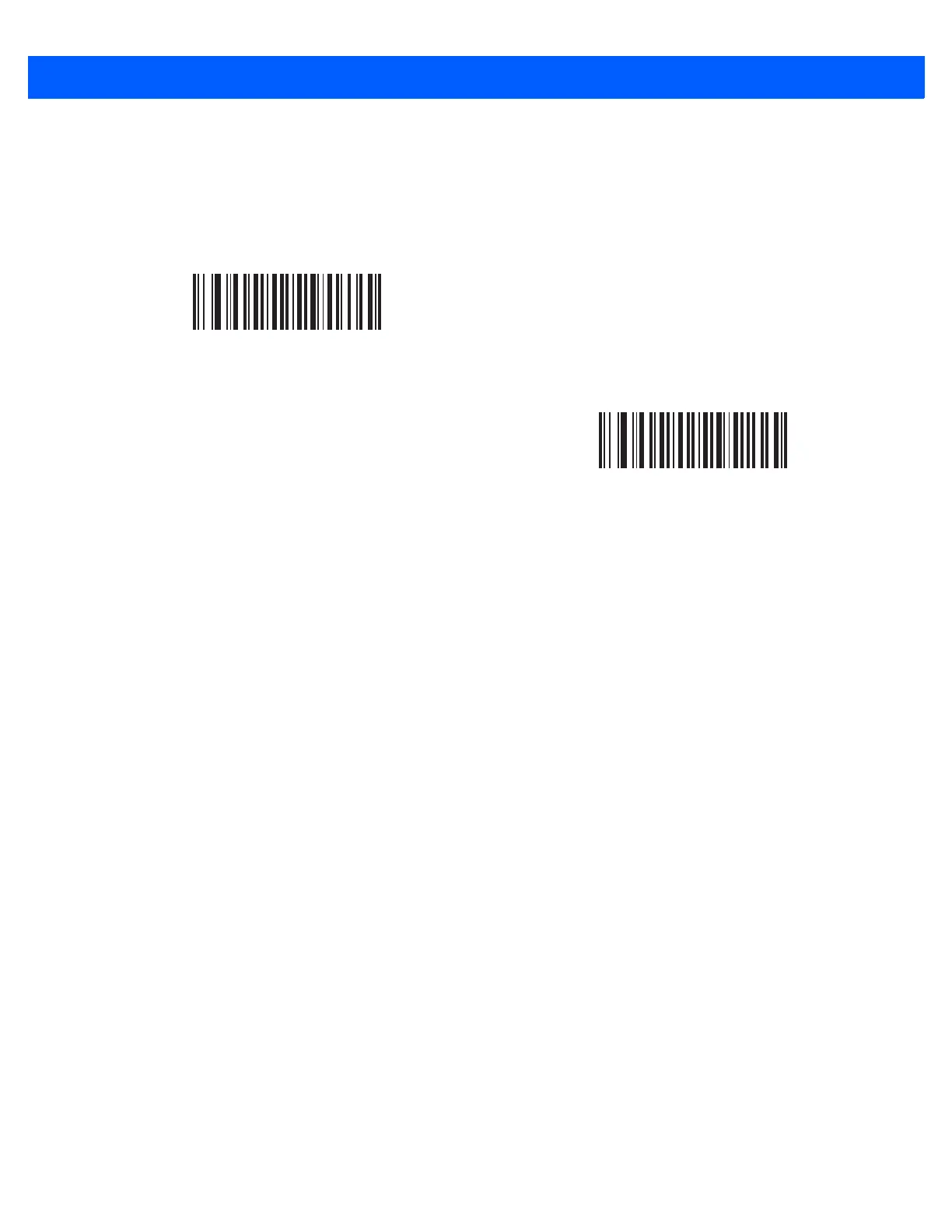

To enable or disable Netherlands KIX Code, scan the appropriate bar code below.

Enable Netherlands KIX Code

(1)

*Disable Netherlands KIX Code

(0)
