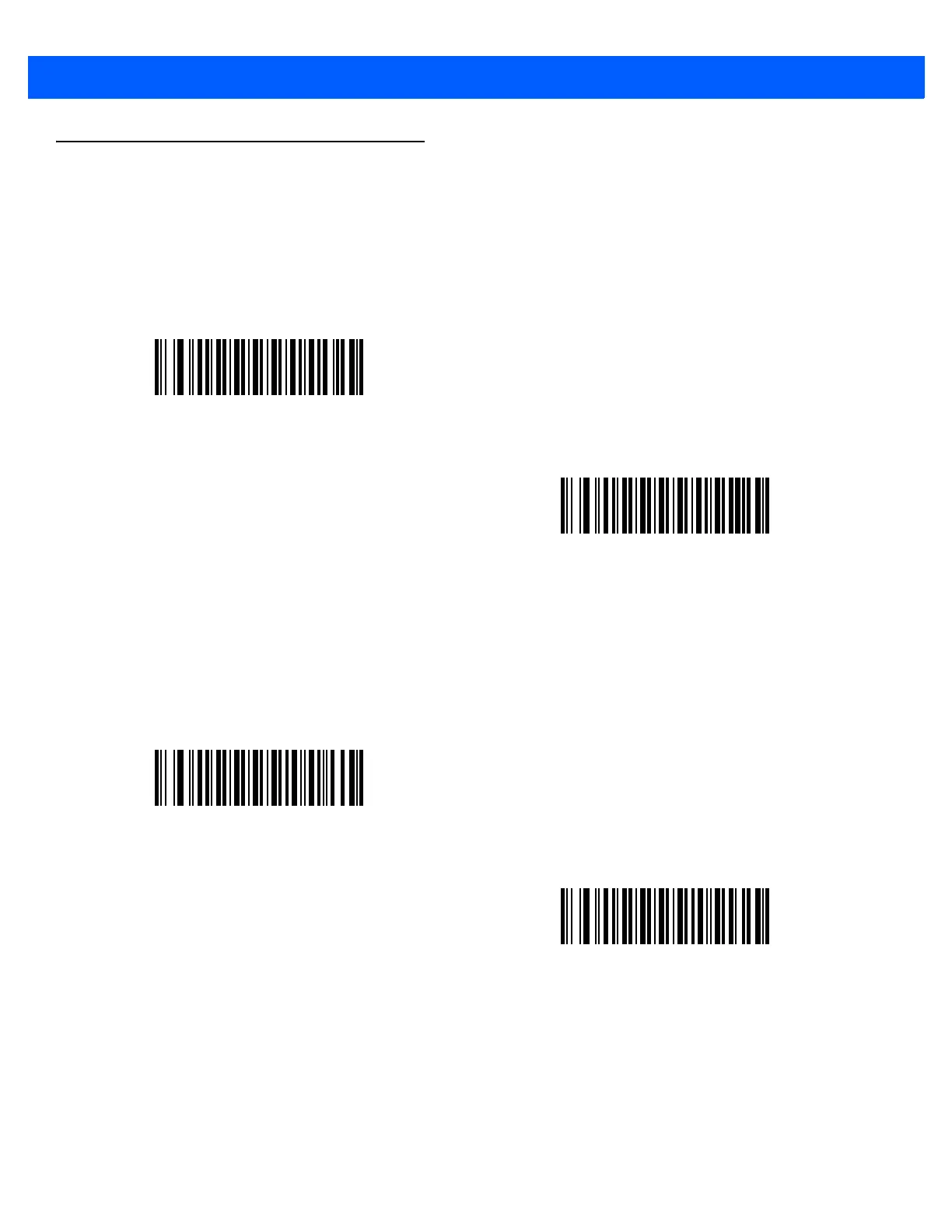

12 - 10 DS457-XX20004ZZWW Fixed Mount Imager Integration Guide

UPC/EAN

Enable/Disable UPC-A

Parameter # 1 (SSI # 01h)

To enable or disable UPC-A, scan the appropriate bar code below.

Enable/Disable UPC-E

Parameter # 2 (SSI # 02h)

To enable or disable UPC-E, scan the appropriate bar code below.

*Enable UPC-A

(1)

Disable UPC-A

(0)

*Enable UPC-E

(1)

Disable UPC-E

(0)

DS457-XX20004ZZWW FIXED MOUNT IMAGER INTEGRATION GUIDE1
- Warranty5
- Revision History6
Table of Contents7
About This Guide19
- Introduction19
- Configurations19
- Chapter Descriptions19
- Notational Conventions20
- Related Documents21
- Service Information22
Getting Started23
- Overview23
  - DS457 Features24
- Theory of Operation24
  - DS457 Block Diagram Descriptions25
  - DS457 Decoder/Interface Board26
Installation27
- Overview27
- Unpacking27
- Mounting28
- Connecting the DS45734
- Location and Positioning36
- Embedded Applications Requiring a Window37
- Recommended Exit Window Information41
  - Exit Window Notes41
- Accessories42
  - Simple Serial Interface Software Developer's Kit (SSI SDK)43
  - Zebra SNAPI Software Developer's Kit43
Imaging45
- Overview45
- Imaging System45
- Capturing Data47
- Beeper and Decode LED Indications48
- Supported Symbologies49
- Operating Modes49
Specifications51
- Electrical Interface51
- Dimension Drawings52
- DS457 Imager Technical Specifications53
  - Skew, Pitch and Roll55
- Decode Zones56
  - DS457-SR/DL56
  - DS457-HD/DP59
Maintenance & Troubleshooting63
- Overview63
- Maintenance63
  - Cleaning the Connector63
- Troubleshooting64
User Preferences65
- Introduction65
  - Host Selection65
- Changing Default Values66
- Scanning Sequence Examples66
- Errors While Scanning66
- User Preferences Parameter Defaults67
- User Preferences69
- Miscellaneous Parameters87
Imager Preferences93
- Introduction93
- Scanning Sequence Examples94
- Errors While Scanning94
- Imager Preferences Parameter Defaults94
- Imager Preferences96
SSI Interface125
- Introduction125
- Communications125
- SSI Transactions127
  - General Data Transactions127
  - Transfer of Decode Data128
- Communication Summary129
- Things to Remember When Using SSI Communication130
- Using Time Delay to Low Power Mode with SSI131
- Simple Serial Interface Default Parameters132
- SSI Host Parameters133
- Event Reporting142
Serial Interface145
- Introduction145
- Serial Parameter Defaults146
- Serial Host Parameters147
- ASCII Character Set for Serial Hosts162
USB Interface167
- Introduction167
- USB Parameter Defaults168
- USB Host Parameters169
- ASCII Character Sets182
OCR Programming183
- Introduction183
- OCR Parameter Defaults184
- OCR Parameters185
Symbologies215
- Introduction215
- Scanning Sequence Examples216
- Errors While Scanning216
- Symbology Parameter Defaults216
- Enable/Disable All Code Types223
- UPC/EAN224
  - Enable/Disable UPC-A224
  - Enable/Disable UPC-E224
  - Enable/Disable UPC-E1225
  - Enable/Disable EAN-8/JAN-8225
  - Enable/Disable EAN-13/JAN-13226
  - Enable/Disable Bookland EAN226
  - Decode UPC/EAN/JAN Supplementals227
  - User-Programmable Supplementals230
  - UPC/EAN/JAN Supplemental Redundancy230
  - UPC/EAN/JAN Supplemental AIM ID Format231
  - UPC Reduced Quiet Zone232
  - Transmit UPC-A Check Digit233
  - Transmit UPC-E Check Digit233
  - Transmit UPC-E1 Check Digit234
  - UPC-A Preamble235
  - UPC-E Preamble236
  - UPC-E1 Preamble237
  - Convert UPC-E to UPC-A238
  - Convert UPC-E1 to UPC-A238
  - EAN-8/JAN-8 Extend239
  - Bookland ISBN Format240
  - UCC Coupon Extended Code241
  - Coupon Report242
  - ISSN EAN243
- Code 128244
  - Enable/Disable Code 128244
  - Set Lengths for Code 128244
  - Enable/Disable GS1-128 (formerly UCC/EAN-128)246
  - Enable/Disable ISBT 128246
  - ISBT Concatenation247
  - Check ISBT Table248
  - ISBT Concatenation Redundancy248
  - Code 128 Security Level249
  - Code 128 Reduced Quiet Zone250
  - Ignore Code 128 <FNC4>250
- Code 39251
  - Enable/Disable Code 39251
  - Enable/Disable Trioptic Code 39251
  - Convert Code 39 to Code 32252
  - Code 32 Prefix252
  - Set Lengths for Code 39253
  - Code 39 Check Digit Verification254
  - Transmit Code 39 Check Digit255
  - Code 39 Full ASCII Conversion255
  - Code 39 Security Level256
  - Code 39 Reduced Quiet Zone257
- Code 93258
  - Enable/Disable Code 93258
  - Set Lengths for Code 93258
- Code 11260
  - Code 11260
  - Set Lengths for Code 11260
  - Code 11 Check Digit Verification262
  - Transmit Code 11 Check Digits263
- Interleaved 2 of 5 (ITF)263
  - Enable/Disable Interleaved 2 of 5263
  - Set Lengths for Interleaved 2 of 5264
  - I 2 of 5 Check Digit Verification265
  - Transmit I 2 of 5 Check Digit266
  - Convert I 2 of 5 to EAN-13266
  - I 2 of 5 Security Level267
  - I 2 of 5 Reduced Quiet Zone268
- Discrete 2 of 5 (DTF)269
  - Enable/Disable Discrete 2 of 5269
  - Set Lengths for Discrete 2 of 5269
- Codabar (NW - 7)271
  - Enable/Disable Codabar271
  - Set Lengths for Codabar271
  - CLSI Editing273
  - NOTIS Editing273
  - Codabar Security Level274
  - Codabar Upper or Lower Case Start/Stop Characters Transmission275
  - Codabar Mod 16 Check Digit Verification275
  - Transmit Codabar Check Digit276
- MSI276
  - Enable/Disable MSI276
  - Set Lengths for MSI277
  - MSI Check Digits278
  - Transmit MSI Check Digit(s)279
  - MSI Check Digit Algorithm279
  - MSI Reduced Quiet Zone280
- Chinese 2 of 5281
  - Enable/Disable Chinese 2 of 5281
- Matrix 2 of 5281
  - Enable/Disable Matrix 2 of 5281
  - Set Lengths for Matrix 2 of 5282
  - Matrix 2 of 5 Check Digit283
  - Transmit Matrix 2 of 5 Check Digit283
- Korean 3 of 5284
  - Enable/Disable Korean 3 of 5284
- Inverse 1D285
- Postal Codes286
  - US Postnet286
  - US Planet286
  - Transmit US Postal Check Digit287
  - UK Postal287
  - Transmit UK Postal Check Digit288
  - Japan Postal288
  - Australia Post289
  - Australia Post Format290
  - Netherlands KIX Code291
  - USPS 4CB/One Code/Intelligent Mail292
  - UPU FICS Postal292
  - Mailmark293
- GS1 DataBar (formerly RSS, Reduced Space Symbology)294
  - GS1 DataBar294
  - GS1 DataBar Limited295
  - GS1 DataBar Expanded296
  - Convert GS1 DataBar to UPC/EAN296
  - GS1 DataBar Security Level297
  - GS1 DataBar Limited Margin Check298
- Composite299
  - Composite CC-C299
  - Composite CC-A/B299
  - Composite TLC-39300
  - Composite Inverse300
  - UPC Composite Mode301
  - Composite Beep Mode302
  - GS1-128 Emulation Mode for UCC/EAN Composite Codes302
- 2D Symbologies303
  - Enable/Disable PDF417303
  - Enable/Disable MicroPDF417303
  - Code 128 Emulation304
  - Data Matrix305
  - Data Matrix Inverse306
  - GS1 Data Matrix307
  - Decode Mirror Images (Data Matrix Only)308
  - Maxicode309
  - QR Code309
  - GS1 QR310
  - MicroQR310
  - Linked QR Mode311
  - Aztec312
  - Aztec Inverse312
  - Han Xin313
  - Han Xin Inverse313
  - Grid Matrix314
  - Grid Matrix Inverse314
  - Grid Matrix Mirrored315
- Redundancy Level316
- Security Level318
  - 1D Quiet Zone Level319
  - Intercharacter Gap Size320
- Macro PDF Features321
  - Macro PDF User Indications321
  - Macro PDF Transmit / Decode Mode Symbols322
  - Flush Macro Buffer323
  - Abort Macro PDF Entry323
Driver’s License Set Up (DS457-DL)325
- Introduction325
- Driver’s License Parsing326
- Parsing Driver’s License Data Fields (Embedded Driver's License Parsing)327
- User Preferences341
- Parsing Rule Example363
  - Embedded Driver's License Parsing ADF Example367
123Scan and Software Tools369
- Introduction369
- 123Scan369
- Advanced Data Formatting (ADF)371
- Multicode Data Formatting (MDF)372
  - Programming a Scanner372
- Preferred Symbol372
Standard Default Parameters373
- Default Parameters373
- Reserved Parameters386
Country Codes387
- Introduction387
- USB Country Keyboard Types (Country Codes)388
Country Code Pages403
- Introduction403
- Country Code Page Defaults403
- Country Code Page Bar Codes407
CJK Decode Control417
- Introduction417
- CJK Control Parameters418
- Unicode/CJK Decode Setup with Windows Host423
Programming Reference427
- Code Identifiers427
  - AIM Code Identifiers427
Sample Bar Codes433
- Code 39433
- UPC/EAN433
  - UPC-A, 100 %433
  - EAN-13, 100 %433
- Code 128434
- Interleaved 2 of 5434
- GS1 DataBar Omnidirectional434
- PDF417434
- Data Matrix435
- Maxicode435
Numeric Bar Codes437
- Numeric Bar Codes437
- Cancel439
ASCII Character Sets441
Index453
