7 - 32 DS457-XX20004ZZWW Fixed Mount Imager Integration Guide

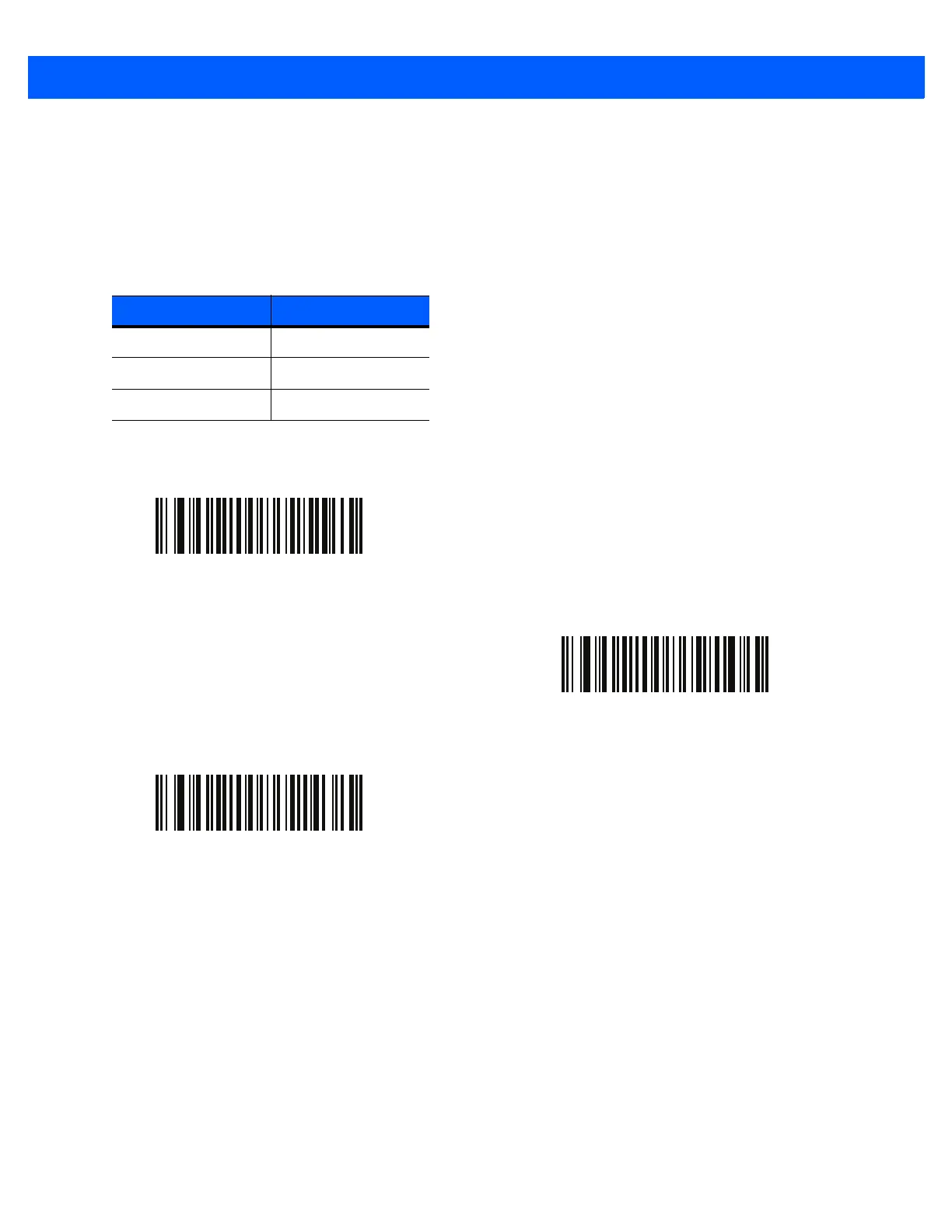

Video Resolution

Parameter # 667 (SSI # F1h 9Bh)

This parameter alters the video resolution before transmission. Rows and columns are removed from the

image, resulting in a smaller video image containing the original content with reduced resolution.

Select one of the following values:

Resolution Value Video Image Size

Full 752 x 480

1/2 376 x 240

1/4 188 x 120

Full Resolution

(0)

1/2 Resolution

(1)

*1/4 Resolution

(3)
