Symbologies12 - 101

Grid Matrix Mirrored

Parameter # 1736 (SSI # F8h 06h C8h)

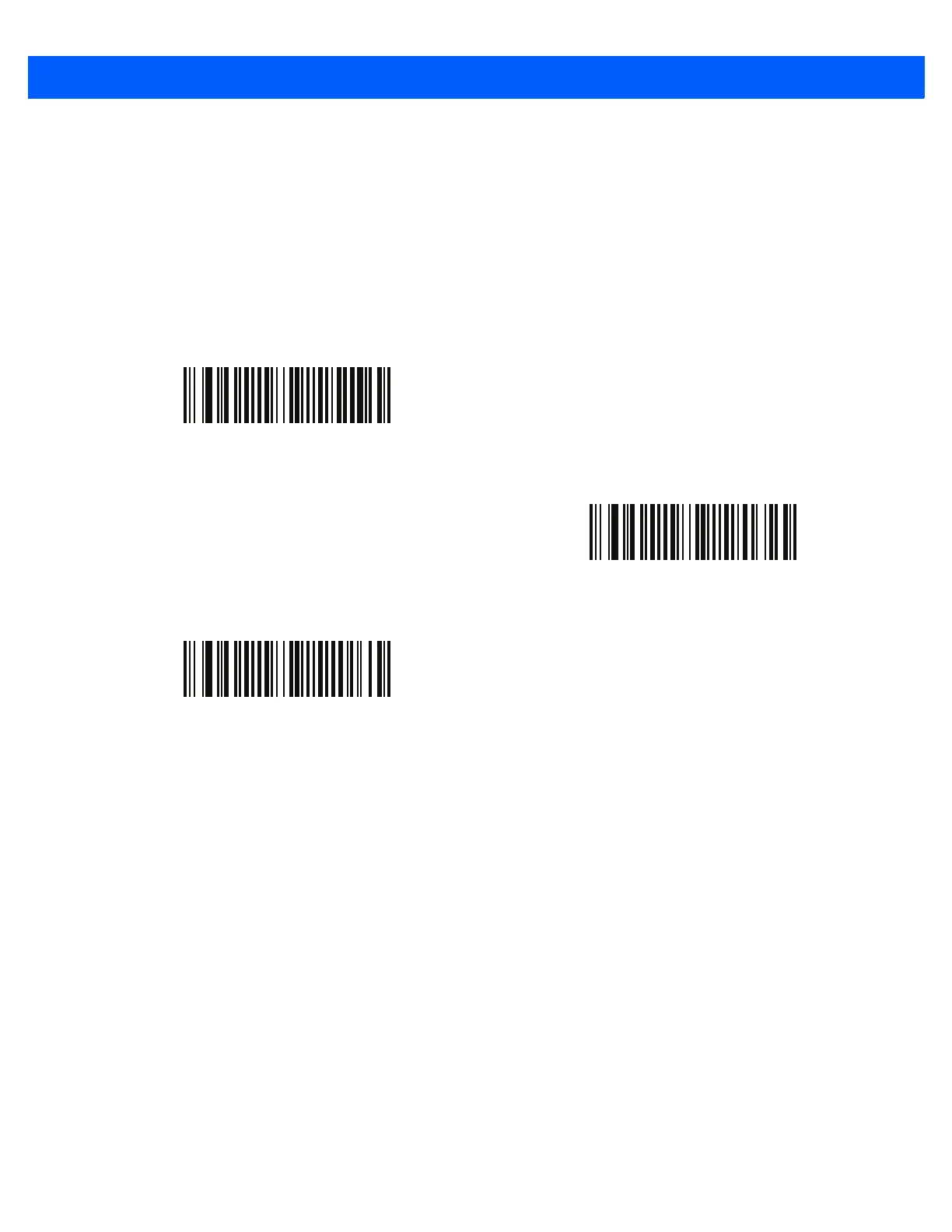

Select a mirror image Grid Matrix setting:

•

Non-Mirrored Only - the imager decodes non-mirrored Grid Matrix bar codes only.

•

Mirrored Only - the imager decodes mirrored Grid Matrix bar codes only.

•

Autodetect - the imager decodes both mirrored and non-mirrored Grid Matrix bar codes.

*Non-Mirrored Only

(0)

Mirrored Only

(1)

Mirrored Autodetect

(2)
