Zebra DS457 Series User Manual

Installation 2 - 15
Recommended Exit Window Information

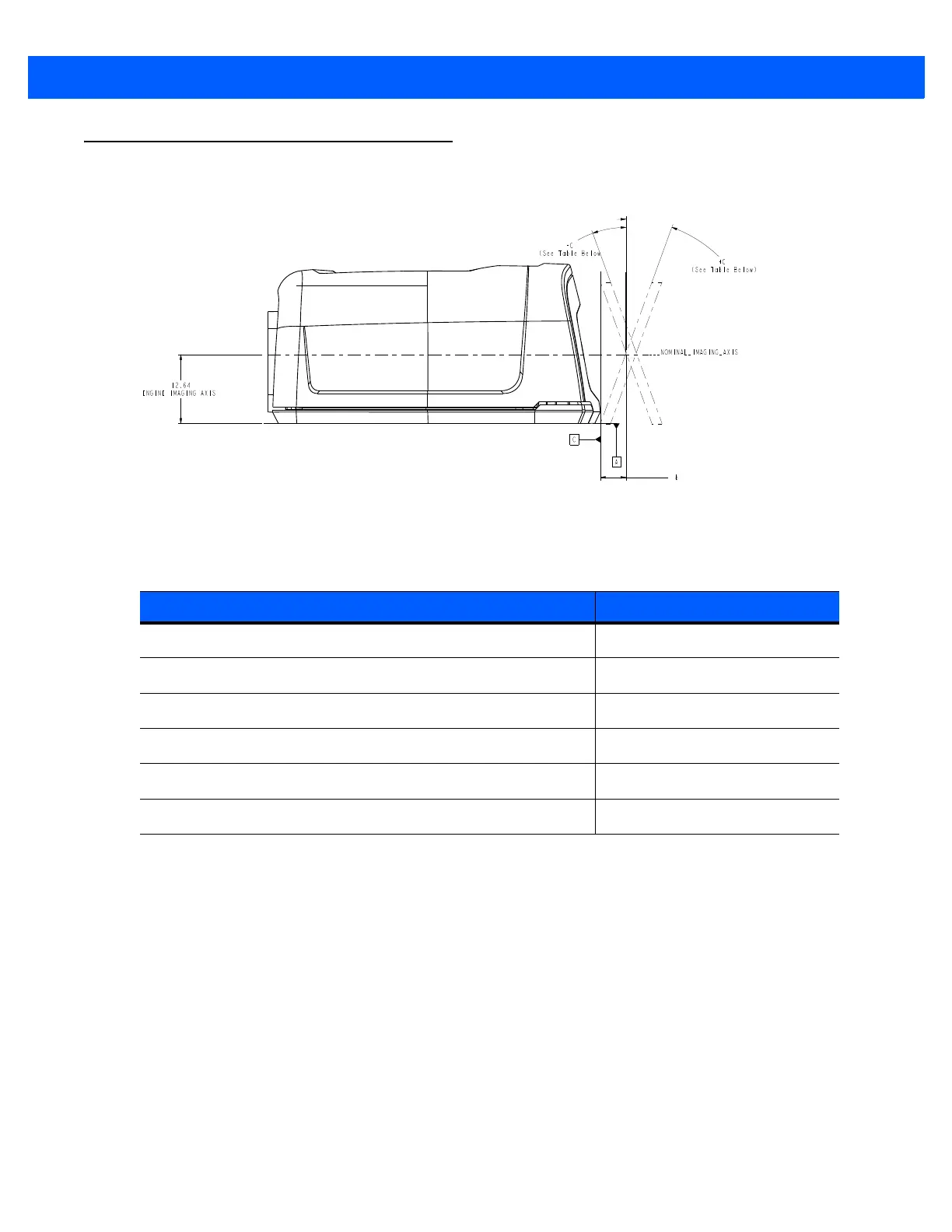

Figure 2-12 Window Distances
Exit Window Notes
• Integration tolerances are not included.
• Ensure the window size is large enough to cover the engine clear aperture specified in Figure 2-11 plus
mounting tolerances of the window relative to the engine.
Table 2-4 Recommended Exit Window Information - Tilted Window
External Window Specification Minimum Window Angle
Non-coated, minimum window positive tilt (+c)
31
o
Non-coated, minimum window negative tilt (-c)
31
o
AR coated, one side, minimum window positive tilt (+c)
26
o
AR coated, one side, minimum window negative tilt (-c)
27
o
AR coated, two sides, minimum window positive tilt (+c)
23
o
AR coated, two sides, minimum window negative tilt (-c)
17
o
Note: Minimum external window distance
b = 5 mm (see Table 2-4).
