Symbologies 12 - 27

UCC Coupon Extended Code

Parameter # 85 (SSI # 55h)

When enabled, this parameter decodes UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with

digit ‘99’, and UPC-A/EAN-128 Coupon Codes. UPCA, EAN-13, and EAN-128 must be enabled to scan all

types of Coupon Codes.

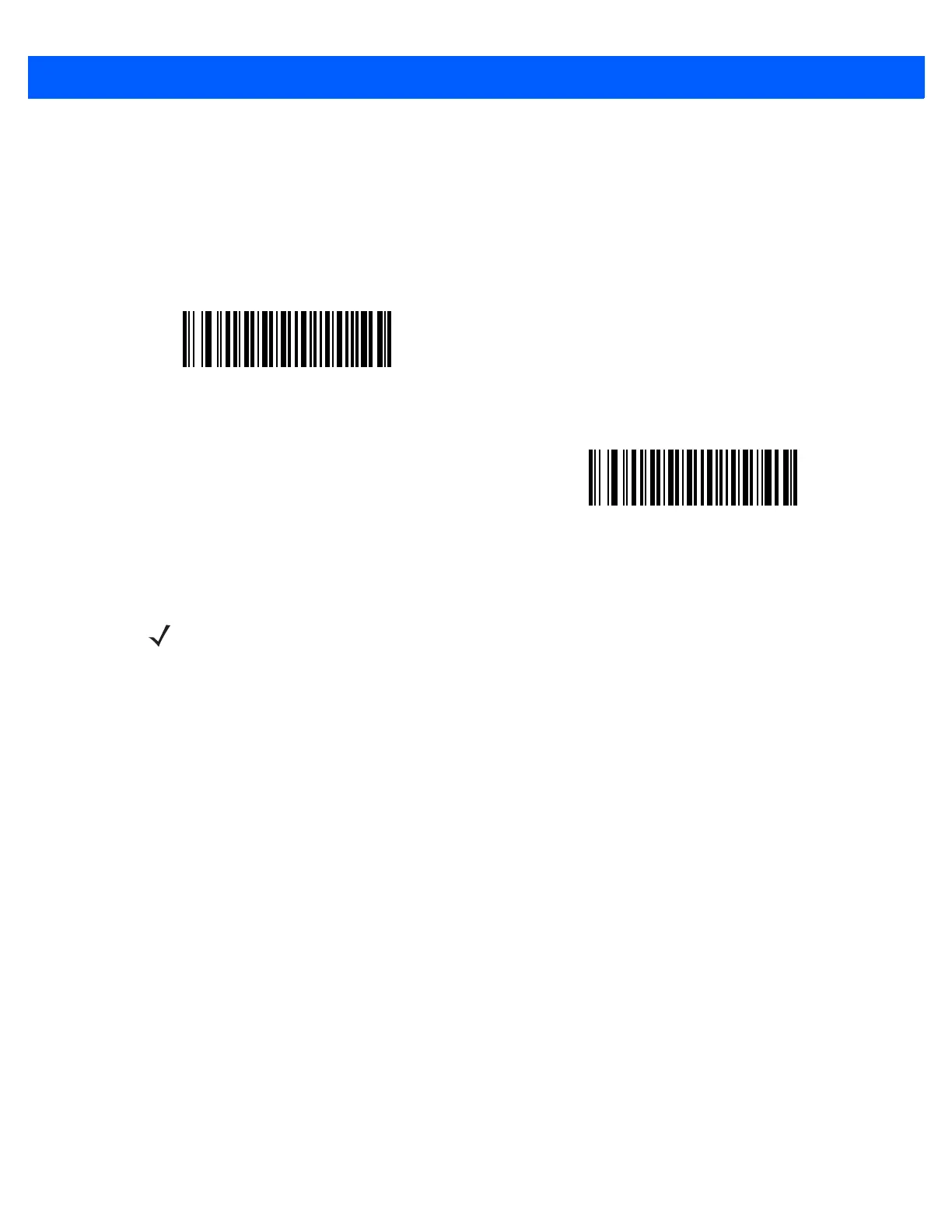

Enable UCC Coupon Extended Code

(1)

*Disable UCC Coupon Extended Code

(0)

NOTE Use the Decode UPC/EAN Supplemental Redundancy parameter to control autodiscrimination of the

EAN128 (right half) of a coupon code.
