OCR Programming 11 - 11

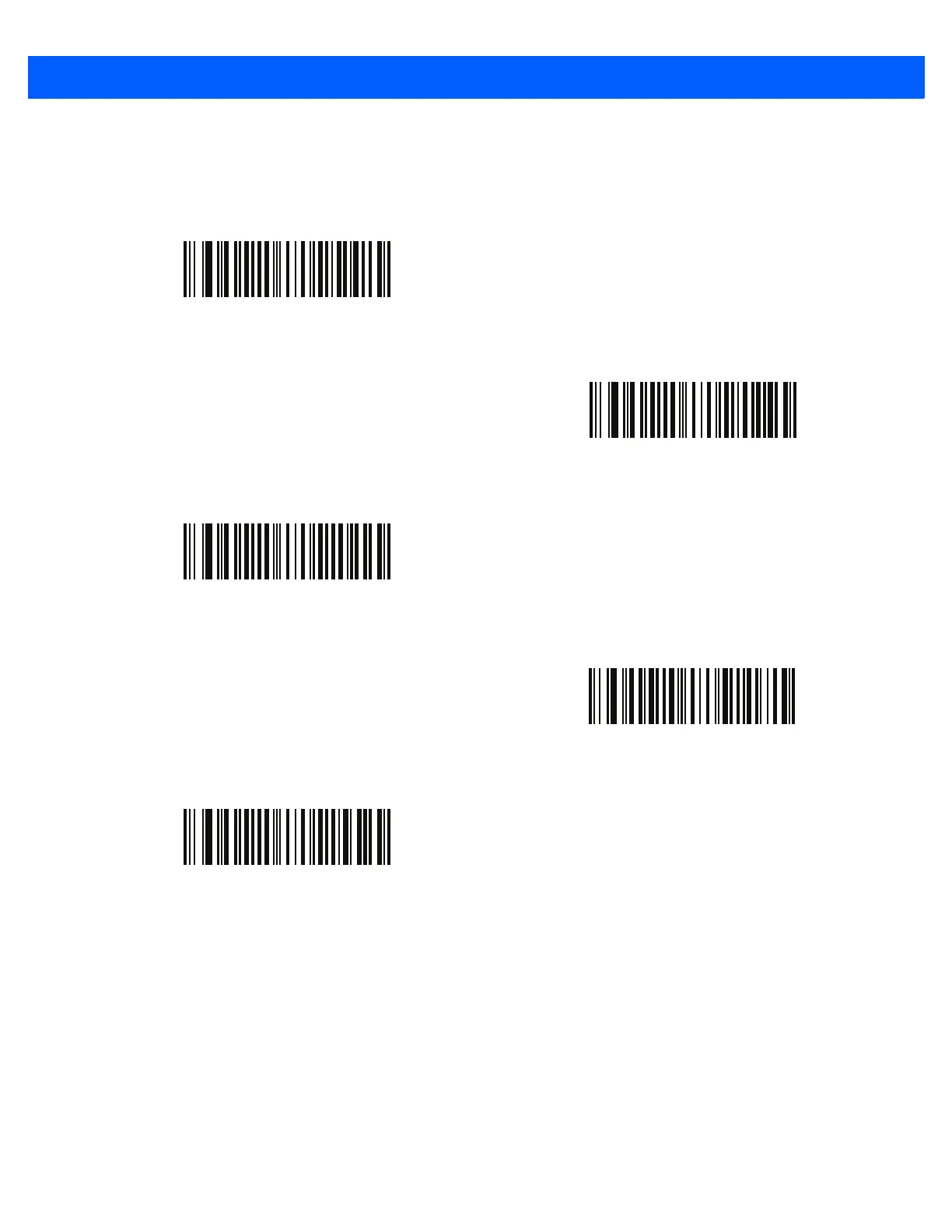

OCR Orientation (continued)

*OCR Orientation 0

(0)

OCR Orientation 270

Clockwise

(1)

OCR Orientation 180

Clockwise

(2)

OCR Orientation 90

Clockwise

(3)

OCR Orientation Omnidirectional

(4)
