Zebra MC33 Series Integrator Guide

Datawedge Configuration
128

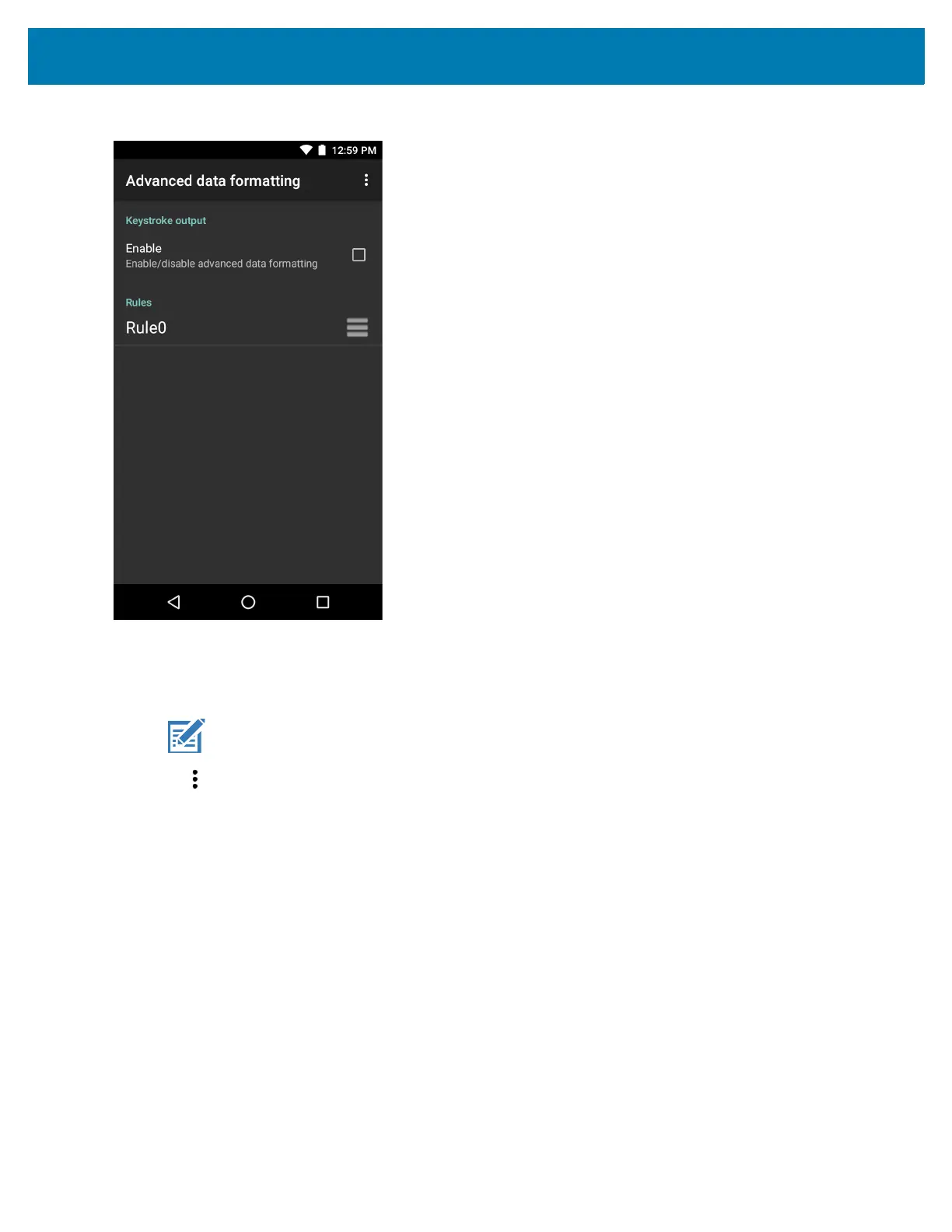

Figure 96 Advanced Data Formatting Screen
4. Touch the Enable checkbox to enable ADF.
Creating a Rule
1. Touch .
2. Touch New rule.
3. Touch the Enter rule name text box.
4. In the text box, enter a name for the new rule.
5. Touch OK.
Defining a Rule
1. Touch the newly created rule in the Rules list.
NOTE: By default, Rule0, is the only rule in the Rules list.

Zebra MC33 Series Specifications

General

Connectivity	USB 2.0, Bluetooth
Touch Panel	Capacitive, glove and wet touch support
Keypad Options	Touchscreen or physical keypad
Scanning	1D/2D barcode scanning
Wireless LAN	IEEE 802.11 a/b/g/n/ac
Operating Temperature	-20° C to 50° C
