Un-powered Forklift Mount
The Un-powered Forklift Mount allows the user to place the MC33XX in a holder while installed on a forklift.
However, it does not provide charging or communication to the terminal. The Forklift Mount can be installed on a
square surface or roll bar of a forklift and supports portrait (vertical) orientation.

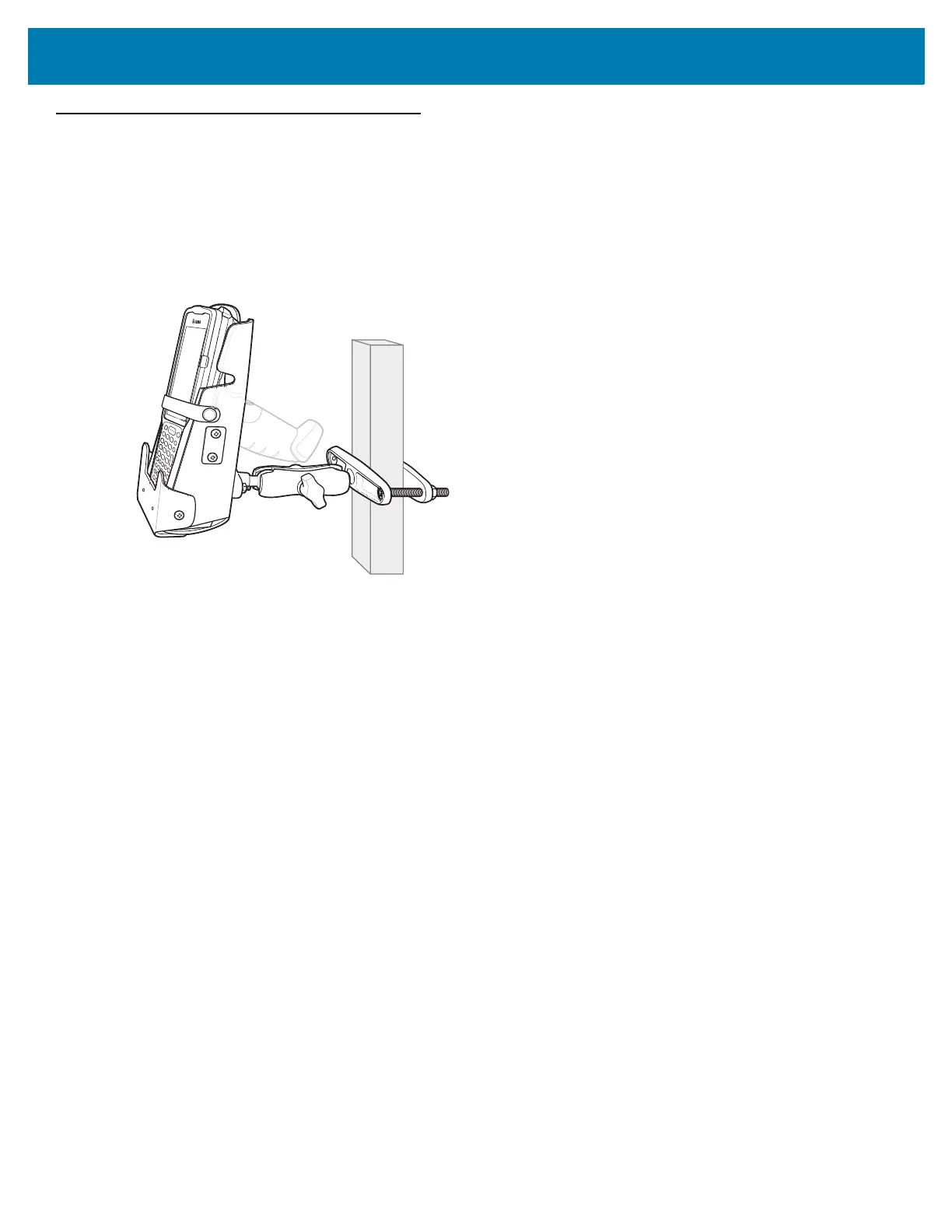

Figure 59 Forklift Mount
Installation
To assemble the Forklift Mount:
1. Secure the RAM Clamp Base to the Forklift Mounting Surface.
2. Attach the RAM Socket Arm to the RAM Clamp Base and Forklift Mount Holder.
3. Turn the Socket Arm hand-screw clockwise until tight.
4. Insert the device in the Forklift Mount Holder.
5. Secure the device with the rubber strap and snap into place.
