Zebra MC33 Series Integrator Guide

Datawedge Configuration
97
Profile0 is the default profile and is used when no other profile can be applied.

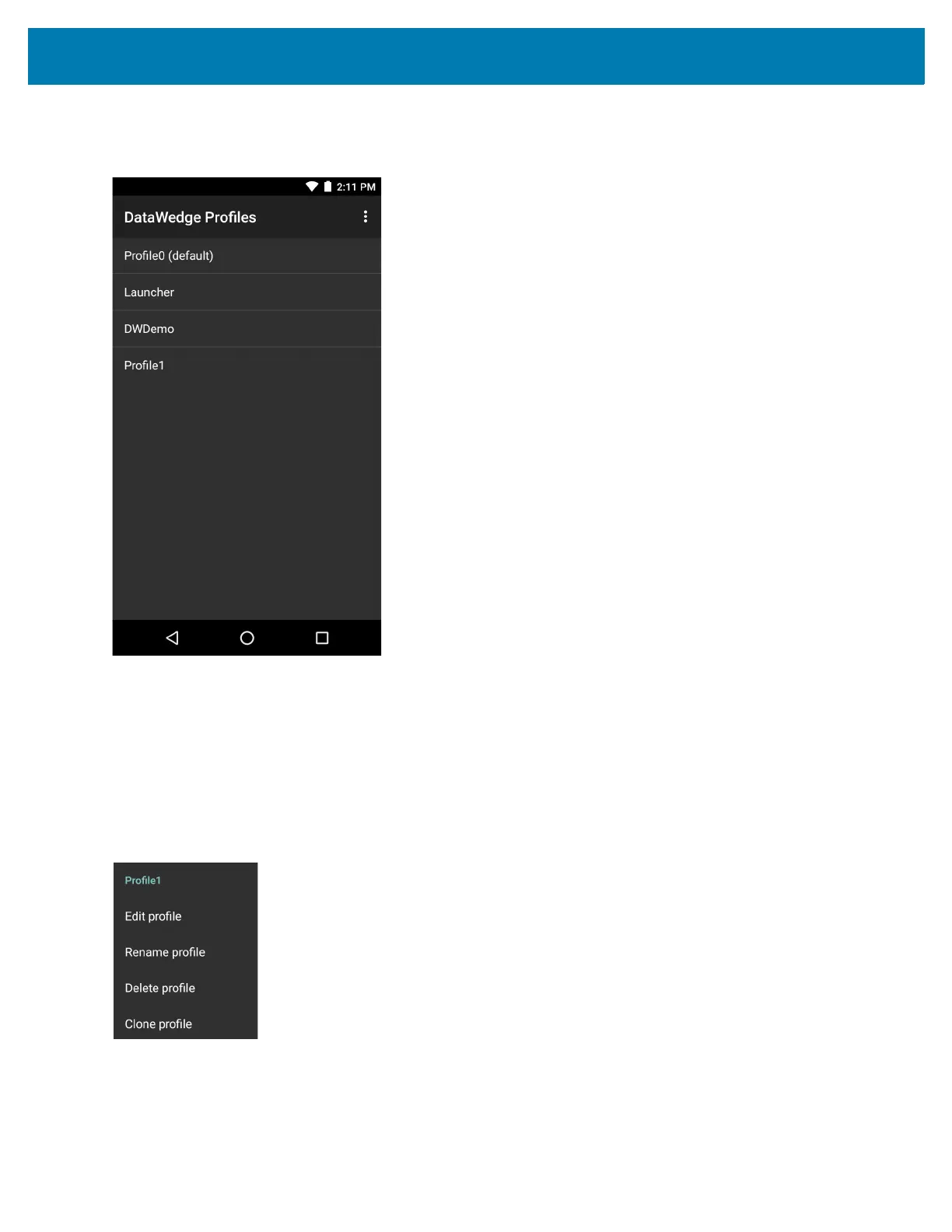

Figure 78 DataWedge Profiles Screen
Profile names are color coded. Enabled profiles are white and disabled profiles are gray.
To configure a profile touch the profile name.
Profile Context Menu
Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected
profile.
Figure 79 Profile Context Menu
The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.

Zebra MC33 Series Specifications

General

Connectivity	USB 2.0, Bluetooth
Touch Panel	Capacitive, glove and wet touch support
Keypad Options	Touchscreen or physical keypad
Scanning	1D/2D barcode scanning
Wireless LAN	IEEE 802.11 a/b/g/n/ac
Operating Temperature	-20° C to 50° C
