Zebra MC33 Series - Installing the MC33 XX-RS Battery

Getting Started
22

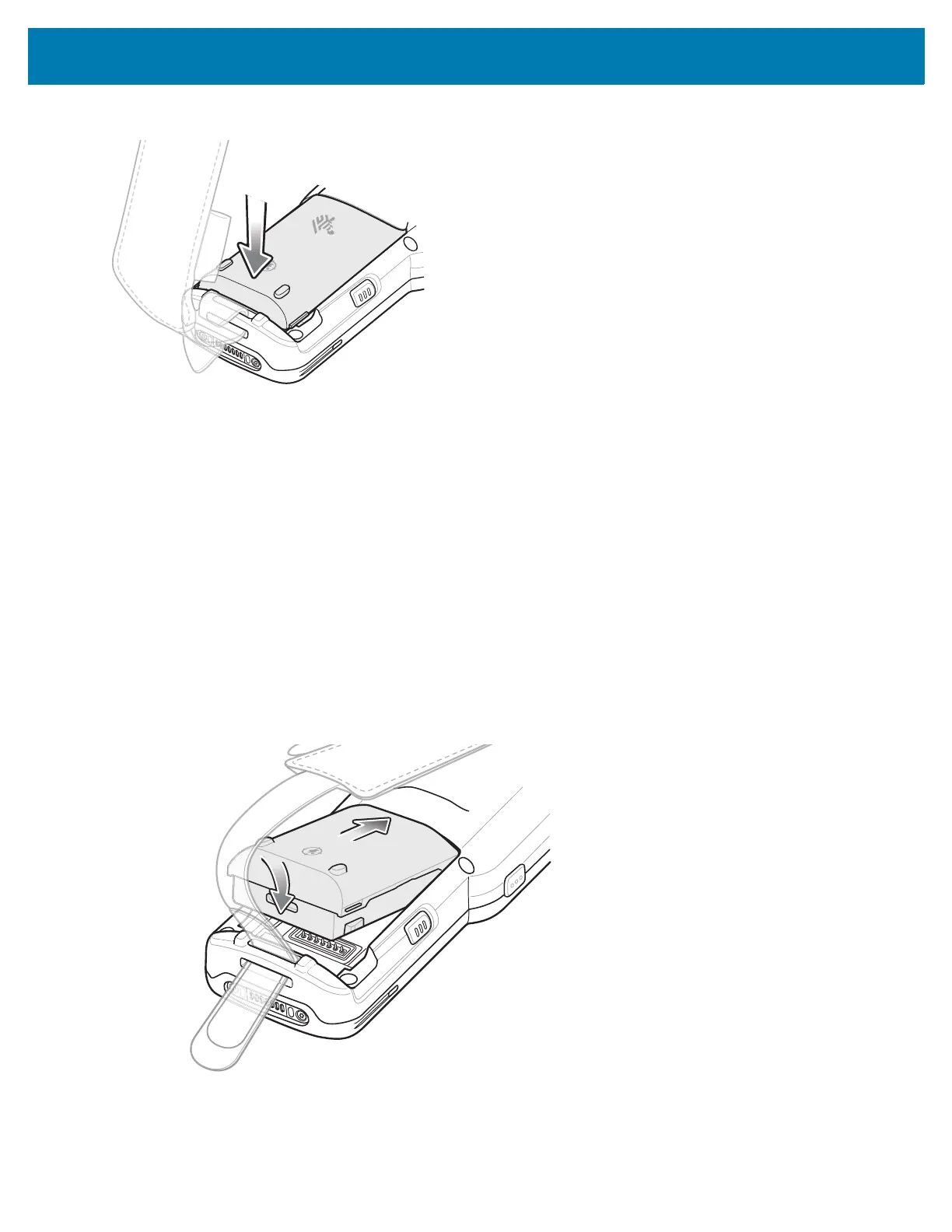

Figure 9 Press Battery Down
5. Tighten the hand strap, if needed.
6. Press the Power button to turn on the device.
Installing the MC33XX–R/S Battery
The MC33XX-R/S is compatible with the following batteries:
• MC33XX 2740 mAh PowerPrecision+ standard battery.
• MC33XX 5200 mAh PowerPrecision+ extended battery.
• MC32N0 2740 mAh PowerPrecision standard battery.
• MC32N0 5200 mAh PowerPrecision extended battery.
1. Loosen the hand strap, if needed.
2. Align the top of the battery into the battery compartment.
Figure 10 Insert Battery
3. Rotate the bottom of the battery into the battery compartment.
