Zebra MC33 Series Integrator Guide

Settings
172

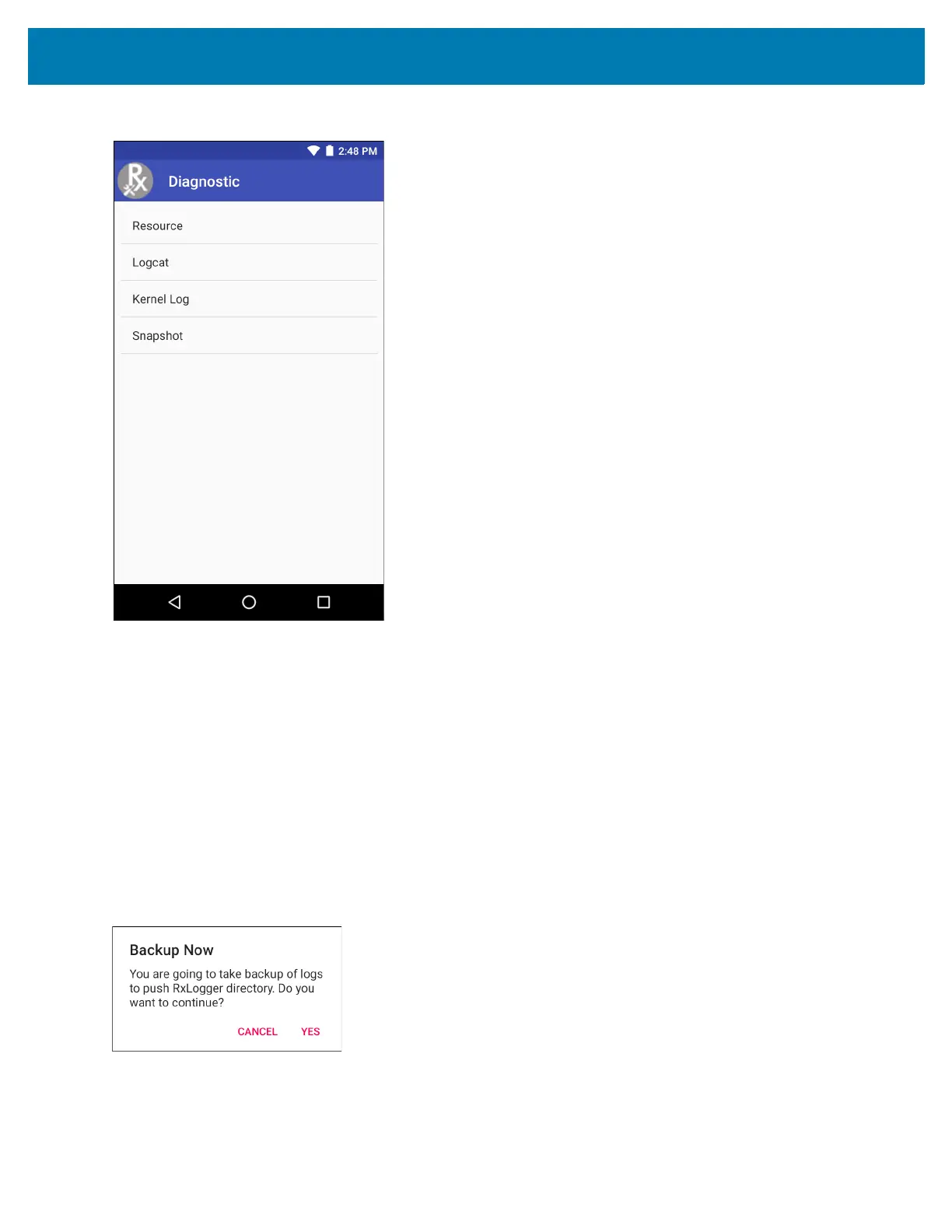

Figure 118 Diagnostic Window
• Resource - View all resources.
• Logcat - View all the Logcat files. Messages are colored according to flags. Verbose messages is orange
text, Assert messages are in brown text, Fail messages are in purple text, Warning messages are in yellow
text, information messages are in blue text, debug messages are in green text, and error messages are in
red.
• Kernel Log - View all the Kernel Logs.
• Snapshot - View all the Snapshot.
Backup
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default contains all
the RxLogger logs stored in the device.
Figure 119 Backup Message
Touch Yes to save the backup data.

Zebra MC33 Series Specifications

General

Connectivity	USB 2.0, Bluetooth
Touch Panel	Capacitive, glove and wet touch support
Keypad Options	Touchscreen or physical keypad
Scanning	1D/2D barcode scanning
Wireless LAN	IEEE 802.11 a/b/g/n/ac
Operating Temperature	-20° C to 50° C
