Accessories
88

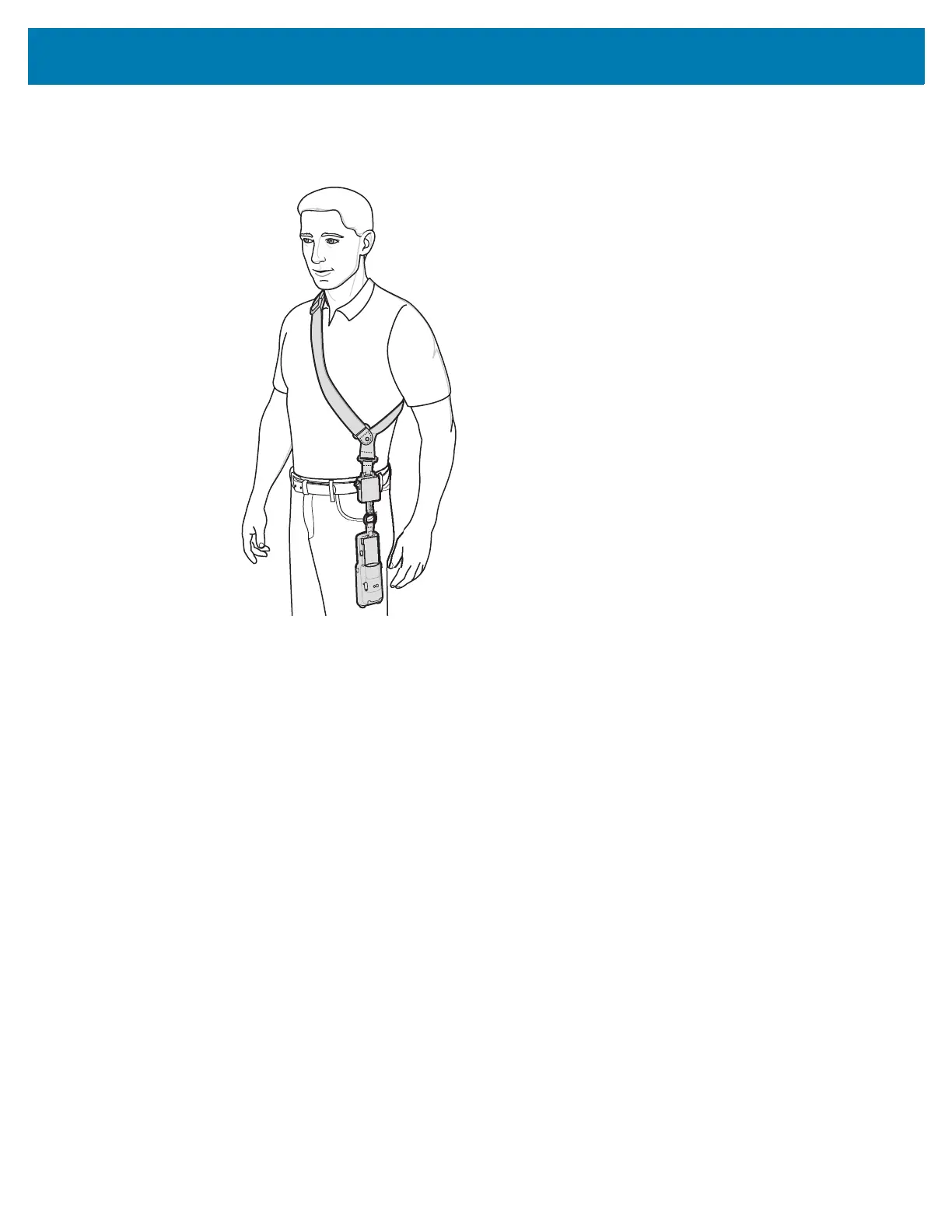

Figure 71 Cross-body Lanyard
2. If needed, slide the Strap Extender to adjust the length of the Cross-body Strap to the desired length.
3. If needed, slide the Shoulder Pad along the Cross-body Strap to adjust the position of the Shoulder Pad for
comfort.
Using the Belt Clip
To use the lanyard on a belt:
1. Detach the Cross-body Strap from the Retractor. To do this, unthread the tab of the Retractor to Strap
Interface from the slot in the Retractor.

Zebra MC33 Series Specifications

General

Connectivity	USB 2.0, Bluetooth
Touch Panel	Capacitive, glove and wet touch support
Keypad Options	Touchscreen or physical keypad
Scanning	1D/2D barcode scanning
Wireless LAN	IEEE 802.11 a/b/g/n/ac
Operating Temperature	-20° C to 50° C
