Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Mag Encoder
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 259

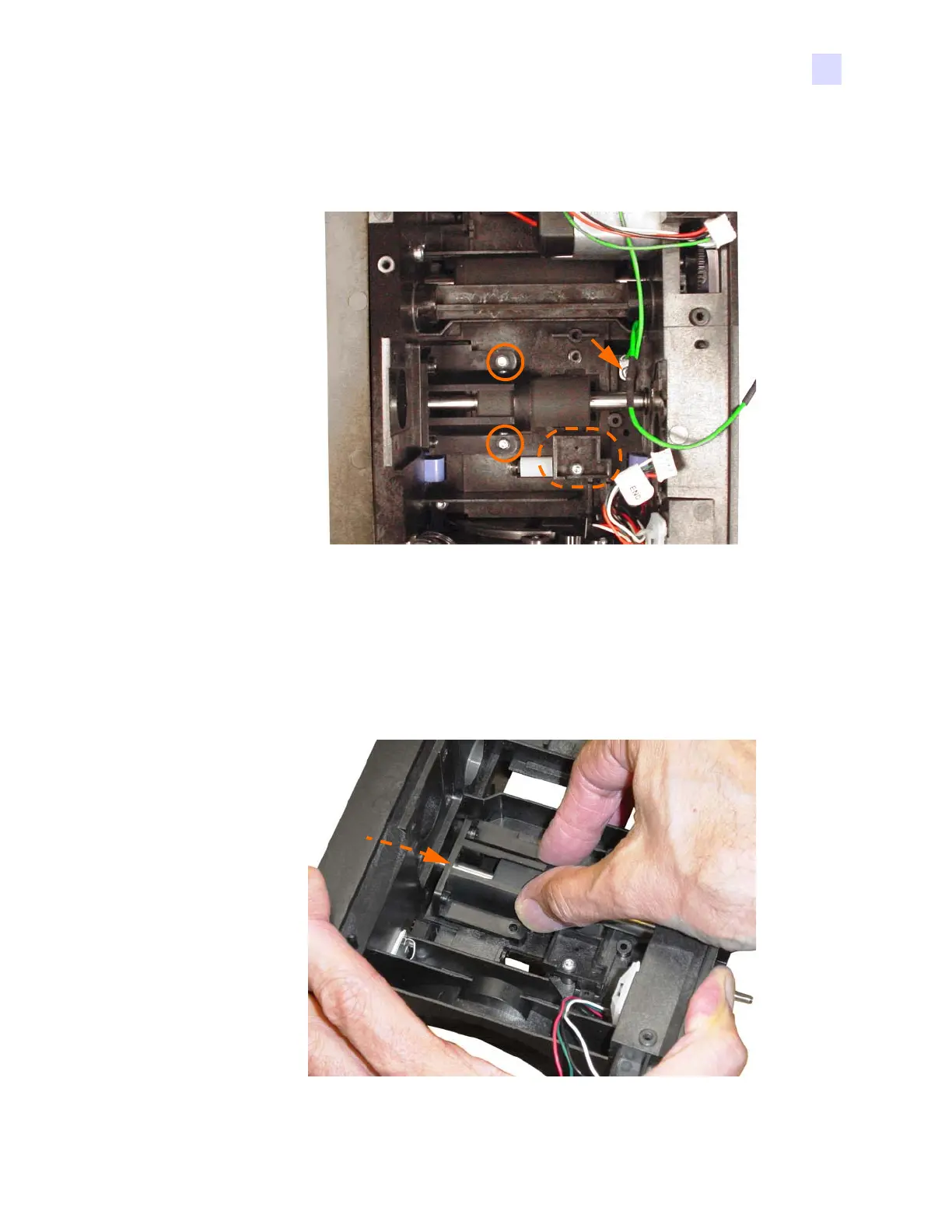

Step 5. With a TORX T10 driver, remove the Sensor Cover (dashed circle below), and
set the screw aside for reassembly. When reinstalling the cover, tighten the screw
to 4.0 in-lbs.
Step 6. Remove the screw (arrow above) holding the ground wire. When reinstalling the
ground wire, tighten the screw to 5.5 in-lbs.
Step 7. With a TORX T10 driver, remove the two screws (circled above) holding the Support
Collar in place. When reinstalling the collar, tighten the screws to 4.0 in-lbs.
Step 8. Slide the Support Collar over the Platen Roller.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
