260 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Mag Encoder

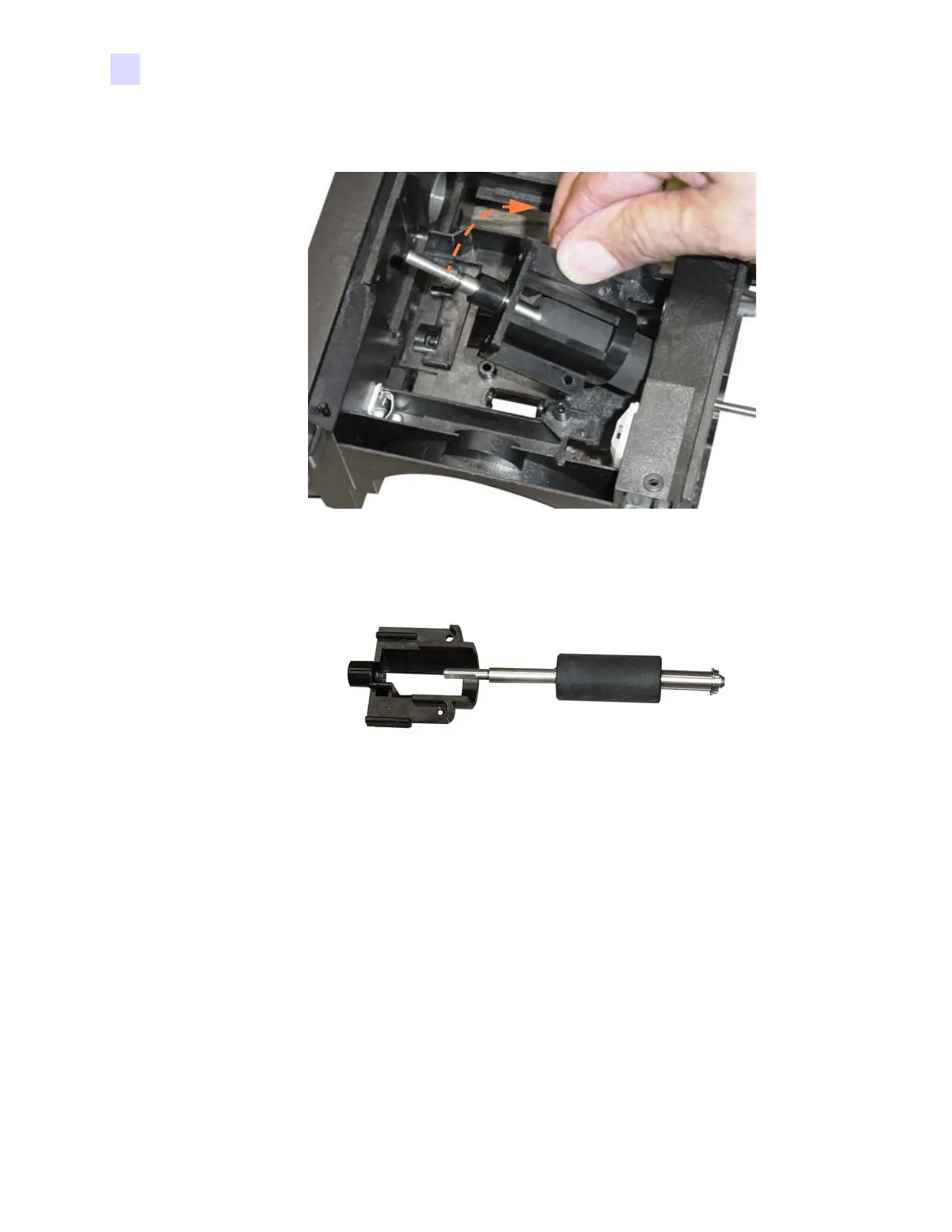

Step 9. Lift the assembly up and out of the Print Engine.
Step 10. Slide the Bearing and the Support Collar off the Platen Roller.
Step 11. Set the Platen Roller, Support Collar, Bearing, and associated hardware aside.
