Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Mag Encoder
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 263
Reassembly
Left Side:
Step 1. Install the Stepper Motor and Collar.
Step 2. Install the replacement Leaf Spring (under the Rocker).
Step 3. Install the Rocker.
Step 4. With a TORX T10 driver, attach the Inertia Wheel to the Pulley with three screws.
Tighten the screws to 5.5 in-lbs.
Step 5. Install the two Pulleys and their associated Belts. Use replacement clips as required.
Step 6. Install the O-Ring.
Step 7. With the Set Screw, attach the Inertia Wheel. Tighten the screw to 2.5 in-lbs.
Step 8. Install the Linkage (Coupling Bar and two Rocker Arms).

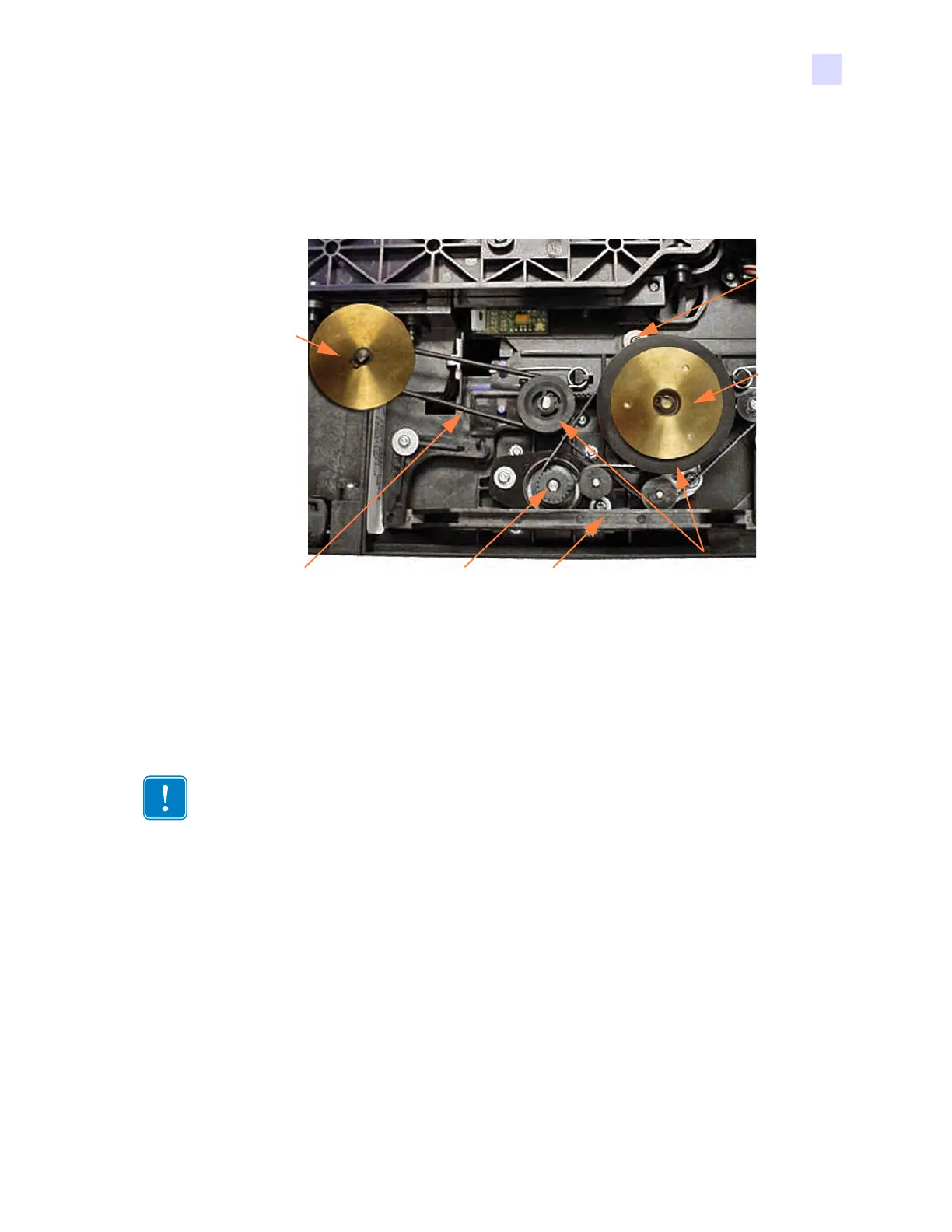

Step 4
Step 2
Step 3
Step 8Step 1
Step 7
Step 5
Step 6
Important • When installing the Belts in the next step, use the Belt Tensioning Tool (Zebra
P/N 900754-003)
to set the proper the belt tension; see Appendix K for details.
