Zebra ZXP Series 3 Service Manual

316 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
MIFARE & Contact
Installation

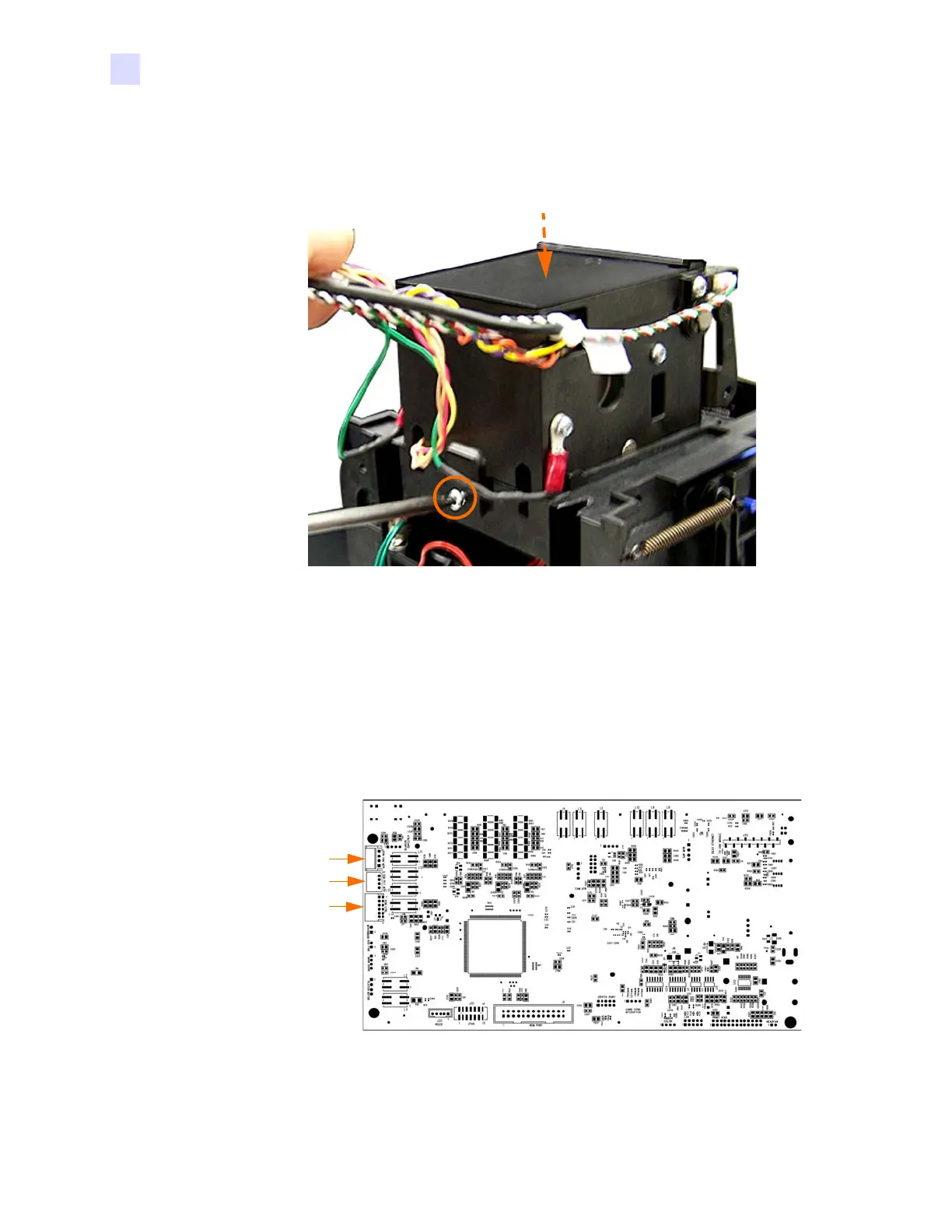

Step 1. Install the Smart Card Module (SCM) by inserting the two hooks on the SCM
into base slots in the Printer.
Step 1. With a TORX T10 driver, install the screw (circled above) that holds the
SCM in place. Tighten the screw to 5.5 in-lb.
Step 2. Route wire bundle through the trough in base to the Main PCBA.
Step 3. Plug in the three connectors from the SCM into J1, J14, and J17 on the Main
PCBA (arrows below).
BOTTOM SIDE
J1
J14
J17

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
