Inlets and valves
6850
6850
Released: April 2004 6850 Series Gas Chromatograph Service Procedures 131

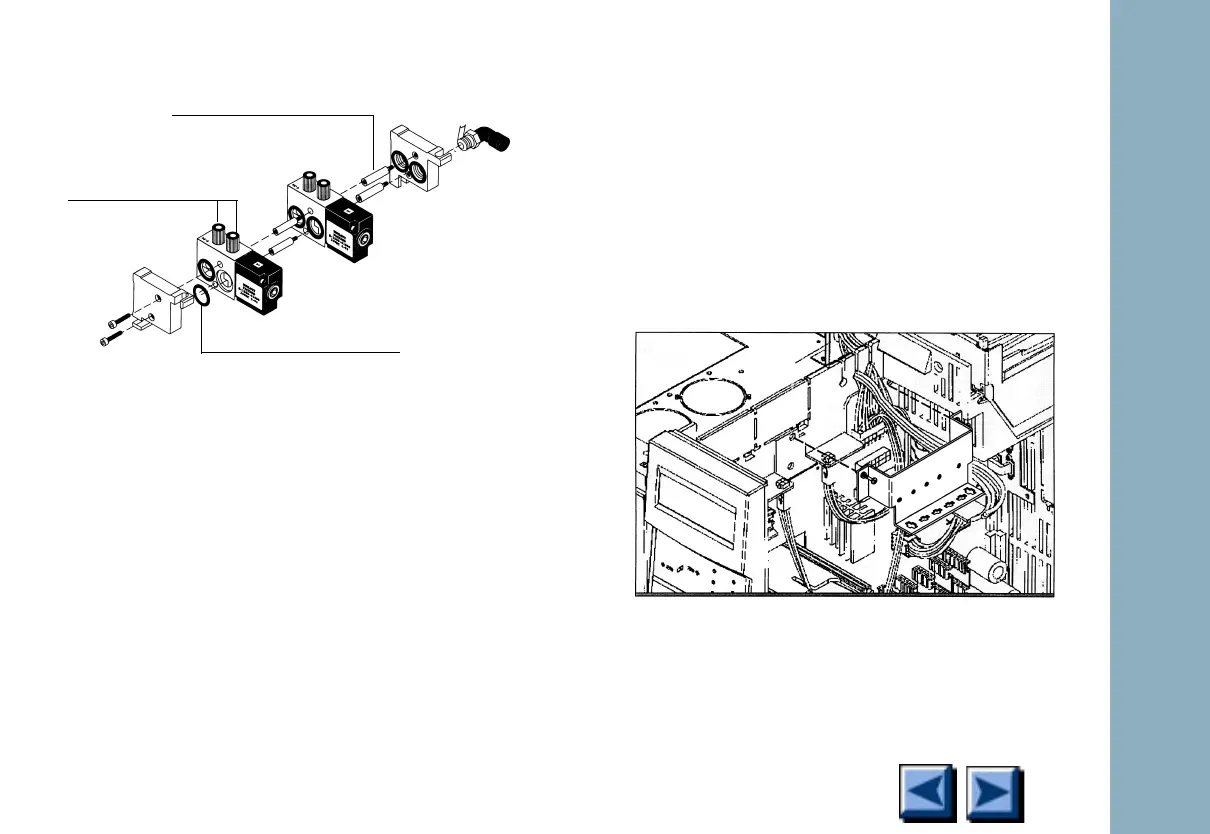

Figure 1-51. Assembling the valve driver
block
5. For each additional valve installed, install
two more mounting posts and a valve driver
with O-rings in the same manner as the first.
6. When all the drivers have been installed,
screw on the other end plate with the two
hex screws as shown.
Replacing the bracket and cabling
NOTE: The valve actuators must be installed
before installing the actuators.
1. Unscrew the valve driver bracket from the
right side of the GC using the two captive
screws.
Figure 1-52. Assembling the valve driver
block
Mounting posts
O-ring
Screw plugs
(may not
be
present)
