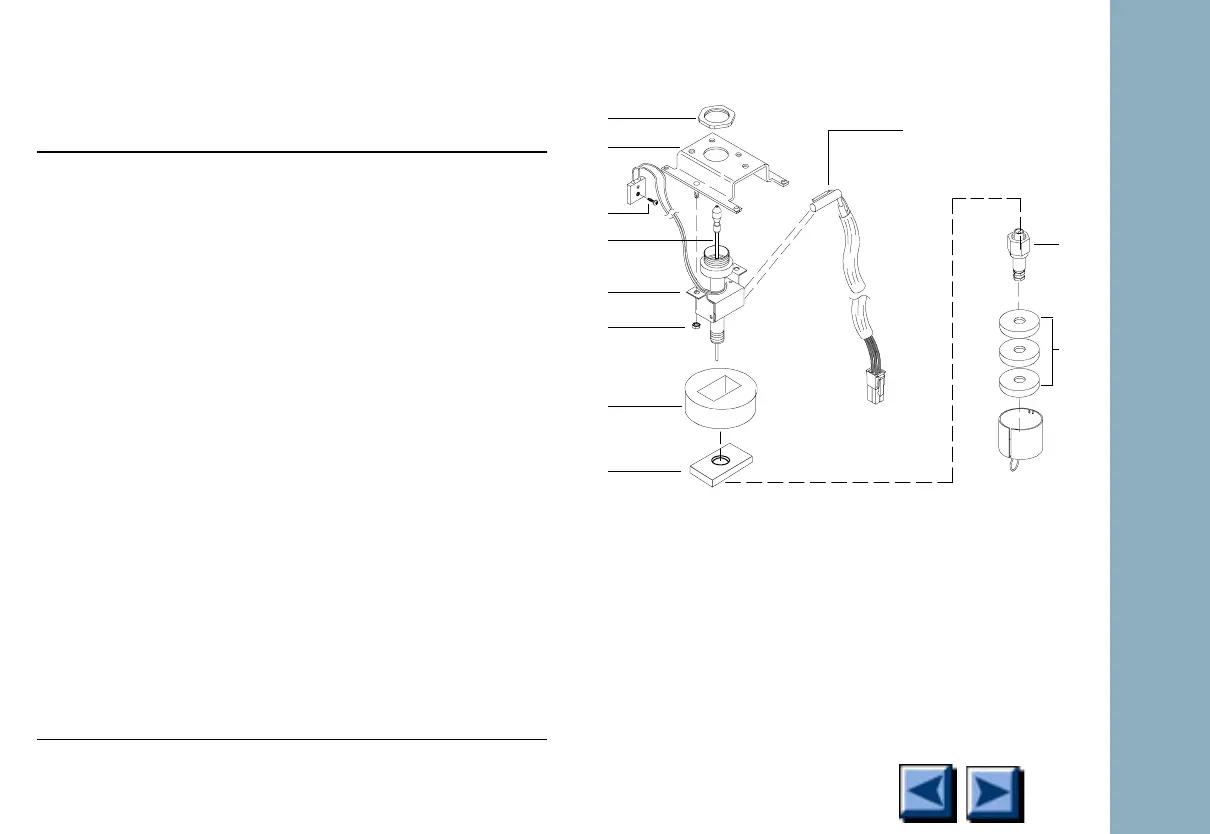

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 144

Flame ionization detector,

continued

Description Part no. Qty.

15. Screw, M4 × 10 mm, Torx, T-20

0515-2495 5

23. Base spanner nut 19231-20990 1

24. Thermal strap G1531-00100 1

25. Jets: 1

– Capillary column (0.011-inch id) 19244-80560 1

– Packed column (0.018-inch id) 18710-20119 –

– High temp (for use in simulated

distillation, 0.018-inch id)

19244-80620 –

26. Base weldment G1531-80580 1

27. Heater/Sensor assembly

G1531-61140 1

28. Screw, M4

× 0.7 25 mm

0515-2712 2

29. FID block insulation G1531-00030 1

30. FID seal insulation G1531-00160 1

31. Packed FID column adapters:

– FID capillary column 19244-80610 –

– FID 1/8-inch packed column 19231-80520 –

– FID 1/4-inch packed column 19231-80530 –

32. Nut warmer insulation 19234-60715 3

33. Nut warmer cup assembly 19234-60700 1
