Troubleshooting

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 323

Power distribution

Use the following figures as a guide to trouble-

shooting:

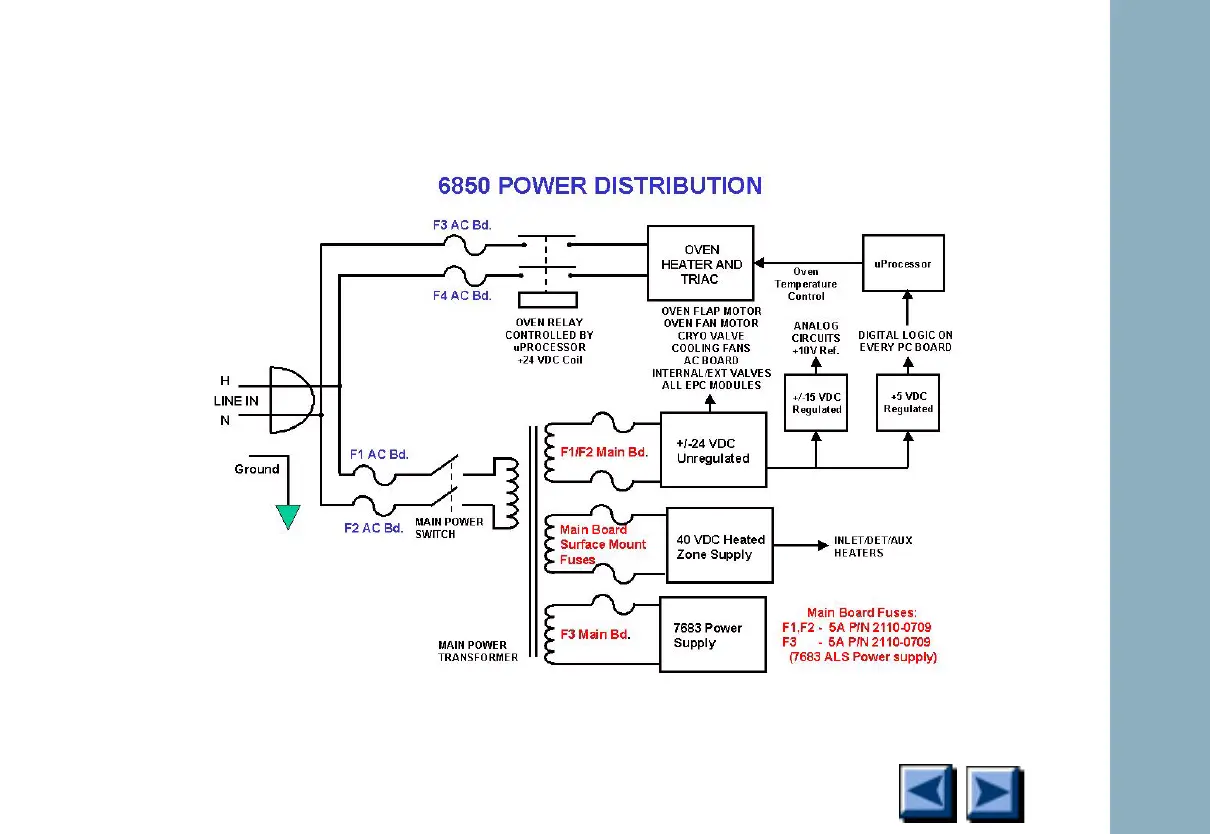

Figure 1-3. Power distribution

AC board fuses

(see AC Board Assembly)
