Troubleshooting

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 327

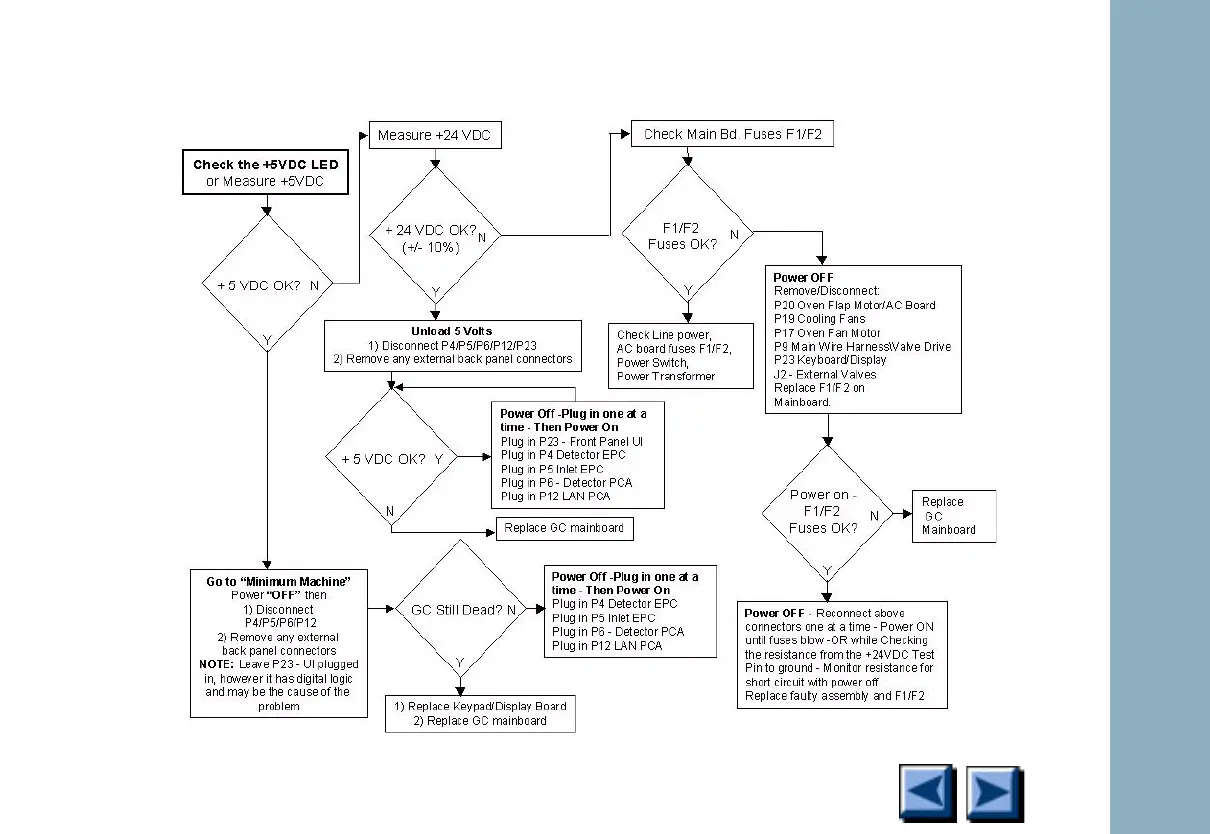

3. Use the following flow chart to determine

the root cause of the problem:
