Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 65

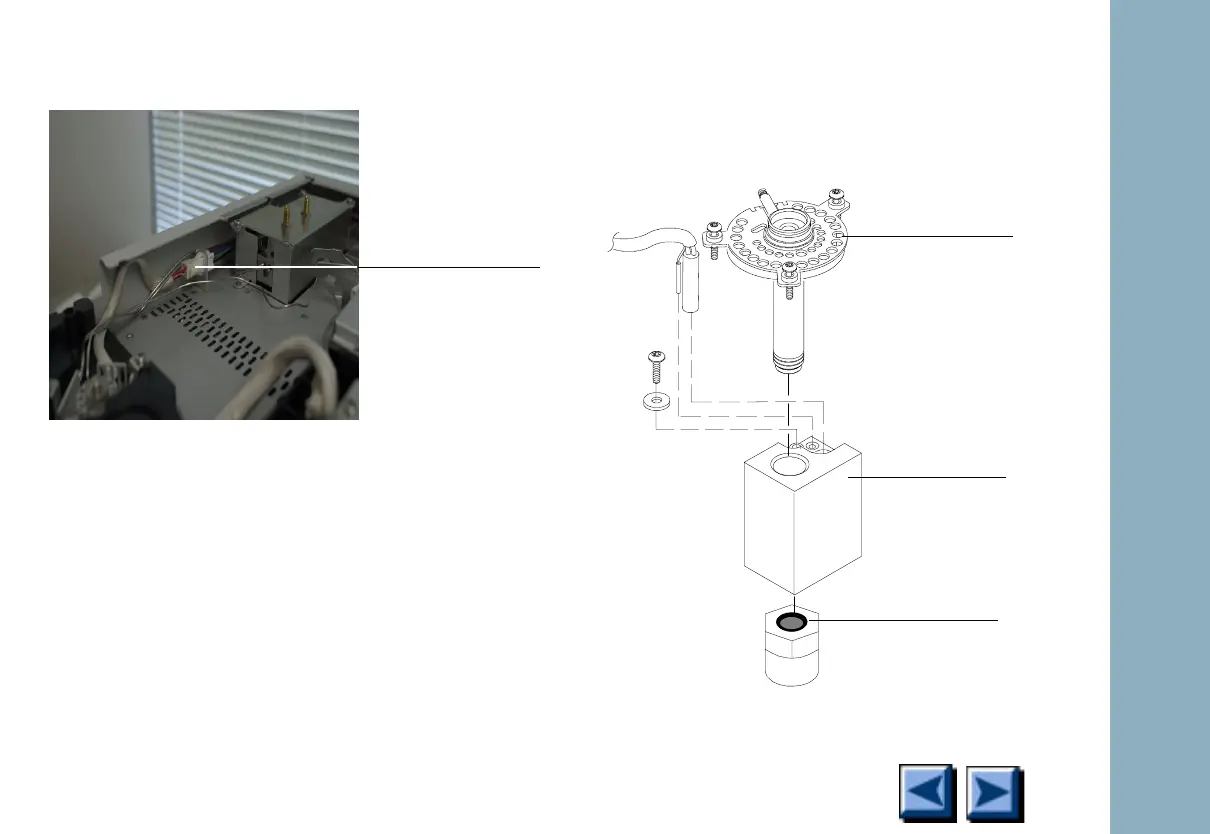

11. Disconnect the inlet heater/sensor connector

from the wiring harness.

12. Lift out the inlet assembly.

13. Remove the 3/4-inch nut on the bottom of

the heater block assembly and slide the

heater block assembly off of the shell weld-

ment.

Disconnect

cable

heater/sensor

Shell weldment

Heater block

3/4-inch nut
