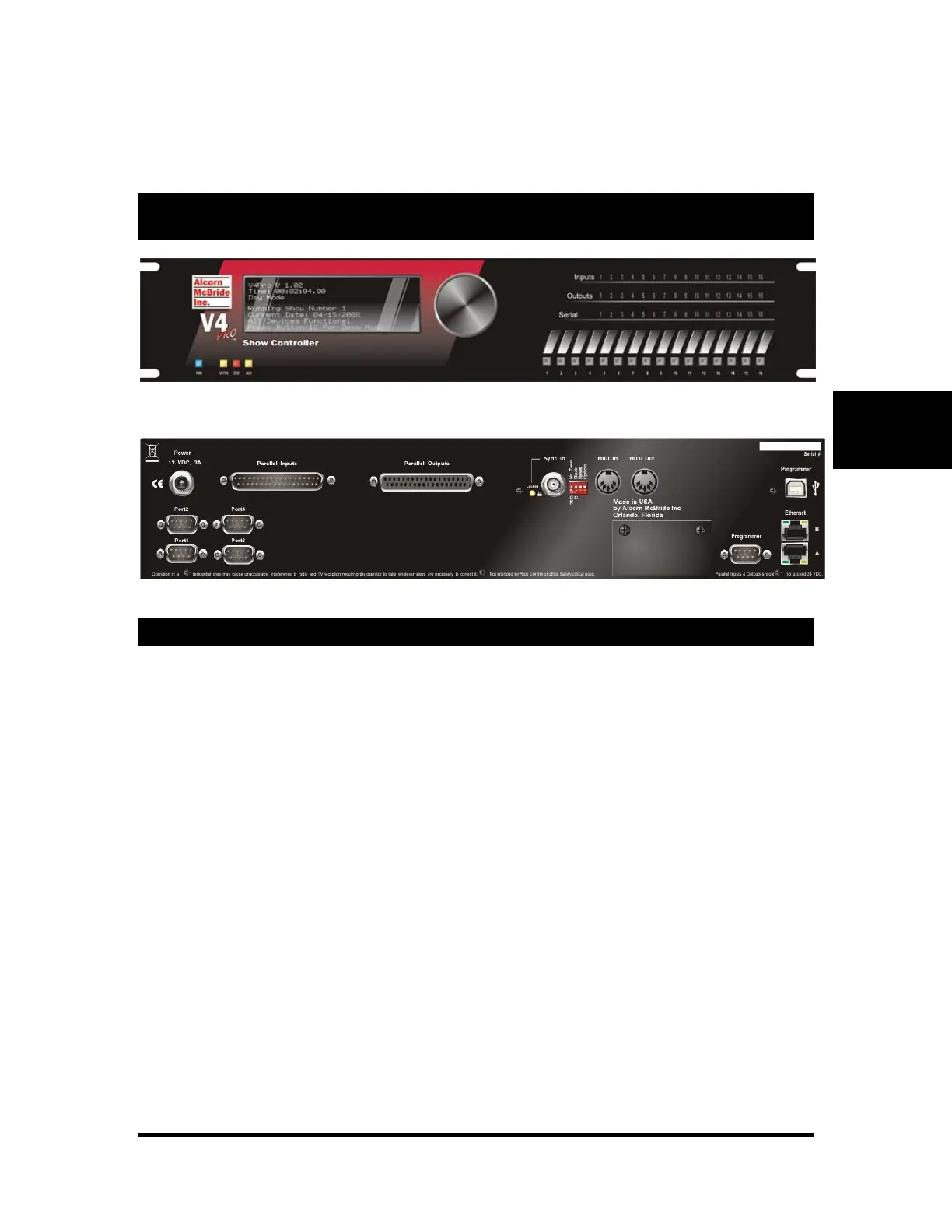

Figure 9- Front View
Figure 10 - Rear View
Specifications
Size and Weight:
Standard 2U rack mount (3.5" x 17" x 10.5"), 10 lbs
Power:
12 VDC at 3 amps. An external power supply is included
with the V4Pro and will provide the required input power.
The power supply is rating is 100 to 250 VAC, 50 to 60 Hz,
25-watts maximum. UL listed Class 2 power adapter
Environment:
0 to 38 C (32 to 100 F)
0 to 90% relative humidity, non-condensing
Front Panel:
8x40 VFD Display
Power LED
Vsync LED
Error LED
Acknowledge (ACK) LED
4 Serial Activity LEDs
16 Input Status LEDs
16 Output Status LEDs
16 Pushbuttons
Rear Panel:
Programming Port DB-9M
4 Serial Ports DB-9M
MIDI Input 5-pin DIN Female
MIDI Output 5-pin DIN Female
Discrete Inputs DB-37M
Discrete Outputs DB-37F
NTSC or PAL Sync Input BNC
