Serial Port (RS-232)
The VCore provides a serial port for controlling show related devices.
The 3pin serial port on the VCore can be used as either a “programming port” to connect and
receive scripts, or a standard “device” port to control external devices.

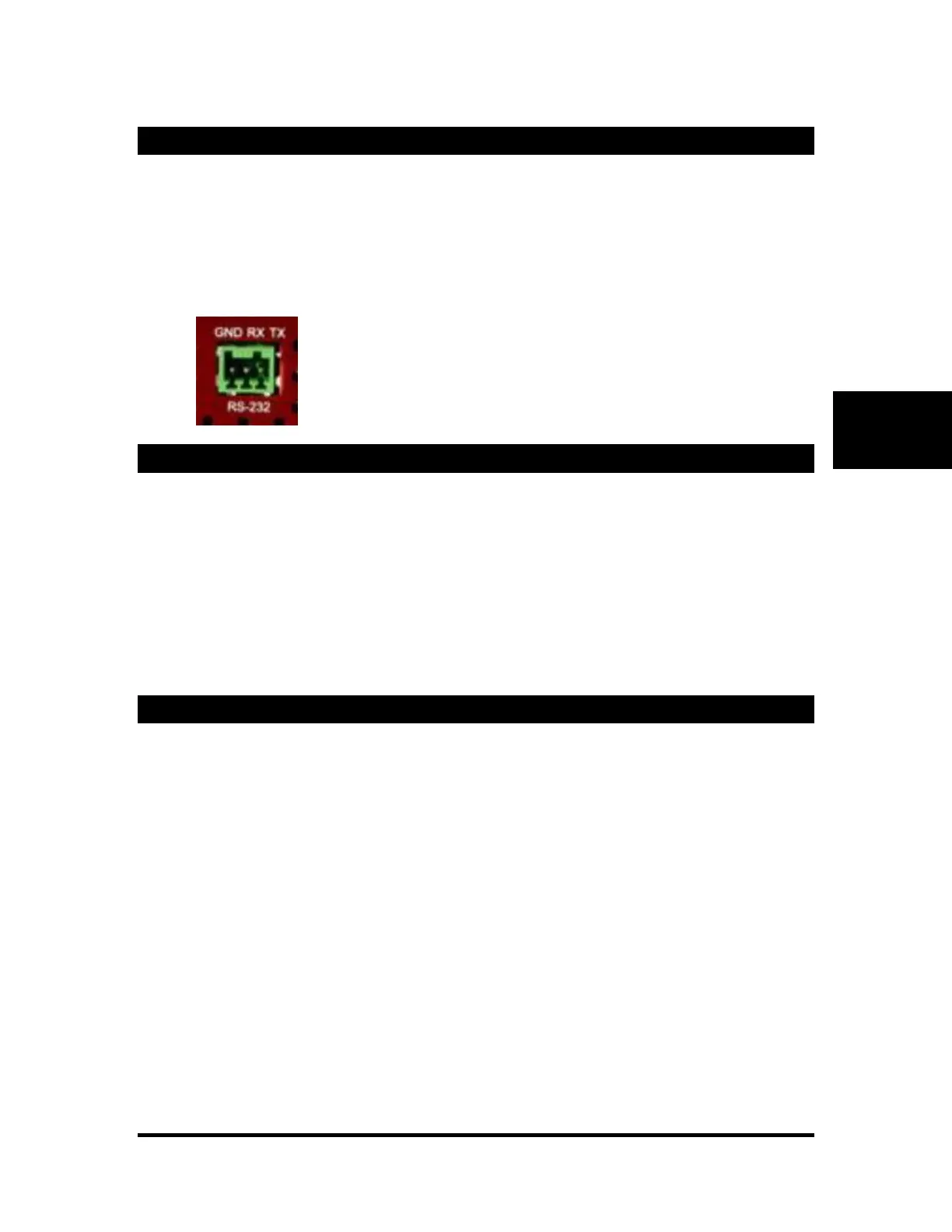

Serial port wiring is “GND, RX, TX” from left to right.
(When facing connector with Outputs connector on the left and Ethernet jack on the right)
Ethernet Ports
There is one Ethernet port available on the VCore. For additional information on configuring and
using Ethernet see the sections on Ethernet and Networking Primer at the end of this manual. For
Cable pin-out, see the Ethernet section of the V16Pro manual.
The protocols available on the VCore are currently: Ethernet IP Client (CIP), TCP Client, TCP
Server, ModBus TCP, HTTP (Custom web pages), FTP server, DHCP, NTP, and SMTP Client.
These protocols can be accessed using the custom product files for a particular device, or
sometimes by using script commands directly in the V16Pro.
USB
The USB Port is used for programming and Live Mode only. The driver can be installed with
WinScriptLive.
