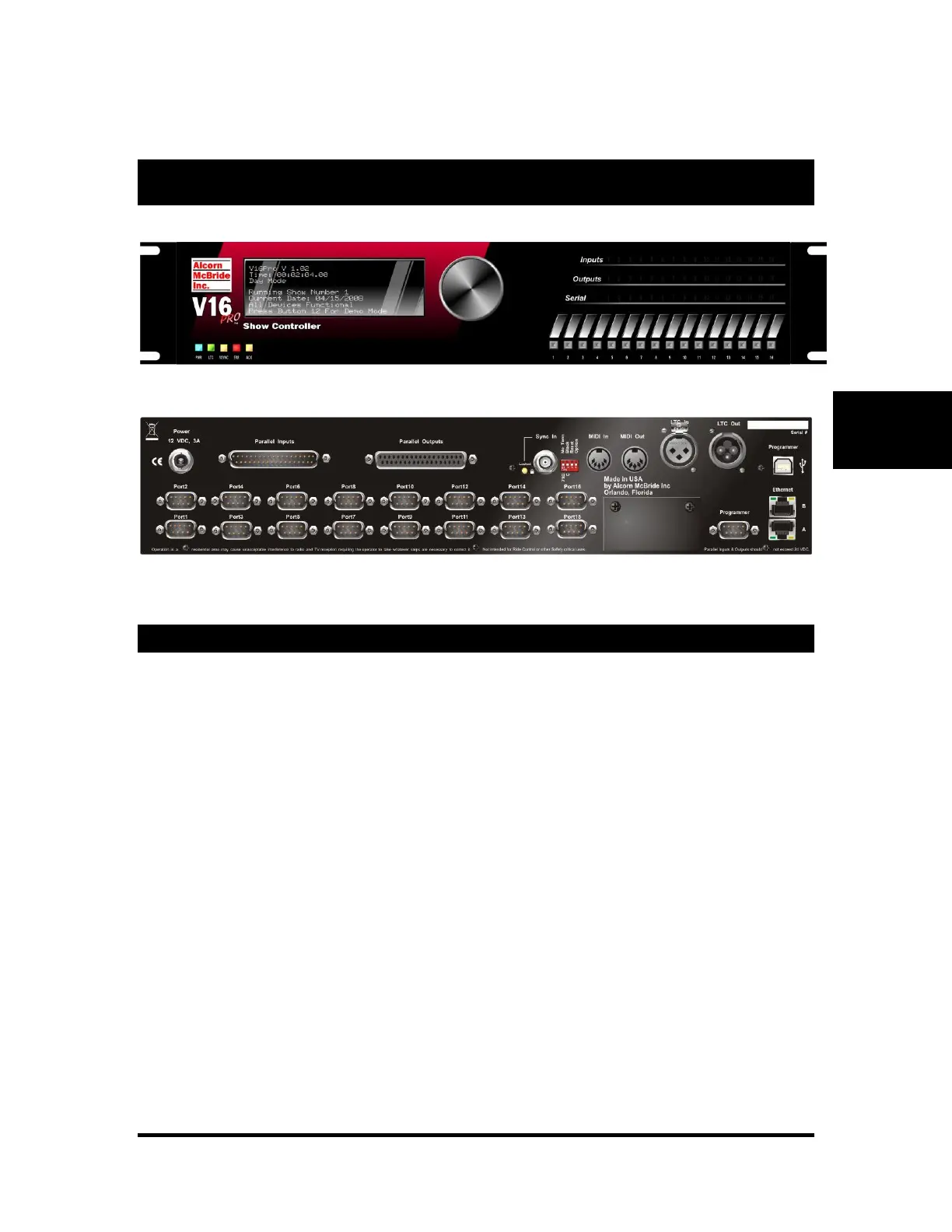

Figure 1- Front View
Figure 2 - Rear View
Specifications
Size and Weight:
Standard 2U rack mount (3.5" x 17" x 10.5"), 10 lbs
Power:
12 VDC at 3 amps. An external power supply is included
with the V16Pro and will provide the required input power.
The power supply is rating is 100 to 250 VAC, 50 to 60 Hz,
25-watts maximum. UL listed Class 2 power adapter
Environment:
0 to 38 C (32 to 100 F),
0 to 90% relative humidity, non-condensing
Front Panel:
8x40 VFD Display
Power LED
LTC (SMPTE) LED
Vsync LED
Error LED
Acknowledge (ACK) LED
16 Serial Activity LEDs
16 Input Status LEDs
16 Output Status LEDs
16 Pushbuttons
Rear Panel:
Programming Port DB-9M
16 Serial Ports DB-9M
MIDI Input 5-pin DIN Female
MIDI Output 5-pin DIN Female
Discrete Inputs DB-37M
