DXLink Twisted Pair 4K Input and Output Boards
128
Enova Digital Media Switchers - Hardware Reference Manual
NOTE: For systems with special requirements – Before installing in the final location, place the equipment close together, so
a PC for control and the destination monitor can be seen simultaneously if adjustments are necessary. Adjustments can
be made using the System Configuration interface (see page 184).
Functions of DXLink Transmitters and Receivers

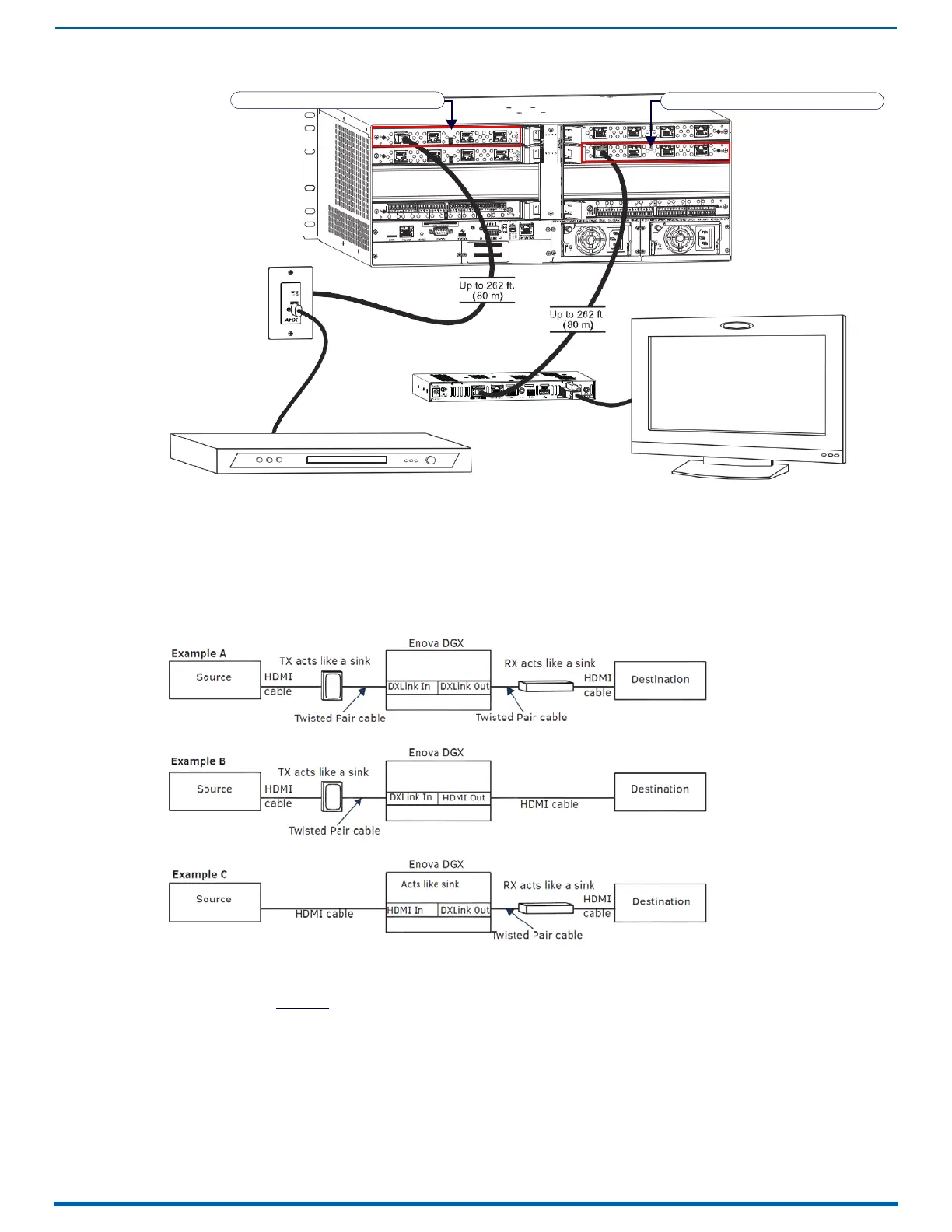

The diagram in FIG. 49 shows the functions of DXLink Transmitters and Receivers and the example descriptions contain the
device HDCP key count when used in conjunction with DXLink Boards in an Enova DGX Digital Media Switcher:
Important Power Considerations for Enova DGX 3200 Endpoint Systems
NOTE: This section does not apply to the Enova DGX 800/1600/6400 because the system is capable of providing power for
the maximum number of DXLink Transmitters and Receivers required when the enclosure contains all DXLink Twisted Pair
4K Input and Output boards.
In an endpoint system, the Enova DGX Switcher has DXLink Transmitters and/or Receivers attached. The Transmitters and
Receivers can be powered either locally, remotely, or via the switcher (the last two ways are considered DXLink power
since power is received via the DXLink line).
FIG. 48
DXLink Twisted Pair 4K Boards used in conjunction with DXLink TX and RX
FIG. 49 DXLink Twisted Pair 4K Boards used in conjunction with DXLink TX and RX
DXLink Twisted Pair 4K Input Board
DXLink Twisted Pair 4K Output Board
Source Device
Destination Device
4K HDMI
Wallplate TX
4K HDMI RX Module
