Front Panel
The front panel of DGX 3200 Enclosures features an LCD screen, Control Panel, Input and Output keys and Power Indicator
LED (FIG. 7):
Power Indicator LED Behavior
Green – both power supplies are powered on
Red – one of the power supplies is not receiving power or has failed
Off – neither power supply is receiving power
Rear Panel
FIG. 8 shows the rear panel of an DGX 3200 enclosure, fully loaded for 32x32 switching.:
Power Supplies (x2)
The ENC 3200 has two power supply units. Each of the power supply units has a power receptacle that will accept all
major international standard power sources. (US power cords are included with all enclosures shipped within the US.)
Maximum power specifications are provided on the power supply receptacles.

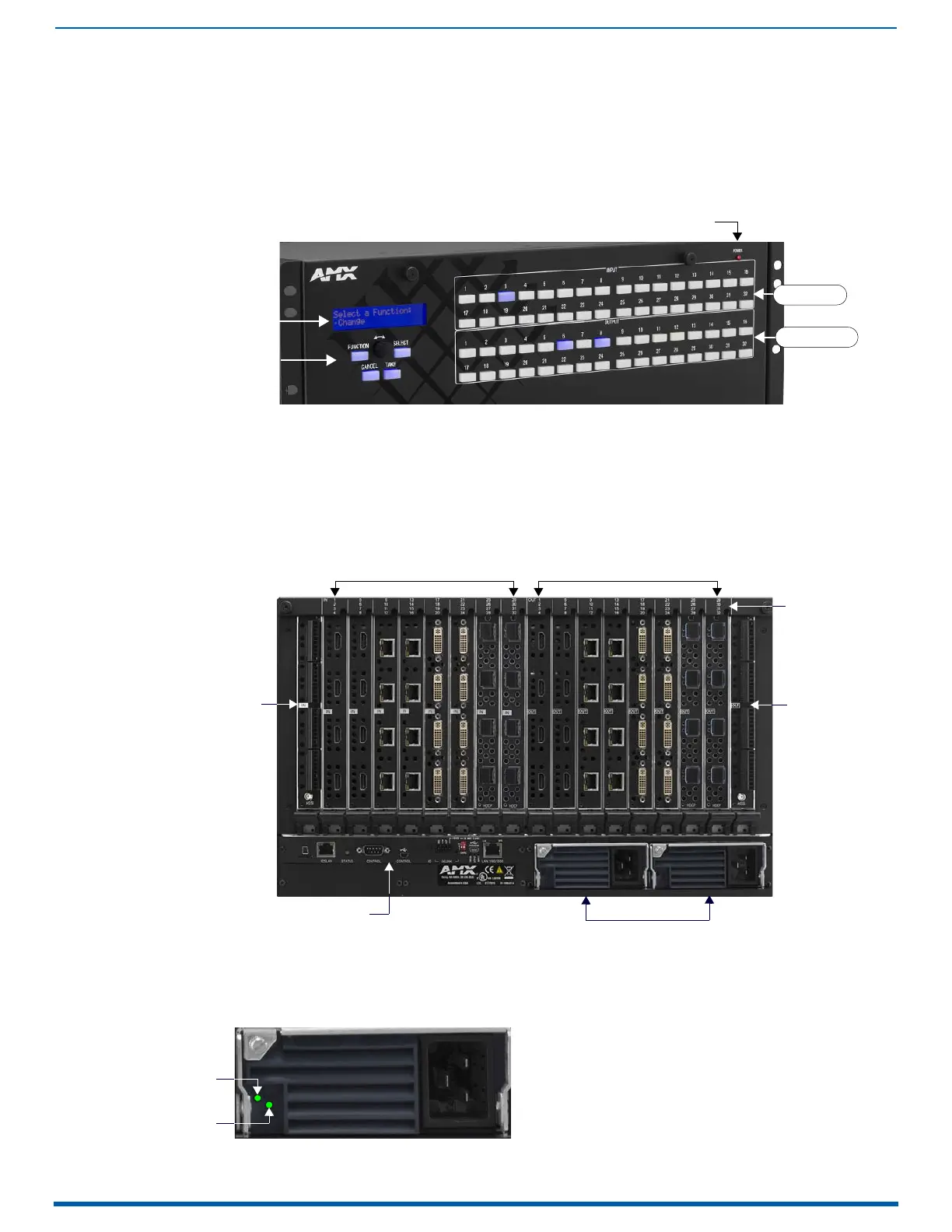

FIG. 7
DGX 3200 - Front Panel Components
FIG. 8 DGX 3200 - Rear Panel Components
FIG. 9 ENC 3200 Power Supply
LCD
Control Panel
Input keys
Output keys
Power Indicator LED
(Control keys/Dial)
Input board slots (x8)
Power supplies (x2)
CPU/Control board
Output board slots (x8)
Expansion slot
(with expansion
board installed)
Expansion slot
(with expansion
board installed)
Numbering plate
AC: Green light indicates power is good
DC: Green light indicates power is good
Amber light indicates temperature is above normal
Red light indicates that the power supply is in a fault state
AC LED
DC LED
