DGX 6400
41
Enova Digital Media Switchers - Hardware Reference Manual
DGX 6400
Front Panel
The front panel of DGX 6400 Enclosures features an LCD screen, Control Panel, Input and Output keys and Power Indicator
LED (FIG. 10):
Power Indicator LED Behavior
Green – all four power supplies are powered on
Constant Red – one of the power supplies is not receiving power or has failed
Flashing Red – two (or three) of the power supplies are not receiving power or have failed
Flashing Green – the system’s input/output boards are being upgraded (the LED’s response to power functions
supersedes the upgrade function).
Off – none of the power supplies is receiving power
NOTE: If two or more power supplies are not receiving power, the CPU and the control panel will continue to operate.
However, input and output boards will become inoperable and the system will not send or receive signals until at
least three power supplies resume functional status.

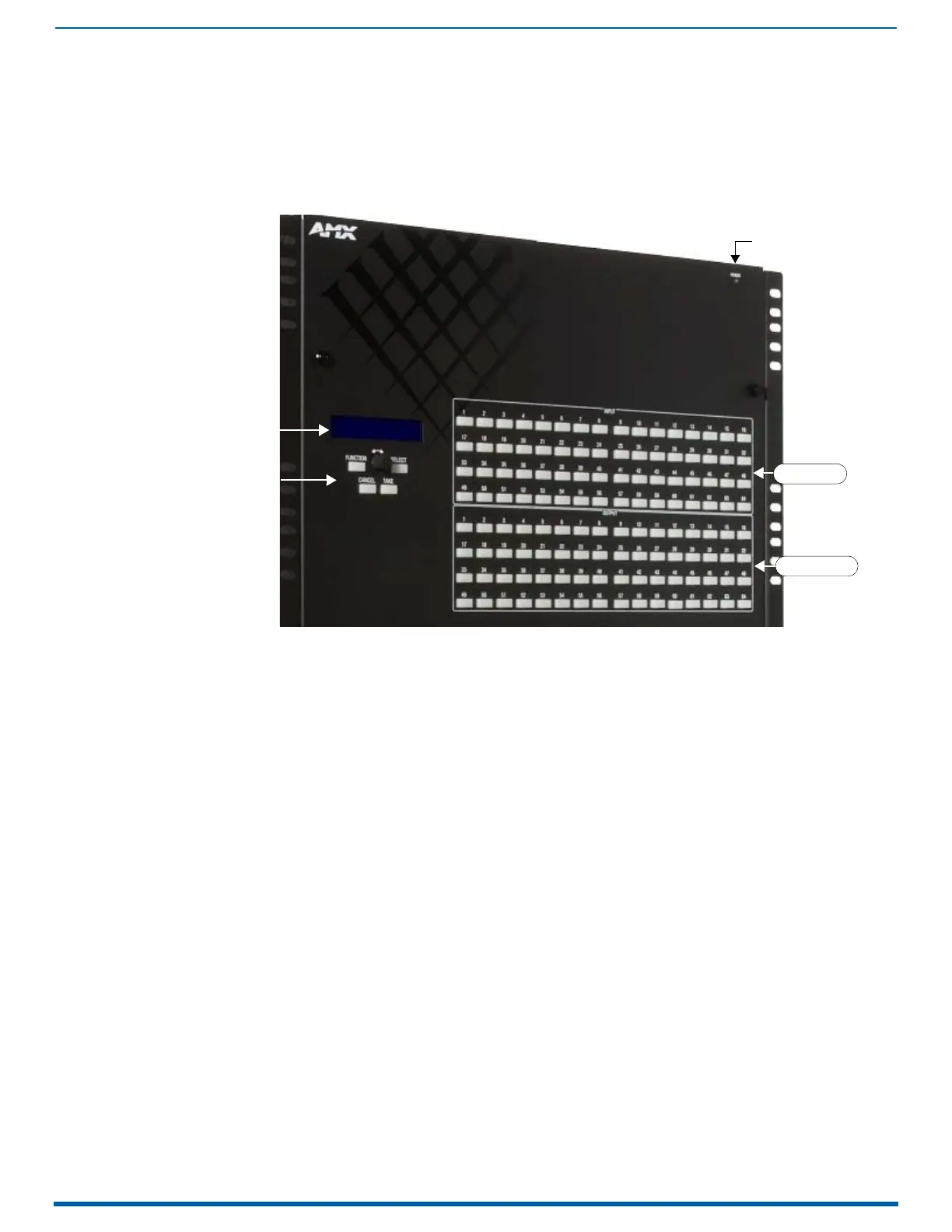

FIG. 10
DGX 6400 - Front Panel Components
LCD
Control Panel
Input keys
Output keys
Power Indicator LED
(Control keys/Dial)
